LATARY-EM

Emergency Light Max 30W IP65

LED OUTDOOR SURFACE MOUNTED DOWN LIGHT

Housing: Extrusion aluminium housing with corrosion -resistance powder coating and die-cast aluminium cover.
Anti-glare and high purity anodized aluminum reflector to distribute comfortable light
Ingress Protection: IP65 and Mech impact protection: IK08
LED module: high-power CREE LEDs Array, CRI>80, LM-80 performance approval >50,000 hours.
Integrated-Type ELV , 0-10V, DALI, LED constant current control gear.
2 hours or 3hours emergency backup with either Ni-MH battery or Ni-Cd battery
Provided with a LED for indication when battery charge is in process.
Tested in accordance with latest local requirement PPA/104(A) (4th Revision)

Technical Data

Luminaire Type-安裝方式-Tipo de luminaria

Surface Mounted Type 明裝式燈具 Superficie Tipo Montado
Dimension-尺寸-Dimensión

DIA: 90 x H: 110 mm DIA: 110 x H: 140 mm DIA: 135 x H: 170 mm
Input Voltage-輸入電壓-Voltaje de entrada

AC100-240V 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max

6W 9W 10W 12W 15W @ DIA: 90 x  H: 110 mm

15W 20W 24W @ DIA: 110 x  H: 140 mm

25W 28W 30W @ DIA: 135 x  H: 170 mm
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Constant Current LED Driver: Refer to LED driver specification 請參閱LED驅動器規格 Consulte la especificación de controlador de LED

1. ON/OFF Switch AC100-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0 -10V Dimming Driver AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. Remoted Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features

驅動特性

Funciones del controlador de LED

POWER FACTOR : PF>0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%

LIFE HOUR : 50,000 Hours
Control Protocol-控制協議

Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

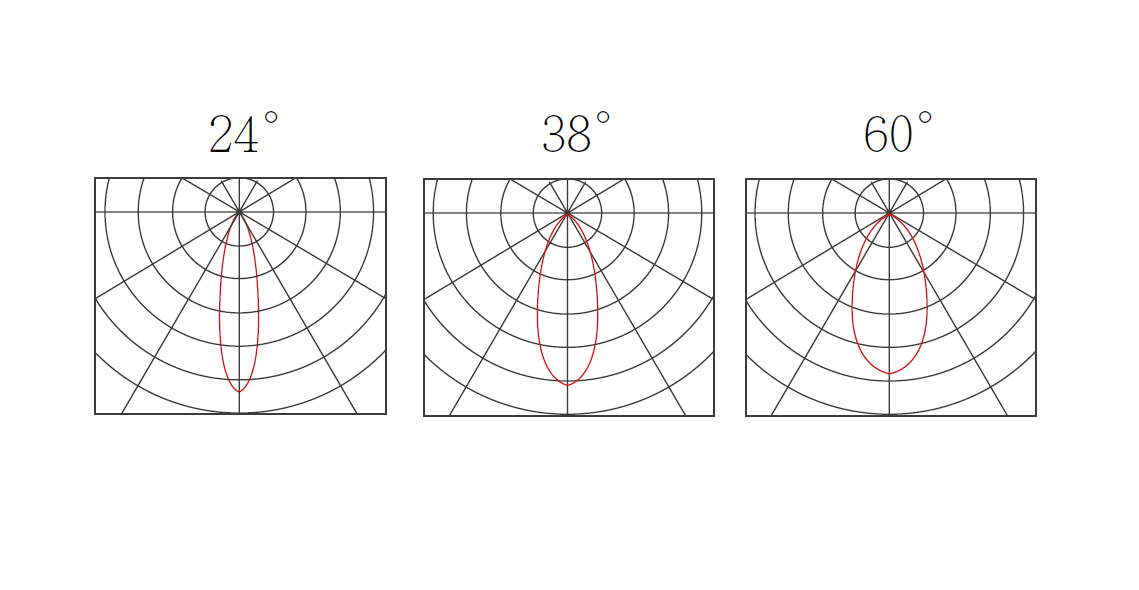

Beam Angle - symmetrical wide beam light distribution

光束角 - 對稱寬光束光分佈

Ángulo de haz - distribución de luz de haz amplio simétrico

24° 38° 60°
Light Source Brand-光源品牌-Fuente de luz de marca

U.S.A Bridgelux COB LED
Photobiological safety-EN 62471 / of Luminaire

光生物安全檢驗(EN 62471) 结果:

Seguridad fotobiológica-EN 62471

Low Risk Group 1 (RG1)

低風險組1（RG1）

Grupo de bajo riesgo 1 (RG1)
"Lumen Maintenance LM-80 Reported by TM-21"25°C

L90(10k) = 50,700 hrs L80(10k) > 63,500 hrs L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80

> 90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率

La eficacia de la luminaria

90 Lm/w(2700K), 90Lm/w(3000K), 100Lm/w(4000K),

110 Lm/w(5000K), 110 Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

120 Lm/w(2700K), 120Lm/w(3000K), 130Lm/w(4000K),

140 Lm/w(5000K), 140 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminum & Clear safety glass lampshade

壓鑄鋁和透明安全玻璃燈罩

Pantalla de aluminio fundido a presión y cristal de seguridad transparente
Housing Color

外殼顏色

color de la carcasa

Powder Coating : Matte White RAL 9003 or Matte Black RAL9005

粉末塗料：啞光白色燈身 RAL9003 或啞光黑色燈身RAL9005

Recubrimiento en polvo: blanco mate RAL 9003 / Matte black RAL9005
Reflector Color-反光杯顏色-Reflector color

Chrome Sliver 鉻銀 Cromo plata
Ingress Protection-防護等級

Protección de ingreso

IP65
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos

IK08
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires:LVD: EN 60598-1 / EN 60598-2-1/ IEC 62031 / EN 62471 IEC 60529 / IEC 62262 / RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015
