DEGSON-EM

Emergency LightMax 23W IP54
LED RECESSED DOWN LIGHT

LED RECESSED DOWN LIGHT. Housing: die-cast aluminium, powder-coated, designed as heatsink. Nano Coating reflector and diffusor system. LED module: SMD, CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV, 1-10V, DALI, DMX and RDM LED constant current control gear.\Materials is complied with Hot Wire Testing: 850°C

  • 2 hours or 3hours emergency backup with either Ni-MH battery or Ni-Cd battery
  • Provided with a LED for indication when battery charge is in process.
  • Tested in accordance with latest local requirement PPA/104(A) (4th Revision)



Technical Data

  • Luminaire Type-安裝方式 Tipo de luminaria

    Recessed Mount Type/嵌入式筒燈  Empotrada Tipo Mount

  • Dimension-尺寸-Dimensión / mm

    Cut off Dimension-開孔尺寸-Cortar Dimensión / mm

    Dia: 90 x H: 53     Cut off:  Dia 75               Dia: 108 x H: 65   Cut off:  Dia 90

    Dia: 138 x H: 59   Cut off: Dia 125              Dia: 165 x H: 59   Cut off: Dia 150

    Dia: 190 x H: 59   Cut off: Dia 170              Dia: 230 x H: 66   Cut off: Dia 210

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    5W     @ Dia: 90 mm

    8W     @ Dia: 90 mm       @ Dia: 108mm      @ Dia: 138 mm    @Dia: 165mm

    10W   @ Dia: 108mm      @ Dia: 138 mm     @Dia: 165mm

    12W   @ Dia: 138 mm     @Dia: 165mm       @ Dia: 190 mm

    15W   @Dia: 165mm       @ Dia: 190 mm     @ Dia: 230 mm

    18W   @ Dia: 190 mm     @ Dia: 230 mm

    23W   @ Dia: 230 mm

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Remote-type LED Driver--Constant Current LED Driver:

    Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC 220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0-10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. Zigbee Wireless Control Driver  AC100-270V 50/60HZ

    6. DMX Driver AC100-240V 50/60HZ

    7. RDM Driver  AC100-240V 50/60HZ

    8. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features  Constant Current LED Driver:

    驅動特性-恆流LED驅動器

    Funciones del controlador de LED

    POWER FACTOR : PF>0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

    LIFE HOUR : 50,000 Hours

  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

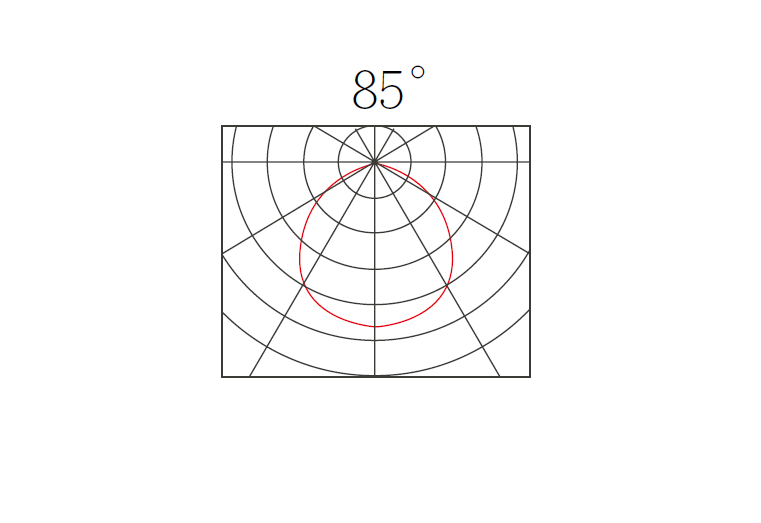

  • Beam Angle 光束角 /ángulo de haz

    85°

  • Light Source Brand-光源品牌-Fuente de luz de marca

    OSRAM -Replaceable LED Module ( IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"@ 25°C

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Photobiological safety-IEC 62471 /  of Luminaire

    光生物安全檢驗(IEC/EN 62471) 结果:

    Seguridad fotobiológica-IEC 62471

    Exempt

    豁免(無危險)

    Eximir

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6000K/ 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 90

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy 燈具效率

    La eficacia de la luminaria

    105Lm/w(2700K),    105 Lm/w(3000K),    110 Lm/w(4000K),

    120Lm/w(5000K),    120 Lm/w(6000K),    120Lm/w(6500K),

  • LED Source Luminous Efficacy  LED光源光效

    Fuente luminosa LED Eficacia

    120 Lm/w(2700K),    120 Lm/w(3000K),    130 Lm/w(4000K),

    140 Lm/w(5000K),    140 Lm/w(6000K),    140 Lm/w(6500K),

  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum Body and Trim with Frosted or Opal  Polycarbonate (PC) Diffuser

    壓鑄鋁,磨砂,或乳白（PC）擴散罩

    Die Cuerpo de aluminio fundido y corte con esmerilado o difusor de policarbonato opal (PC

  • Housing Color

    外殼顏色

    Color de la carcasa

    Anodised Aluminium and Nano Coating reflector

    陽極氧化鋁和納米塗層反射器

    Reflector anodizado de aluminio y nano recubrimiento.

  • Trim Color-框邊顏色-Estilo Color

    Matte white or Matte Black

    啞光白色或啞光黑色

    Blanco mate o Negro Mate

  • Ingress Protection-防護等級

    Protección de ingreso

    IP54 - (IEC 60529)

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C  To +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Hot Wire Testing: 850°C

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
DEGSON-18W
DEGSON-EM
-
Power Consumption

Power Consumption

  • 5W
    5W @ Dia 90 mm
  • 8W
    8W @ Dia 90 mm or Dia 108mm or Dia 138mm or Dia 165mm
  • 10W
    10W @Dia 108mm or Dia 138mm or Dia 165mm
  • 12W
    12W @ Dia: 138 mm or Dia: 165mm or Dia: 190 mm
  • 15W
    15W @ Dia 165mm or Dia 190mm or Dia 230mm
  • 18W
    18W @ Dia 190mm or Dia 230mm
  • 23W
    23W@ Dia 230mm

Technical Drawing
