DALI 20W

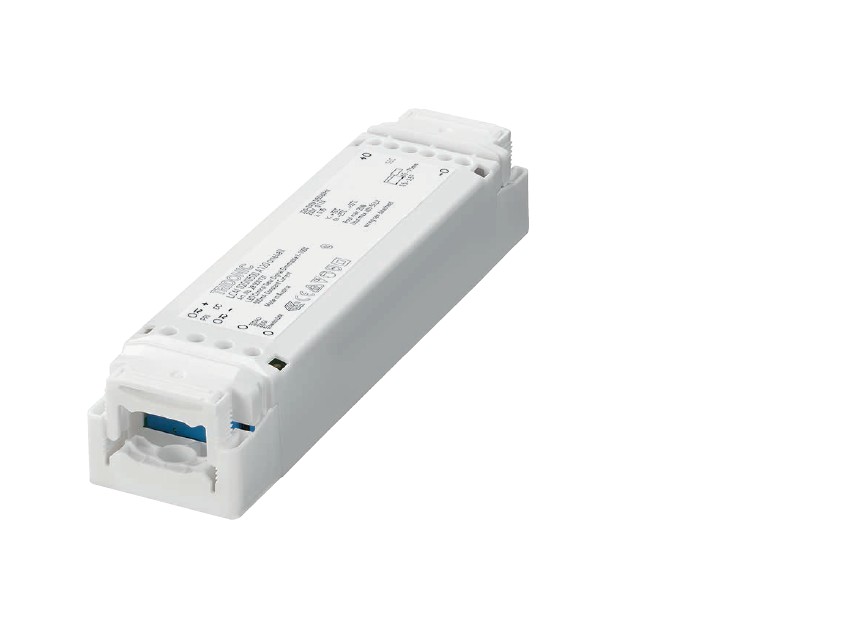

Driver LCAI 20 W 500 mA one4all
TRIDONIC DALI
Driver LCAI 20 W 500 mA one4all
  1. Constant current LED Driver
  2. 1 addressable output channel
  3. 500 mA PWM output signal
  4. Short-circuit protection with automatic restart
  5. No-load safe with automatic restart
  6. Intelligent Temperature Guard (overtemperature protection)
  7. Connecting cable, wire cross-section 0.5 – 2.5 mm²
  8. Power input on stand-by < 1 W
  9. Output power 20 W
  10. Strain relief
  11. Plastic casing white

Technical Data

  • Properties

    • Dimming range 1 to 100 %
    • Dimming curve adapted to the sensitivity of the eye
    • Noise-free precise control via DALI, DSI signal or switchDIM
    • switchDIM (with memory function)
    • corridorFUNCTION
    • Powerless switching via a digital interface (no need for switching via mains)
    • Fault reporting and programmable operating parameters in DALI mode
    • SELV

  • Certification-認證-Certificación-شهادة
