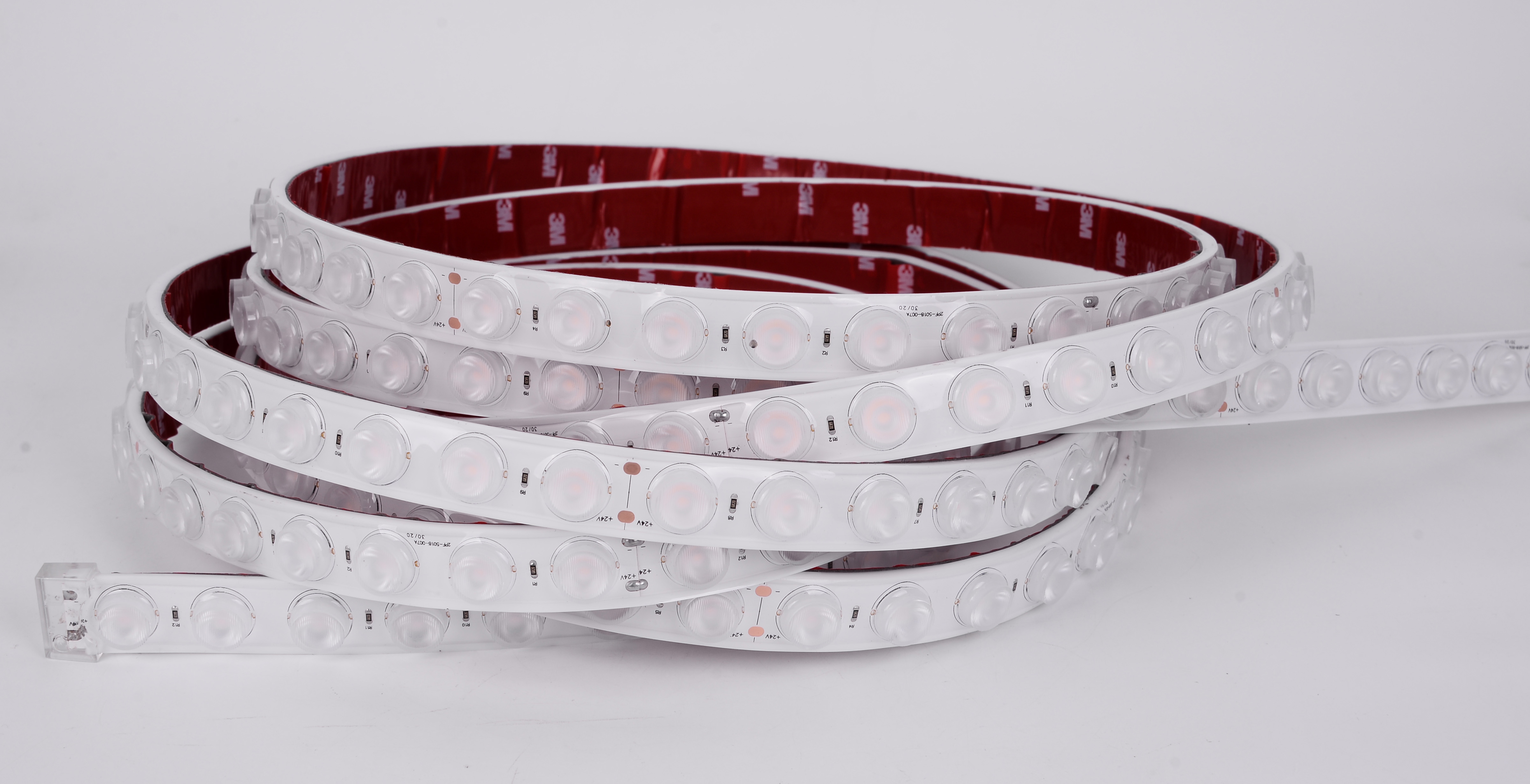

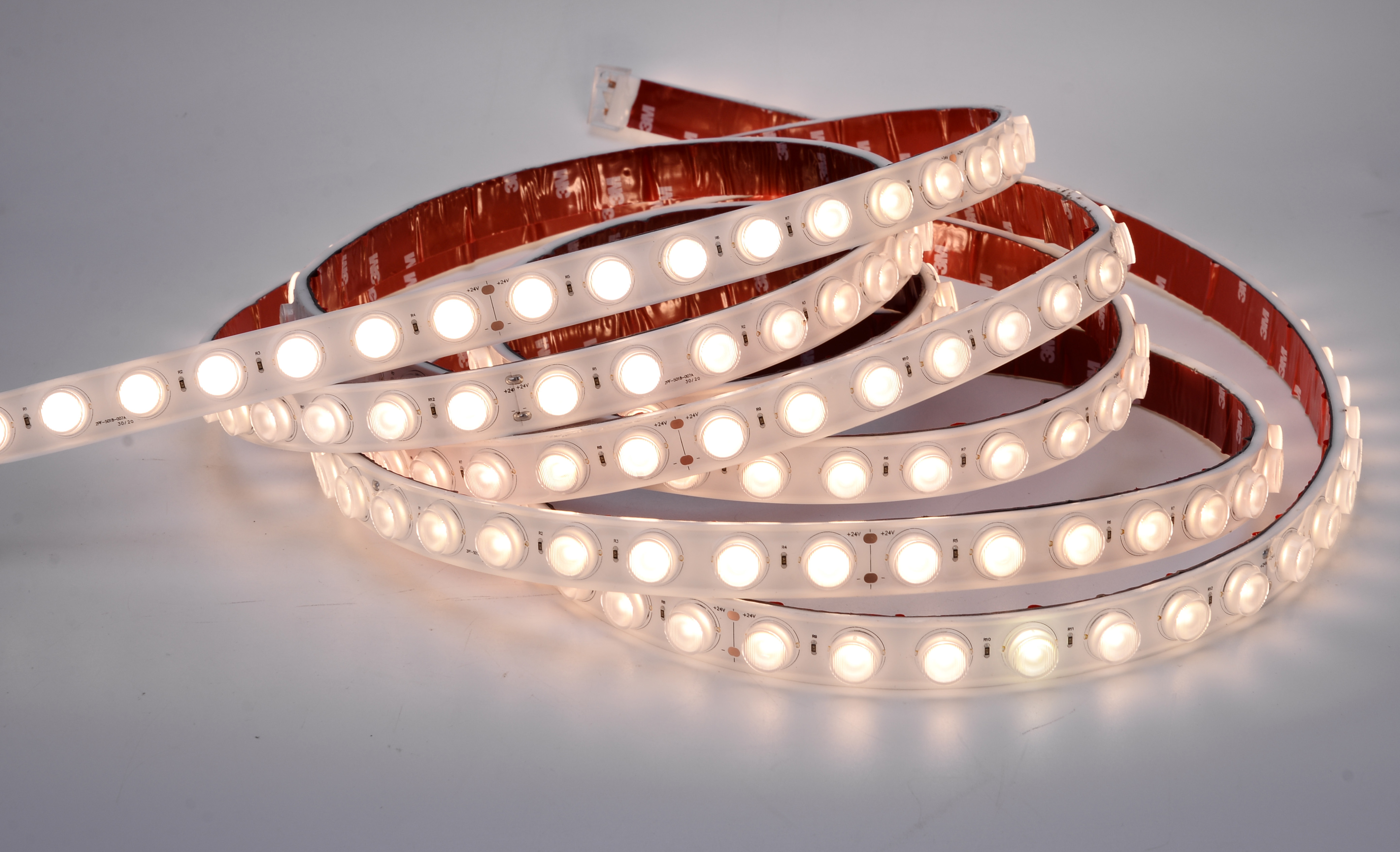

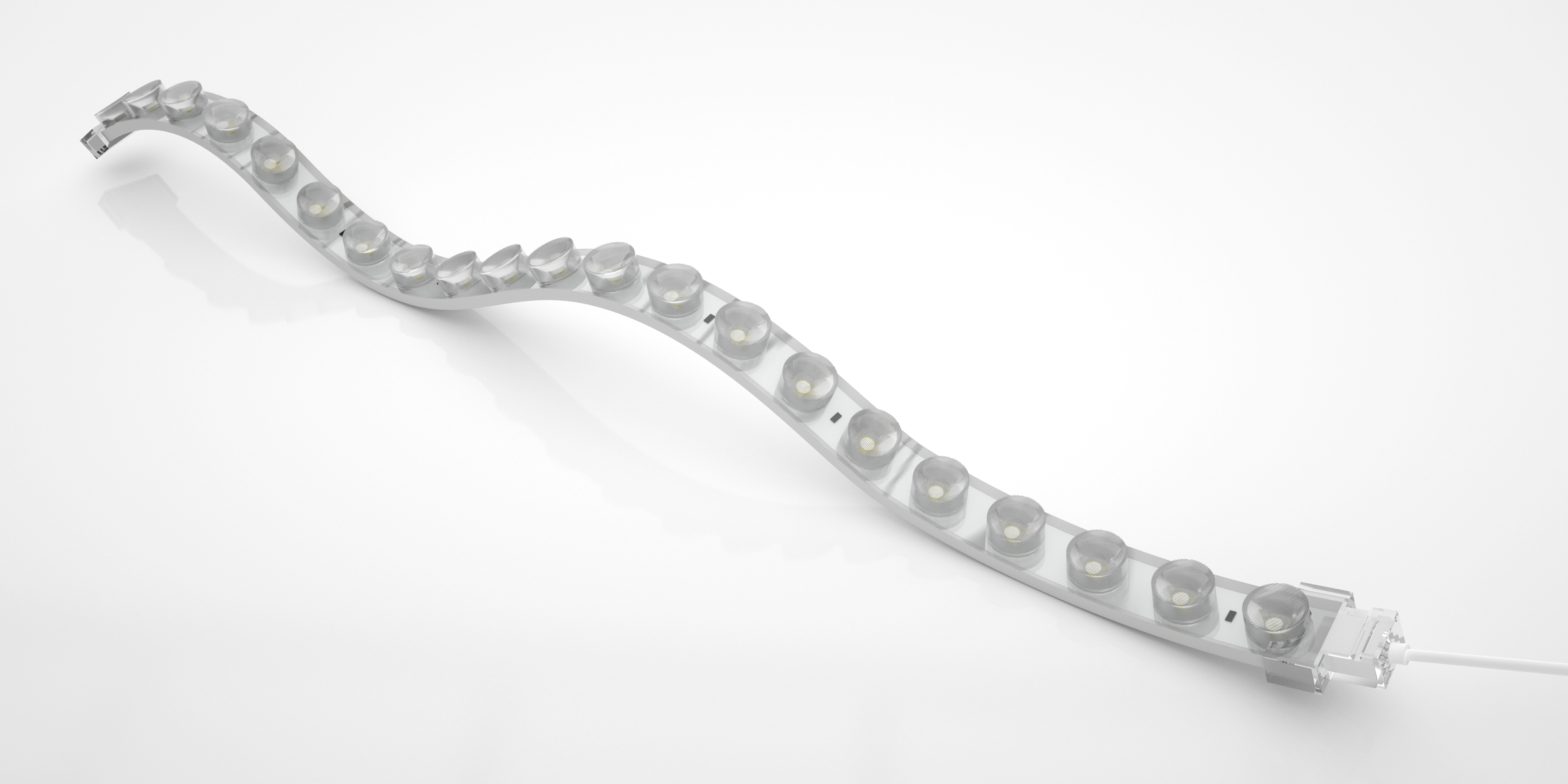

STRADY

15W/M IP67

LED STRIP LIGHT

High light transmittance PC material, uniform luminescence, no macular, no light attenuation within 3m of wall washing height.It can achieve the traditional LED light strip to achieve the wall washing effect, and can also be used for home lighting and curved surface lighting.UV resistant PVC and PC materials, PC lens and PU glue package, durable and reliable.Diversified installation methods: back glue, aluminum profile, mounting clip.Distance from Wall for 4-10CM,Optimal wall washing height is 1m -1.5m. Ingress Protection: IP67.

Technical Data

Luminaire Type-安裝方式Tipo de luminaria

Surface Mounted Type 明裝式燈具 Superficie Tipo Montado

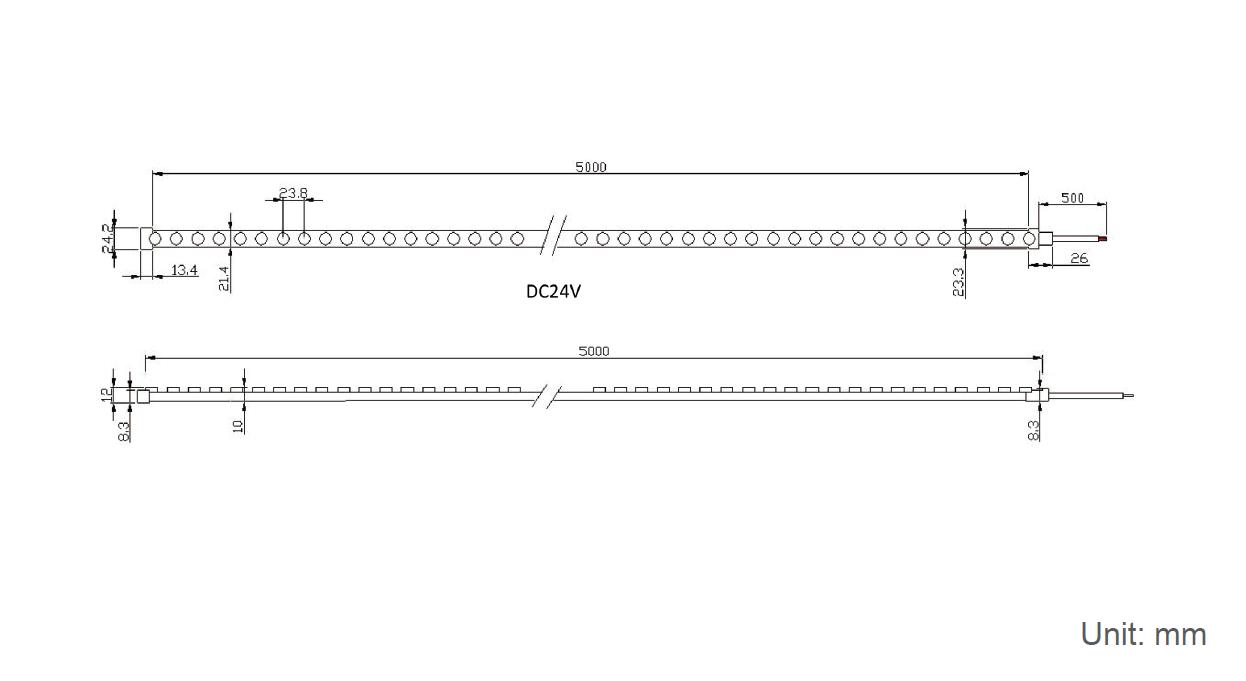

Dimension-尺寸-Dimensión

W: 24.2 x H: 12 mm @ Length Per Roll: 5M
QTY of LEDs-燈珠數量-CANT de LEDs

And Cutting Length 切割長度Y longitud de corte

42 pcs/m
Power Consumption Max / Meter-燈具功率/米

Consumo de energía Max/ Meter

15w/m
Input Voltage-輸入電壓-Voltaje de entrada

DC24 V
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC100-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ (Dimming range from 0-100%)

6. RDM Driver  AC100-240V 50/60HZ
Control Protocol-控制協議

Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

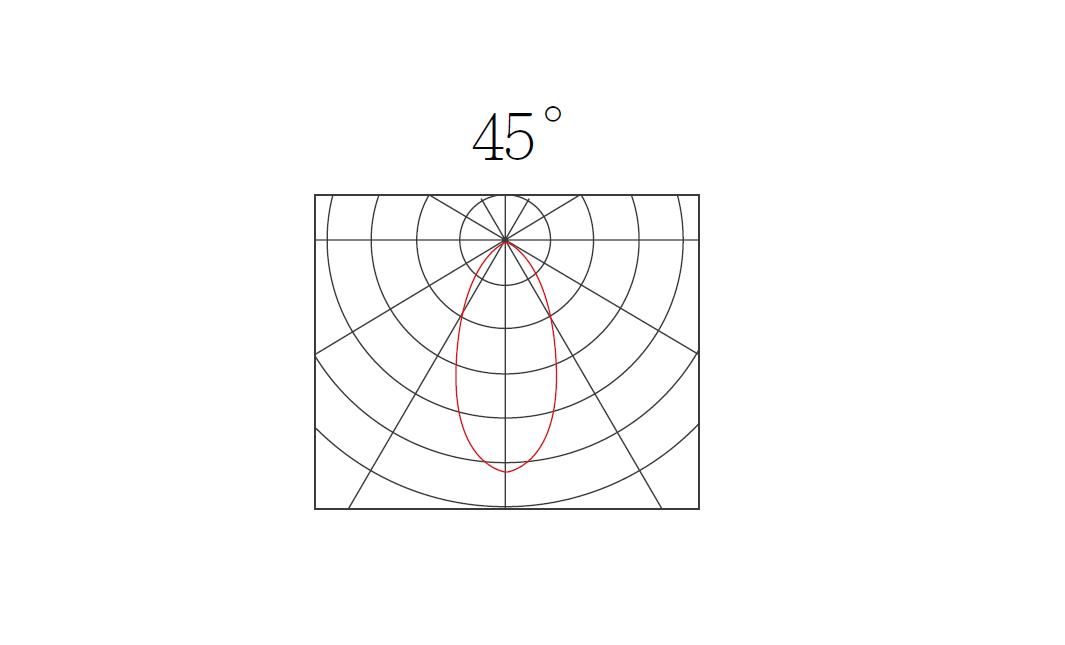

Beam Angle 光束角 ángulo de haz

45°
Light Source Brand-光源品牌-Fuente de luz de marca

CREE
"Lumen Maintenance LM-80 Reported by TM-21" @ Ta 50 °C

L70(10k) > 60,000 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80 > 90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率

La eficacia de la luminaria
- 90 Lm/w(2700K), 90 Lm/w(3000K), 95 Lm/w(4000K),
- 100 Lm/w(5000K), 100 Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia
- 120 Lm/w(2700K), 120 Lm/w(3000K), 140Lm/w(4000K),
- 150 Lm/w(5000K), 150 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Polyurethane (PU) Glue and PC lens PU膠和PC透鏡

Pegamento de poliuretano (PU) y lentes de PC
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Ingress Protection-防護等級

Protección de ingreso

IP67
Package Dimension -包裝尺寸

Dimensión del paquete

5M / Roll
Environment-使用環境-medio ambiente

Outdoor
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-1/ IEC 62471 / IEC 62493 / IEC 62031/ TM21 / ROHS

LED Driver: EN 55015 / IEC 61000-3-2 /IEC 61347-1 /IEC 61347-2-13/IEC 61547
