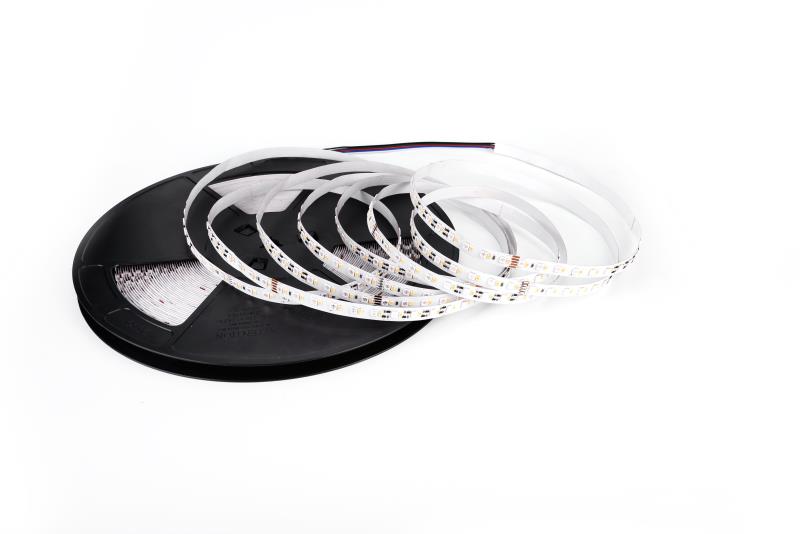

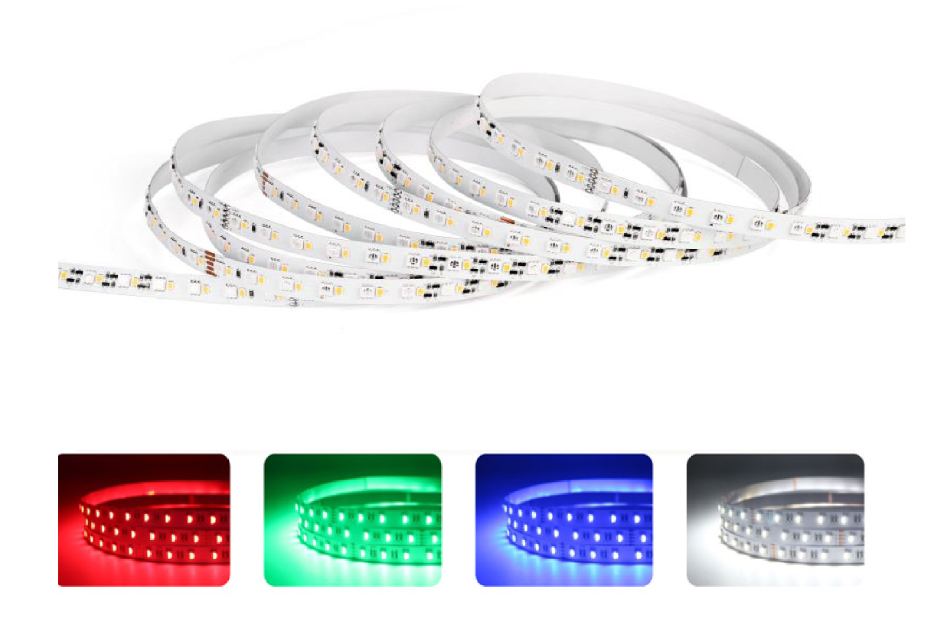

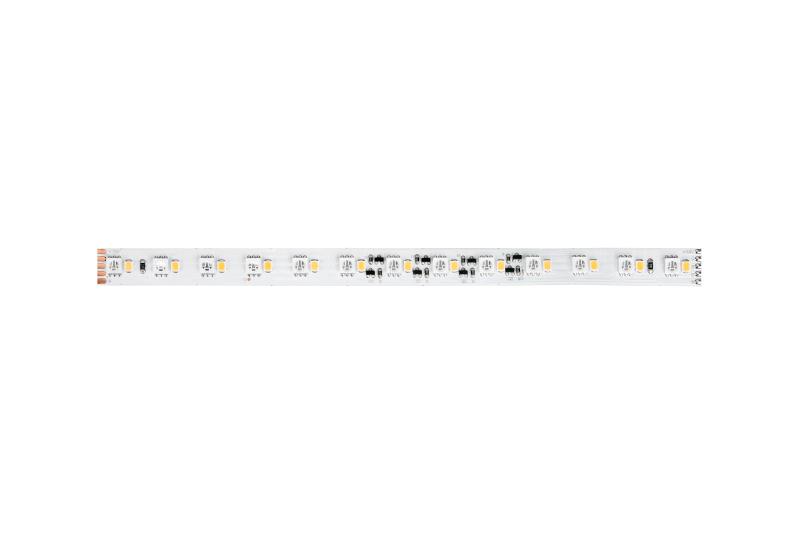

LED STRIP LIGHT. Same brightness from head to the end for the whole 30M strip, with single driver run. Longer length, brighter light, lower heat.high quality white and RGB full changing light, freely to change the atmosphere of space.Leds works in constant current environment, longer life span.More color available, by using with specialized RGBW controller.Tc point added, working temperature can be monitored.
STRAWO
Technical Data
-
Luminaire Type/ 安裝方式
Tipo de luminaria
Surface Mounted Type
明裝式燈具
Superficie Tipo Montado
-
Color -顏色-Color
RGB / RGBO(2700K) / RGBW(3000K) / RGBN(4000K) / RGBD(6500K)
-
Power Consumption Max
燈具最大功率
Consumo de energía Max
- 8W @ RGB
- 11W @ RGBO(2700K) / RGBW(3000K) / RGBN(4000K) / RGBD(6500K)
-
Input Voltage / 輸入電壓
Voltaje de entrada
DC48V
-
Control Protocol-控制協議
Protocolo de Control
DMX 512 Remote Type DMX Driver -4 Channel Constant Voltage DMX512 & RDM Decoder
-
Length – smallest unit
長度 - 最小單位
unidad más pequeña
200mm
-

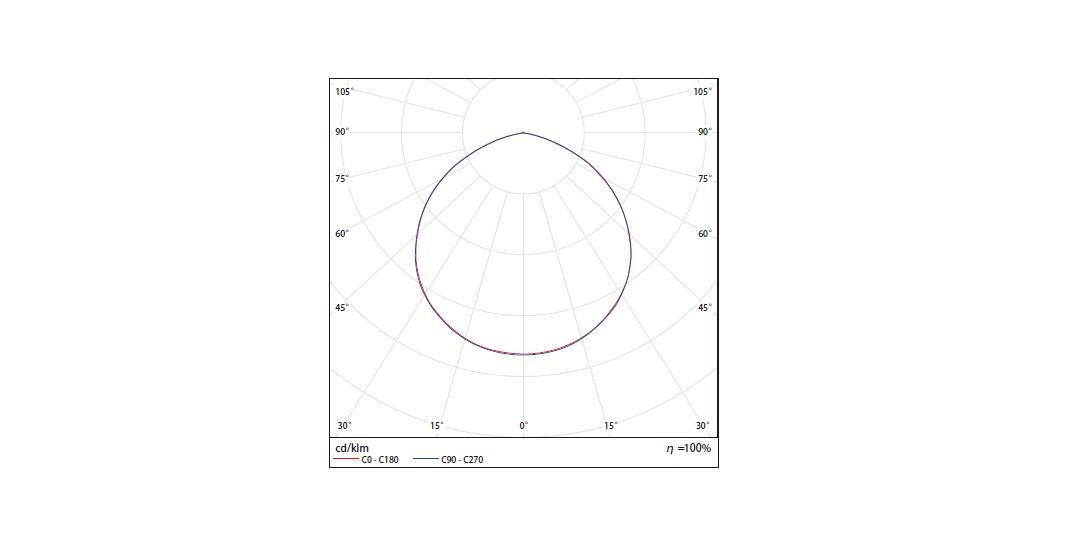

Beam Angle/光束角
ángulo de haz
120°
-
Light Source Brand/光源品牌
Fuente de luz de marca
EPISTAR - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
-
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM
標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
-
Luminaire Efficacy-燈具效率
La eficacia de la luminaria
- 40 Lm/w (RGB@Full Load)
- 50 Lm/w (RGBO, RGBW, RGBN, RGBD@Full Load)
-
LED Source Luminous Efficacy-LED光源光效
Fuente luminosa LED Eficacia
- 60Lm/w (RGB@Full Load)
- 80 Lm/w (RGBO, RGBW, RGBN, RGBD@Full Load)
-
Color Rendering Index-顯色指數
Índice de reproducción cromática
- > 80 @ White Color Only
- > 90 @ White Color Only
-
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-20 °C / +50 °C
-
LED Life/LED壽命
La vida del LED
>50,000 hours
-
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
-
Ingress Protection/ 防護等級
Protección de ingreso
- IP20
- IP65
- IP67
-

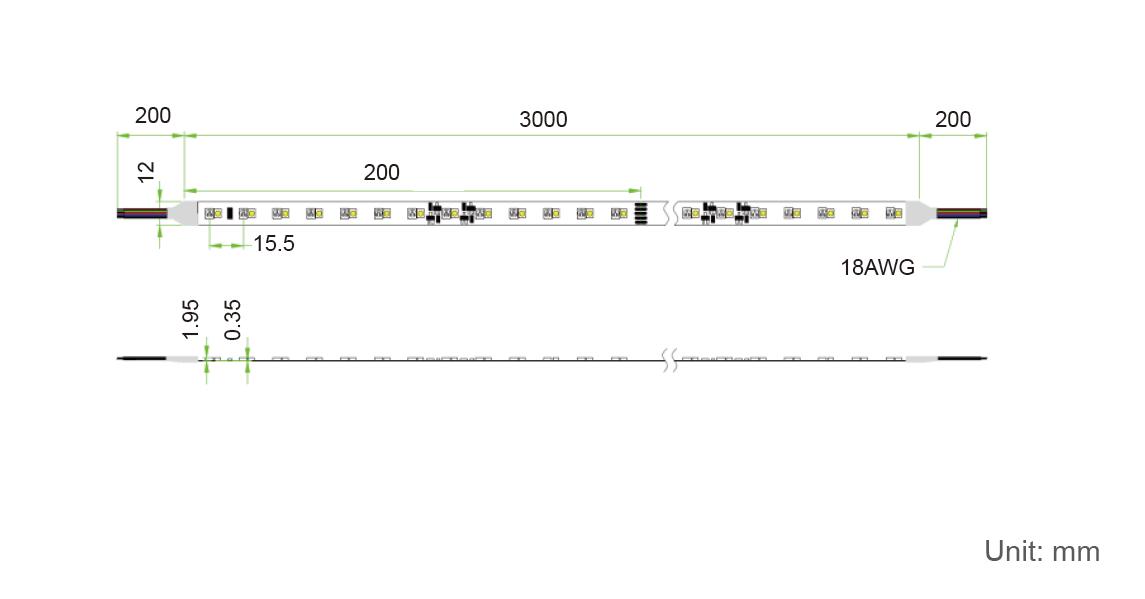

Dimension/尺寸Dimensión
W: 12 x H: 2 mm
-
Package Dimension -包裝尺寸
Dimensión del paquete
30m Max. / Roll
-
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaires: IEC 60598-1 / IEC 60598-2-3 / Photometric data-IES format
LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 6 / IEC 61547
Specification Code
Power Consumption
-
8W8W/M Max @ RGB
-
11W11W/M Max @ RGBO(2700K) / RGBW(3000K) / RGBN(4000K) / RGBD(6500K)
