LNOVO

18W-72W H:11mm EU UGR<19 IP20

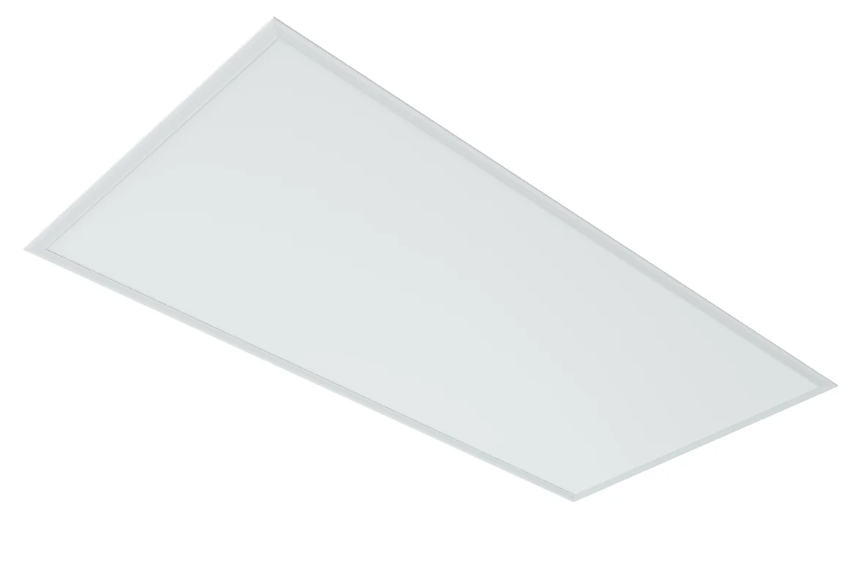

Recessed & Surface & Suspended LED Panel Light
  • Recessed or surface mounted Diffused LED Luminaire with High Uniformity
  • Microprismatic system to Low glare (UGR<19).
  • White Painted Aluminium frame with reflective sheet (PET) and Opa Plate diffuser.

Technical Data

  • Luminaire Type-安裝方式

    Tipo de luminaria

    Recessed & Surface & Suspended  Mounted嵌入式, 明裝或吊裝

    Empotrado y superficie y suspendido montado

  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    • 18W@    L: 295mm  x W: 295mm                26W@    L: 595mm  x W: 295mm
    • 28W@    L: 595mm  x W: 595mm                36W@    L: 595mm  x W: 595mm
    • 48W@    L: 595mm  x W: 1195mm              60W@    L: 595mm  x W: 1195mm
    • 70W@    L: 595mm  x W: 1195mm
  • Input Voltage / 輸入電壓Voltaje de entrada

    220-240V/AC 50/60Hz (with remote driver)

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Remote-type LED Driver--Constant Current LED Driver

    Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch AC220-240V 50/60HZ

    2. 1-10V Dimming Driver AC220-240V 50/60HZ

    3. Dali Dimming 1-100%  Driver AC220-240V 50/60HZ

  • LED Driver Features  Constant Current LED Driver:

    驅動特性-恆流LED驅動器

    Funciones del controlador de LED

    • POWER FACTOR : PF>0.95
    • TOTAL HARMONIC DISTORTION: THD< 20%
    • Refer to LED Driver data sheet
  • Control Protocol/控制協議/Protocolo de Control

    • 1-10V / Dali / Dali2
  • Light Source Brand-光源品牌-Fuente de luz de marca

    SMD 4014 LED

  • "Lumen Maintenance LM-80 Reported by TM-21"@ 25°C

    L70 > 60,000 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫Temperatura del color

    3000K / 4000K / 5000K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    >80

    >90

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Beam Angle光束角ángulo de haz

    110 °

  • Luminaire Efficacy燈具效率

    La eficacia de la luminaria

    • 100 Lm/w(3000K)          120 Lm/w(4000K)      120 Lm/w(5000K)
  • LED Source Luminous EfficacyLED光源光效

    Fuente luminosa LED Eficacia

    • 140 Lm/w(3000K)          160 Lm/w(4000K)          160 Lm/w(5000K)
  • Housing materials

    外殼材料

    Materiales de la carcasa

    Aluminum Alloy Trim  and Opal Polycarbonate diffuser

    鋁合金框片和乳白PC擴散器 PMMA(導光板)

    Embellecedor de aleación de aluminio y difusor de policarbonato opalino

  • Housing Color

    外殼顏色

    color de la carcasa

    White (RAL9016 )Painted Aluminium frame and Opal  Acrylic  Diffuser

    白色(RAL9016 )鋁框和 亞克力擴散板

    Marco de aluminio pintado blanco (RAL9016) y difusor acrílico opalino

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +50 °C

  • Operating Humidity /工作濕度/Humedad de funcionamiento

    0~90%, non-condensing-不結霜sin condensación

  • Dimension尺寸

    Dimensión

    • • L: 295mm x W: 295mm x H: 11 mm ( H: 39mm with Remoted LED Driver ) / 1.0kg
      • L: 595mm x W: 295mm x H: 11 mm ( H: 39mm with Remoted LED Driver ) / 1.6kg
      • L: 595mm x W: 595mm x H: 11 mm( H: 39mm with Remoted LED Driver ) / 2.9kg
      • L: 1195mm x W: 295mm x H: 11  mm( H: 39mm with Remoted LED Driver ) / 2.9kg
      • L: 1195mm x W: 595mm x H: 11 mm ( H: 39mm with Remoted LED Driver ) / 5.6 kg
  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaries:  LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471 (Risk Group 1)

    LED Driver:           IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

                                 IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
LNOVO-60W-N-R
LNOVO
-
POWER CONSUMPTION
-
LED DRIVER TYPE
-
COLOR TEMPERATURE
-
FIXRURE MOUNTING TYPE

POWER CONSUMPTION

  • 18W
    18W@L:295mm x W:295mm
  • 26W
    26W@L: 595mm x W:295mm
  • 36W
    36W@L: 595mm x W:595mm
  • 48W
    48W@ L:595mm x W:1195mm
  • 60W
    60W@ L:595mm x W:1195mm
  • 72W
    72W@ L:595mm x W:1195mm

LED DRIVER TYPE

  • DA
    DALI Dimming
  • ZI
    ON/OFF Switch
  • AN
    Analog 0 -10V Dimming
  • EM
    Emergency Battery Back Up 2 hour or 3 hours

COLOR TEMPERATURE

  • D
    5000K
  • W
    3000K
  • N
    4000K

FIXRURE MOUNTING TYPE

  • R
    Recessed Mounted Type
  • S
    Surface Mounted Type
  • P
    Pendant Mounted Type
