SQ250 & 300 mm 8.5W

LED DMX PIXEL PANEL

This LED DMX Panel is designed for lighting box,backlight and so on。
Used Top Brand Glue for better heatconduction, strong temperature withstand and perfect waterproof performance
Apply solid capacitor and other good brand components on PCB for long life time.
With wide voltage range design,LED color always keep same brightness after long distance power supply.
Standard DMX512 control protocol(Max 44frames/second).
Lightning and ESD Protection
Electrical Protections: short circuit, over current, over voltage and over temperature.

Technical Data

Leds Matrix in LED DMX Panel

LED DMX面板中的LED矩陣

Matriz de Leds en Panel LED DMX
- 16 pixels = 4*4 Leds Matrix
- 36 pixels = 6*6 Leds Matrix
Luminance Pitch 燈珠間距

Paso de luminancia
- 62.5mm 16 pixels = 4*4 Leds Matrix @250*250mm
- 41.6mm 36 pixels = 6*6 Leds Matrix@250*250mm
- 50 mm 36 pixels = 6*6 Leds Matrix@300*300mm
Color -顏色-Color
- RGBW ( 3000K / 4000K / 5000K / 6500K)
Color Range

RGBW顏色範圍

Gama de colores

16.7 Million additive RGB colors and White LED

1670萬RGB顏色配合白光LED

16.7 Millones de colores aditivos RGB; LED blanco
RGBW Color Resolution with Gamma correction

RGBW顏色經過伽馬校正的分辨率

Resolución de color RGB W con la corrección de gamma

4 x 16-bit gray scale control and Gamma correction, supports up to 65,536 gray scales for color depths

4 x 16位灰度控制，支持高達65,536個灰度級的顏色深度

4 x control de escala de grises de 16 bits, soporta hasta 65.536 escalas de gris para profundidades de color
Pixels & DMX Channels像素和DMX 通道

Píxeles y canales DMX
- 16 Pixels = 64 DMX Channels
- 36 Pixels = 144 DMX Channels
Power Consumption Max 燈具最大功率

Consumo de energía Max
- 7.5W 16 pixels = 4*4 Leds Matrix @250mm x 250mm
- 10 W 36 pixels = 6*6 Leds Matrix@250mm x 250mm or 300mm x 300mm
Control Protocol-控制協議

Protocolo de Control

DMX 512 / RDM
Input Voltage / 輸入電壓

Voltaje de entrada

DC24V

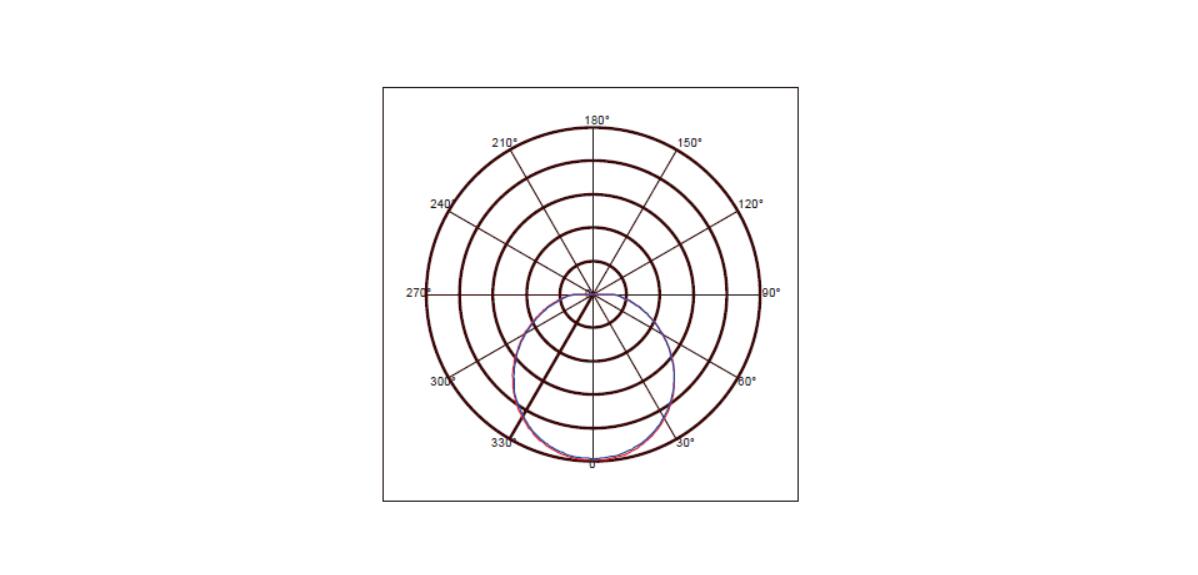

Beam Angle/光束角ángulo de haz

120°
Light Source Brand/光源品牌

Fuente de luz de marca

OSRAM or Taiwan Epistar
LED Life/LED壽命

La vida del LED

>50,000 hours
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy-燈具效率

La eficacia de la luminaria
- 65 Lm/w @ RGBW @ Full Load
Luminance
- 400 cd/sq .m (nits) @ 16 pixels
- 600 cd/sq .m (nits) @ 36 pixels
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80 @ MONO
Housing materials/外殼材料

Materiales de la carcasa

Aluminium PCB 鋁合金 PCB PCB de aluminio
Housing Color/ 燈體顏色 / Color de la carcasa
- White 白色 Blanco Black黑色Negro
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Ingress Protection/ 防護等級

Protección de ingreso

IP20
Dimension/尺寸 Dimensión
- W: 250 x L: 250 mm x H: 12mm
- W: 300 x L: 300 mm x H: 12mm
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: EN 60598-2-1:1989; EN 60598-1:2015+A1:2018; EN 62471:2008; EN 62493:2015; EN 62031:2008+A1:2013+A2:2015; EN55015 ; EN61547

RoHS Directive 2011/65/EU
