WEC

L190 x H:80 x W:115mm

Surface Mounted Wall Light Type

Housing: die-cast aluminium, powder-coated, designed as heat sink and stainless steel recessed housing. Anti-glare reflector and diffusor system made of Clear tempered glass. LED module: SMD LEDS CRI>80 LM-80 performance approve >50,000 hours.Well balance light distribution and optimum lighting quality. Applications:schools,public buildings ,etc.It’s as well a great alternative to urban furniture due to its IP65 protection rating.

Technical Data

Luminaire Type-安裝方式Tipo de luminaria

Recessed Wall Light Type嵌入式燈具Tipo de Recessed
Dimension-尺寸-Dimensión

L190 x H:80 x W:115mm (Not including recessed housing)
Power Consumption Max-燈具功率

Consumo de energía Max
- 8W
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60Hz
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格
1. ON/OFF Switch AC100-240V 50/60HZ
2. 1 -10V Dimming Driver AC100-240V 50/60HZ
3. Dali Dimming Driver AC100-240V 50/60HZ
Power Factor / 功率因數/Factor de potencia
PF>0.9
Total Harmonic Distortion/總諧波失/Distorsión armónica total
THD<20%
Control Protocol-控制協議
Protocolo de Control
1-10V / Dali
Light Source Brand-光源品牌-Fuente de luz de marca

LG
"Lumen Maintenance LM-80 Reported by TM-21"

L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>50,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K/ 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SCDM

標準偏差配色< 3 SCDM

Coincidencia de color estándar Desviación

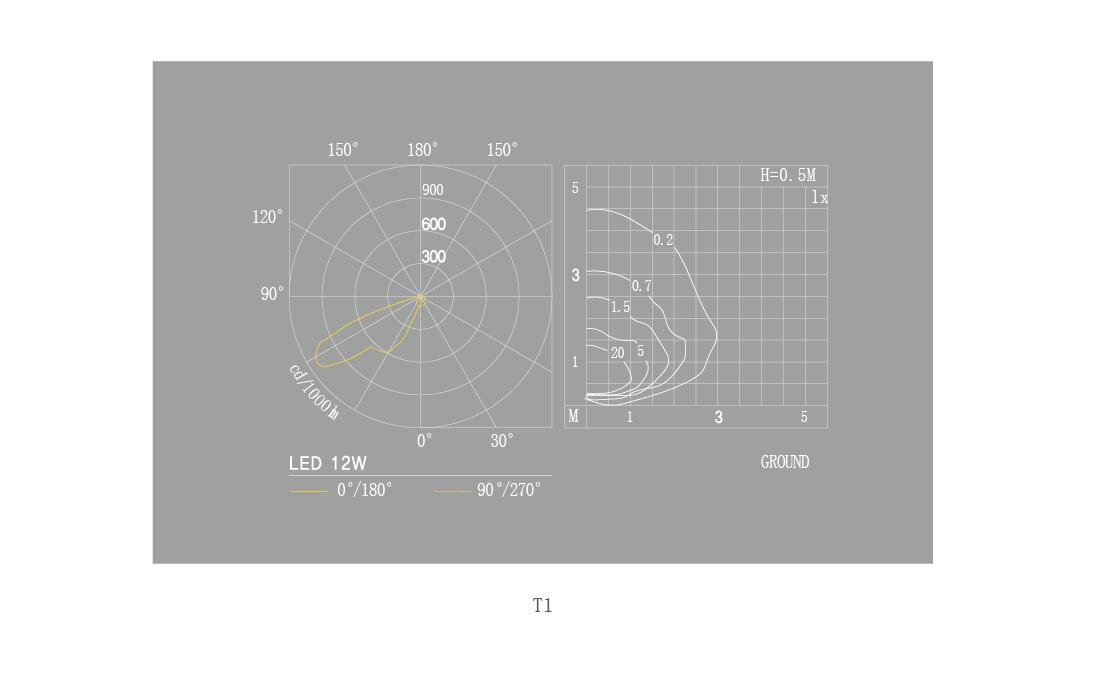

Beam Angle光束角ángulo de haz

Asymmetric Angle
Luminaire Efficacy燈具效率La eficacia de la luminaria
- 45lm/w(2700K), 50lm/w(3000K), 60lm/w(4000K),
- 70lm/w(5000K), 70lm/w(6500K)
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia
- 100lm/w(2700K), 100lm/w(3000K), 105m/w(4000K),
- 120lm/w(5000K), 120lm/w(6500K)
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminum\ stainless steel recessed housing and clear tempered glass

壓鑄鋁\不鏽鋼預埋件和透明鋼化玻璃

Aluminio fundido a presión\ Carcasa de acero inoxidable empotrado y claro vidrio templado
Housing Color外殼顏色

color de la carcasa

Powder Coating :Dark Gray Cover--粉末塗料：深灰面蓋--Recubrimiento en Polvo: Cubierta gris oscuro
Ingress Protection-防護等級

Protección de ingreso

IP65
Net Weight 淨重Peso Neto

0.8kg
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +60 °C / -4 °F / +124 °F
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Country of Origin 生產國家 País de origen

SOUTH KOREA 韓國 COREA DEL SUR
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-2;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471 (Risk Group 1)
• LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;
• IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
