DYMAX

SQ104~213mm 28W Max

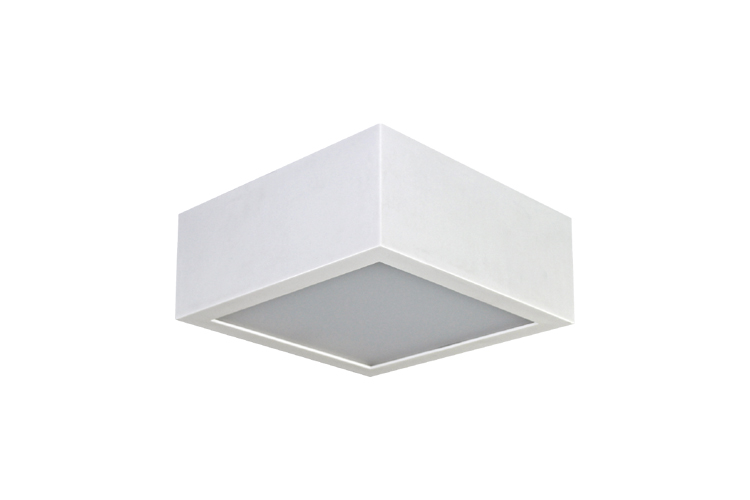

LED CEILING LIGHT

LED CEILING LIGHT. Housing: vandal resistant Polycarbonate in opal diffuser. LED module: LM-80 performance approval >50,000 hours. Integrated-Type ELV, 0-10V, DALI, DMX and RDM LED constant current control gear.Applications: carpark, hotels, restaurants, schools, dormitory, supermarkets, shopping malls, commercial buildings.

Technical Data

Luminaire Type-安裝方式Tipo de luminaria

Ceiling Mount Type吸頂安裝Tipo mount en el techo

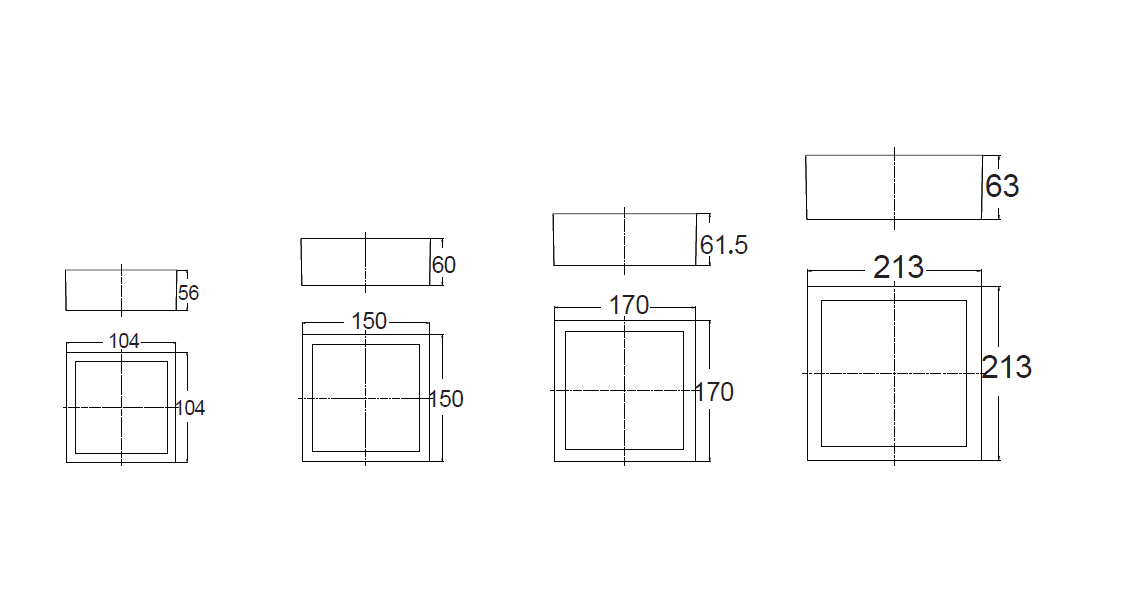

Dimension-尺寸-Dimensión
- W: 104 x L: 104 x H: 56 mm W: 150 x L: 150 x H: 60 mm
- W: 170 x L: 170 x H: 61.5 mm W: 213 x L: 213 x H: 63 mm
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60Hz
Power Consumption Max-燈具功率

Consumo de energía Max
- 9W @ L:104 x W:104 mm
- 11W @ L:104 x W:104 mm
- 15W @ L:150 x W:150 mm @ L:170 x W:170 mm
- 18W @ L:150 x W:150 mm @ L:170 x W:170 mm
- 23W @ L:213 x W:213 mm
- 28W @ L:213 x W:213 mm
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver --Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC220-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ

6. RDM Driver  AC100-240V 50/60HZ

7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features驅動特性

Funciones del controlador de LED

POWER FACTOR : PF>0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議

Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

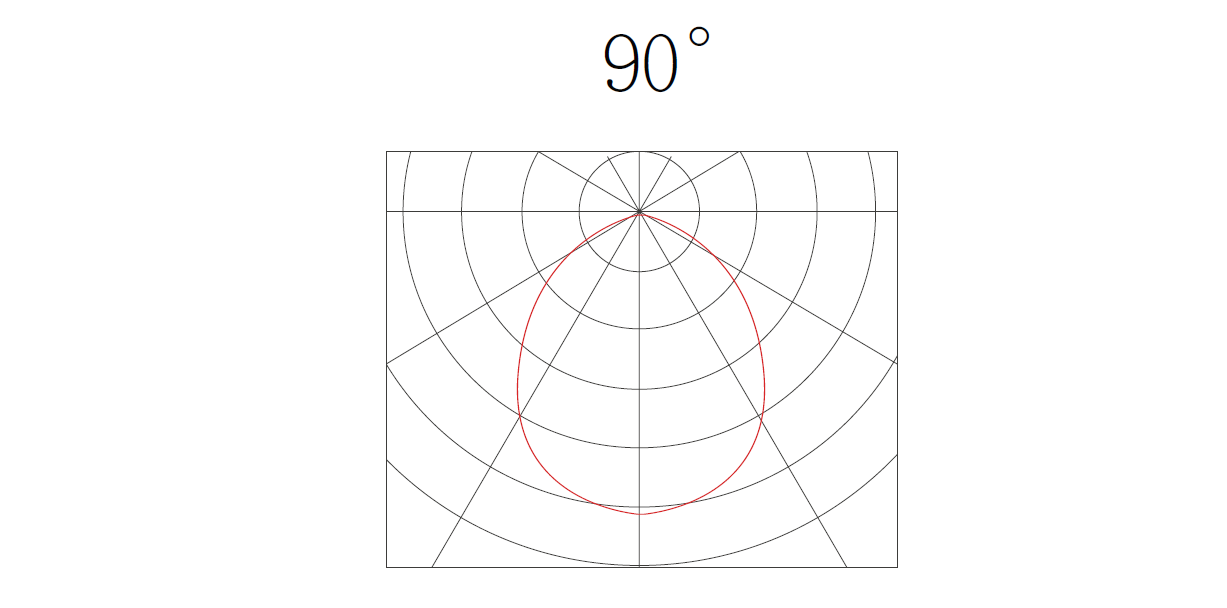

Beam Angle光束角-ángulo de haz

90°
Light Source Brand-光源品牌-Fuente de luz de marca

SAMSUNG ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
Lumen Maintenance LM-80 Reported by TM-21"@ 25°C
- L80(10k) > 54,000 hrs
- L70(10k) > 60,000 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Photobiological safety-IEC 62471 / of Luminaire

光生物安全檢驗(ICE/EN 62471) 结果:

Seguridad fotobiológica-IEC 62471
- Exempt ( Risk Group 0; RG0)
- 豁免(無危險)
- Eximir
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática
- > 80
- > 90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率

La eficacia de la luminaria
- 95 Lm/w(2700K), 95 Lm/w(3000K), 105 Lm/w(4000K),
- 110 Lm/w(5000K), 110 Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia
- 135 Lm/w(2700K), 135 Lm/w(3000K), 145 Lm/w(4000K),
- 150 Lm/w(5000K), 150 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminium and Opal Polycarbonate Diffuser

壓鑄鋁和乳白PC擴散器

Difusor de aluminio fundido a presión y policarbonato opal
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Ingress Protection-防護等級

Protección de ingreso

IP20 - (IEC 60529)
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC/EN60598-1 ; EN60598-2-1 ;IEC/EN 62031 ;IEC/EN 62493;IEC TR62778 ; IEC62471; RoHS

LED Driver: EN 55015 / EN 61000-3-2 / EN 61347-1 / EN 61347-2-13 / EN 61547 / EN 62384
