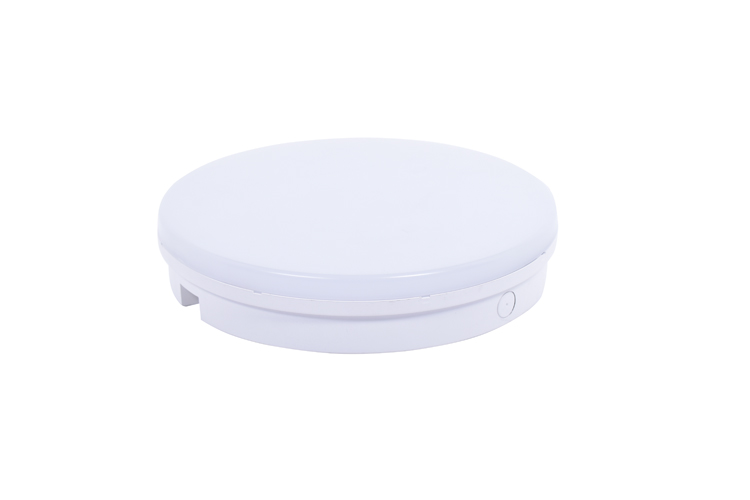

LED CEILING LIGHT. Anti-glare reflector and diffusor system made of PC. LED module: Sumsung LEDs, CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV, 0-10V, DALI, DMX and RDM LED constant current control gear.Applications: carpark, hotels, restaurants, schools, dormitory, supermarkets, shopping malls, commercial buildings.
Luminaire Type-安裝方式-Tipo de luminaria

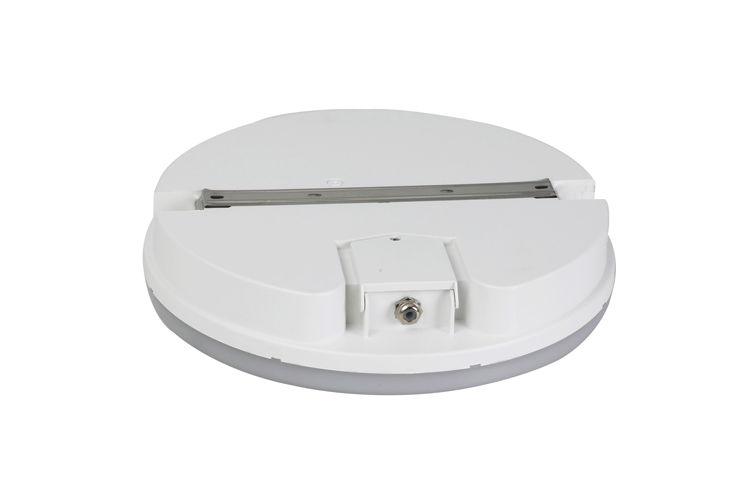

Ceiling Mount Type-吸頂安裝-Tipo mount en el techo

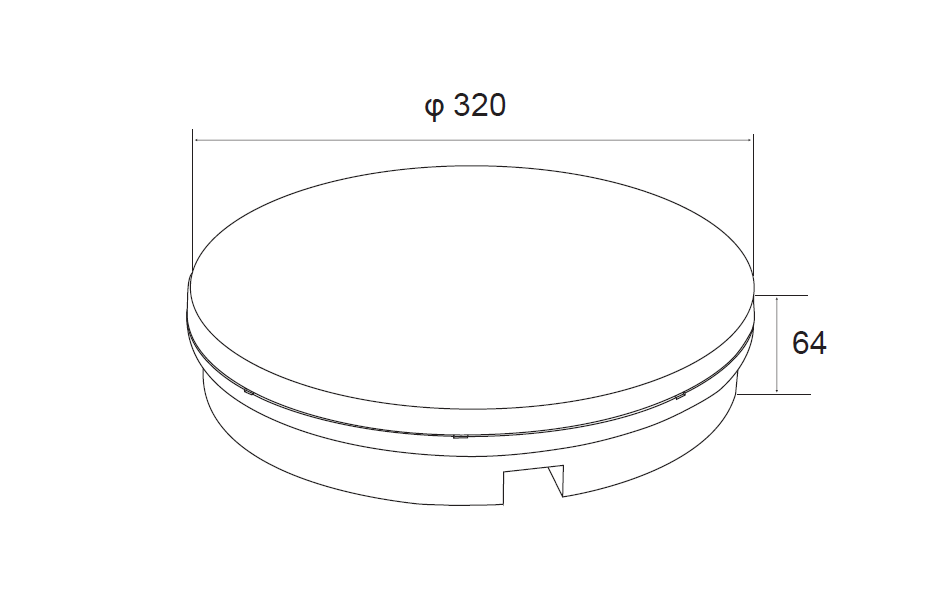

Dimension-尺寸-Dimensión
Dia 320 x H: 64 mm
Power Consumption Max-燈具功率
Consumo de energía Max
15W 18W 20W 25W 28W 30W
Input Voltage-輸入電壓-Voltaje de entrada
AC220-240V 50/60Hz
LED Driver Type
LED驅動款式
Tipo de controlador LED
Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC100-240V 50/60HZ
2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ
3. 0 -10V Dimming Driver AC100-240V 50/60HZ
4. Dali Dimming Driver AC100-240V 50/60HZ
LED Driver Features驅動特性
Funciones del controlador de LED
POWER FACTOR : PF>0.92 @ Full Load
TOTAL HARMONIC DISTORTION: THD< 15%
Control Protocol-控制協議
Protocolo de Control
1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

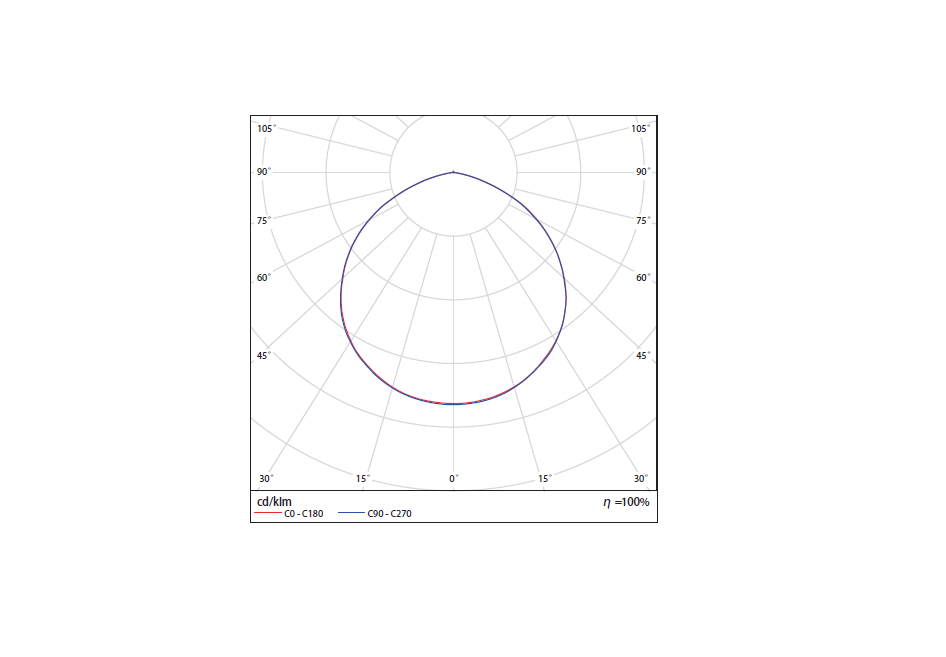

Beam Angle光束角ángulo de haz
110°
Light Source Brand-光源品牌-Fuente de luz de marca
CREE- ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"
L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED
>60,000 hours
Color Temperature -色溫
Temperatura del color
2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數
Índice de reproducción cromática
> 83
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SCDM
標準偏差配色< 3 SCDM
Coincidencia de color estándar Desviación
Luminaire Efficacy 燈具效率
La eficacia de la luminaria
LED Source Luminous Efficacy LED光源光效
Fuente luminosa LED Eficacia
Housing materials-外殼材料
Materiales de la carcasa
Anti UV Polycarbonate Opal diffuser抗紫外线PC 擴散罩
Difusor Opal de policarbonato anti U
Housing Color 外殼顏色 color de la carcasa
Milky white乳白色Blanco lechoso
Mech impact protection 機械衝擊保護
Protección contra impactos mecánicos
IK08
Ingress Protection-防護等級
Protección de ingreso
IP65
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-30 °C / +50 °C
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaires: EN 60598-1 / IEC 60598-2-1 IEC TR62778 IEC62471 ; IEC 62031; EN62493 RoHS
LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;
IEC/EN 61000-3-3;IEC/EN61574;EN 55015
