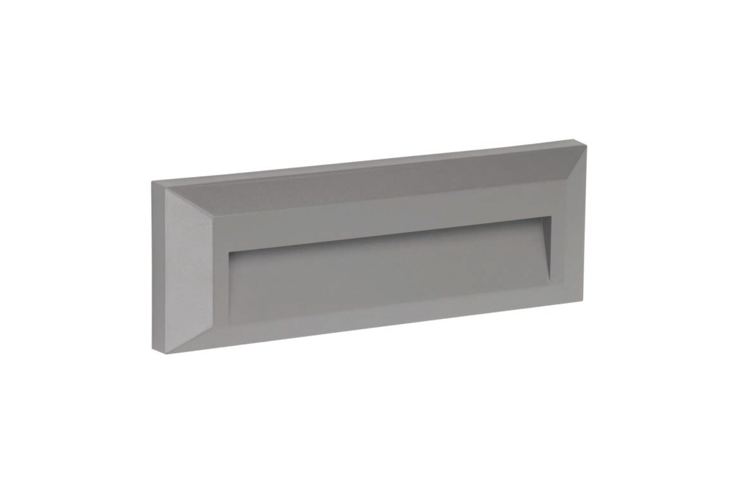

WARTY

W80xL230xD27mm 3.5W Max IP65

ARCHITECTURAL WALL LIGHT

ARCHITECTURAL WALL LIGHT. Housing: ABS and polycarbonate.. LED module: CRI>80, LM-80 performance approval >50,000 hours. Applications: carpark, hotels, restaurants, schools, dormitory, supermarkets, shopping malls, commercial buildings.

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Wall Mounted Type-壁裝-Tipo montado en la pared

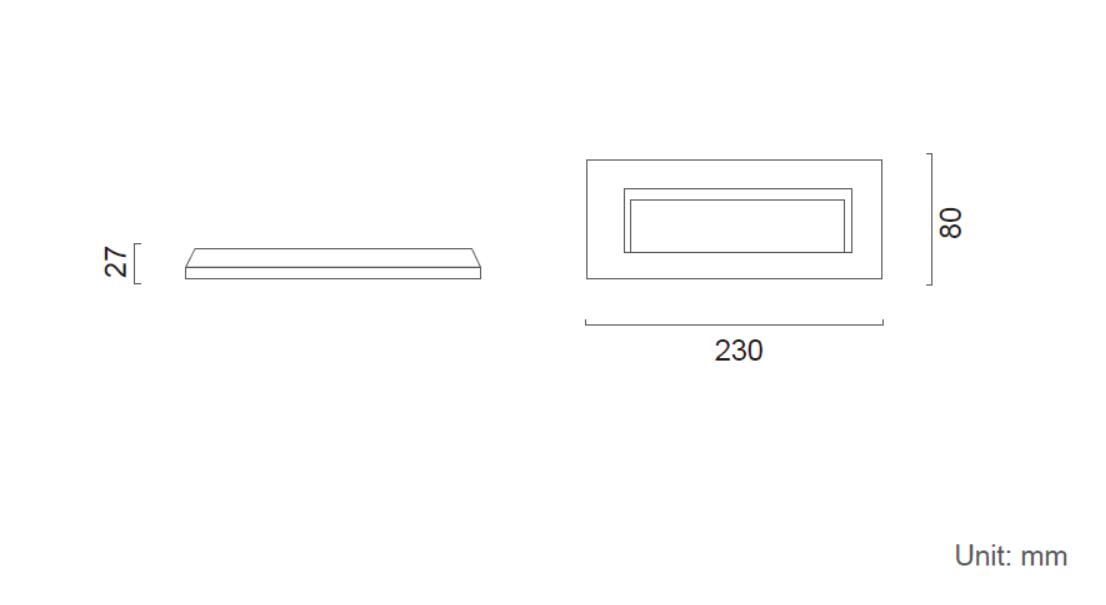

Dimension-尺寸-Dimensión

W: 80 x L: 230 x D: 27 mm
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max

3.5W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC220-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0 -10V Dimming Driver AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ
LED Driver Features

驅動特性

Funciones del controlador de LED

EFFICIENCY (Typ.): >70%
Control Protocol-控制協議

Protocolo de Control

0-10V / Dali
Beam Angle

光束角

ángulo de haz

Asymmetric
Light Source Brand-光源品牌-Fuente de luz de marca

CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"

1. L90(10k) = 50,700 hrs

2. L80(10k) > 63,500 hrs

3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy

燈具效率

La eficacia de la luminaria
- 55 Lm/w(2700K),
- 55 Lm/w(3000K),
- 60 Lm/w(4000K),
- 65 Lm/w(5000K),
- 65 Lm/w(6500K),
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia
- 90 Lm/w(2700K),
- 90 Lm/w(3000K),
- 95 Lm/w(4000K),
- 100 Lm/w(5000K),
- 100 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

ABS and Polycarbonate
Housing Color

外殼顏色

color de la carcasa

Mattte White Mattte Black Mattte Grey Dark Grey
Ingress Protection-防護等級

Protección de ingreso

IP65
Environment-使用環境-medio ambiente

Outdoor
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
