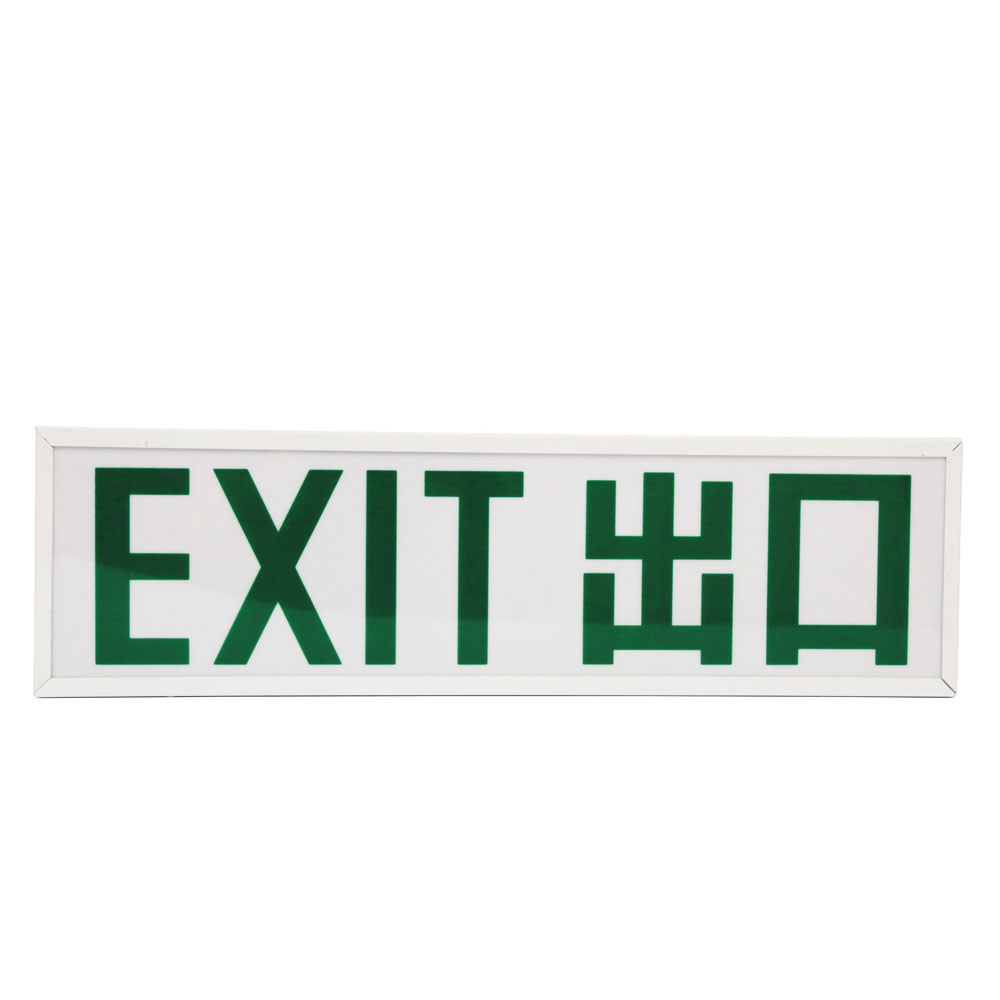

LED Emergency Exit Sign Box IP20

Exit Sign IP20

Product Features
• Super bright low power consumption LED Board.
• Same Lumen output in both Normal and Emergency mode.
• Maintained or Non Maintained type.
• Changeover complete in less than 1 second.
• Ni-MH or Ni-CD Battery incorporated for emergency backup purpose.
• 3 hours battery backup for emergency operation.
• Battery Full Recharge in 12 hours.
• Provided With a "Test" Button for regular maintenance check.
• Flashing facility is available upon request.
• Flashing is achievable upon receiving a 24V DC signal from Fire Alarm Panel or being mains failure.
• Auto Test Facility is an optional item.

Technical Data

Installation method / 安裝方式

Metodo de instalacion

Wall Mounted or Surface Mounted or Pendant Mounted

壁掛式或表面安裝式或吊裝式

Montado en la pared o en la superficie o montado en el colgante
System Mode

應急系統模式

Modo de sistema
- Maintained Type 長明式 Tipo mantenido
- Non-Maintained Type式非長明式 Tipo no mantenido
- CBS Support Only 中央電池應急 Emergencia de batería central
- Flashing Type 閃爍型 Tipo intermitente
- Auto Test 自動測試 Prueba automática (As per the requirements of FSD PPA/104 (5th Revision))
Flashing Type / 閃爍型 / Tipo intermitente
1. Having received 24dc signal from external equipment such as Fire Alarm Panels

2. Being in Mains Failure Status

3. By either N/C or N/O Contact
Side Selection

膠片選擇

Selección lateral
Single Sided or Double Sided

單面或雙面

Una cara o dos caras
Dimension / 尺寸 / Dimensión

L: 450mm x H: 180mm x D: 50mm @ Single Sided

L: 450mm x H: 180mm x D: 60mm @ Double Sided

L: 650mm x H: 180mm x D: 50mm @ Single Sided

L: 650mm x H: 180mm x D: 60mm @ Double Sided
Input Voltage / 輸入電壓 / Voltaje de entrada

AC 220-240V 50/60Hz
Converter Model / 轉換器型號

Modelo de convertidor
MOLA-3-3
Power Consumption / 燈具功率 / Consumo de energía Max

3W 5W
Charge Time / 充電時間 / Tiempo de carga

12 Hours
Discharge Duration / 放電時間

Duración de la descarga

3 Hours
Color Temperature / 色溫 / Temperatura del color

4000K 6500K
Battery Type / 電池類型

Tipo de batería

Ni-MH (Nickel Metal Hydride Battery)

Ni-CD (Nickel-cadmium Battery)
Battery Capacity / 電池容量

Capacidad de la batería
4.8V 1.2 AH
LED indicator Function / LED指示燈功能

Indicador LED de función
- Charging: Red LED Light up / 充電：紅色 LED 亮起 LED ROJO Iluminado
- Discharging: No color / 放電: 無顏色 / Descarga: Sin color
- Full : Green LED Light up 綠色 LED 亮起 LED VERDE Iluminado
- Fail : Yellow LED Light Up 黃色 LED 亮起 luz LED AMARILLA
Housing materials / 外殼材料

Materiales de la carcasa

Steel and Polycarbonate Diffuser

鋼和聚碳酸酯擴散器

Difusor de acero y policarbonato
Legend / 指示牌圖例 / Leyenda
Refer to Drawing / 參考圖紙 / Consulte el dibujo
Operating Temperature / 工作溫度

Temperatura de funcionamiento

-20°C - 40°C
Housing Color / 外殼顏色

color de la carcasa

Powder Coating / 粉末塗料 / Recubrimiento en polvo

Matte white / 啞光白色 / Blanco mate
Ingress Protection / 防護等級

Protección de ingreso

IP20
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

IEC 60598-1:2020 & BSEN 60598-2-22:2014+A1:2020 at temperature of 850°C and IEC 60695-2-10:2013

BS EN 50200: 2015 (PH60) and Annex E of BS EN 50200: 2015 (a duration ofsurvival time of 30 minutes) and one of the following standards:

(i) BS EN 60702-1: 2002 +Al: 2015 & BS EN 60702-2: 2002 +Al: 2015

(ii) BS 7629-1: 2015 (Cat. Standard 60)

(iii) BS 7846: 2015 (Cat. F2 for cables of overall diameter not exceeding20mm)

(b) BS 6387: 2013 Cat. CWZ. The test results from our measurement complied with the relevant sections of BS 5266-1:2016, BS EN 1838:2013 and relevant parts of BS EN 60598-2-22:2014+A1:2020 and regulation PPA / 104 (A) (5th Revision) of Fire Services Department specifications.
