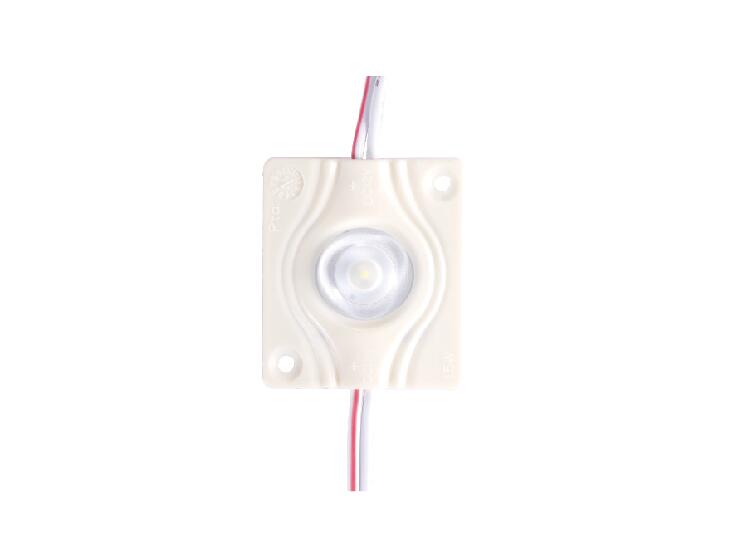

LED MODULE is able to be controlled by 0-10V and DALI dimming. It can be applied in backlight or edge light of giant signage(e.g. advertisement light sign, advertisement light box and billboard) or channel letter. Architectural indoor lights( for window, archway, canopy and corridor etc) can also be avaliable. LED module: OSRAM CRI>80. LM-80 performance approval >50,000 hours.
Luminaire Type-
安裝方式
Tipo de luminaria
Surface Mounted Type
明裝式燈具
Superficie Tipo Montado

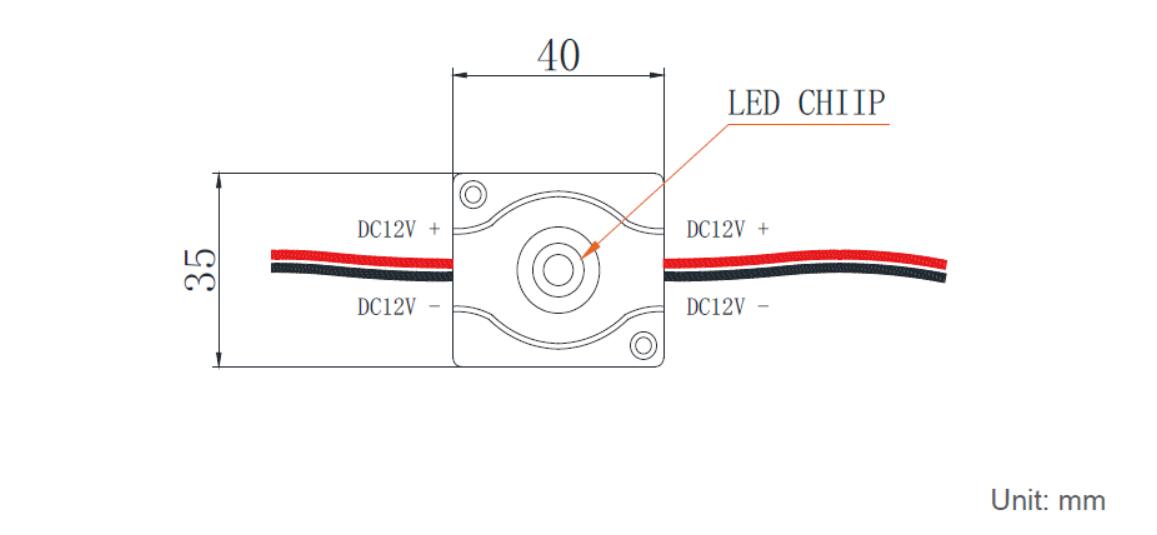

Dimension-尺寸-Dimensión
L:40 x W: 35 mm
QTY of LEDs-燈珠數量-CANT de LEDs
1pcs OSRAM LED
Input Voltage-輸入電壓-Voltaje de entrada
DC12V
Power Consumption Max-燈具功率
Consumo de energía Max
1.5W
LED Driver Type
LED驅動款式
Tipo de controlador LED
Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60Hz
2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60Hz
3. 0 -10V Dimming Driver AC100-240V 50/60Hz
4. Dali Dimming Driver AC100-240V 50/60Hz
5. DMX Driver AC100-240V 50/60Hz
6. RDM Driver AC100-240V 50/60Hz
7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
Control Protocol-控制協議
Protocolo de Control
0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Beam Angle
光束角
ángulo de haz
160°
Light Source Brand-光源品牌-Fuente de luz de marca
OSRAM - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"
1. L90(10k) = 50,700 hrs
2. L80(10k) > 63,500 hrs
3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED
>60,000 hours
Color Temperature -色溫
Temperatura del color
2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數
Índice de reproducción cromática
> 80
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM
標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy
燈具效率
La eficacia de la luminaria
75 Lm/w(2700K),
75 Lm/w(3000K),
80 Lm/w(4000K),
85 Lm/w(5000K),
85 Lm/w(6500K),
LED Source Luminous Efficacy
LED光源光效
Fuente luminosa LED Eficacia
100 Lm/w(2700K),
100 Lm/w(3000K),
105 Lm/w(4000K),
120 Lm/w(5000K),
120 Lm/w(6500K),
Housing materials-外殼材料
Materiales de la carcasa
Polycarbonate
聚碳酸酯
Policarbonato
Housing Color
外殼顏色
color de la carcasa
Milky
乳白色
Milky
Ingress Protection-防護等級
Protección de ingreso
IP67 - (IEC 60529)
Environment-使用環境-medio ambiente
Outdoor
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format
LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547W
