SOLAR-X-3NM+

1NM~5NM-Selfcontained Marine Lartern

Lightweight and Compact design

User selectable power and flash character settings via DM Bluetooth 5.0 -Smart App (Android Base)
Max Distance up to 5nm

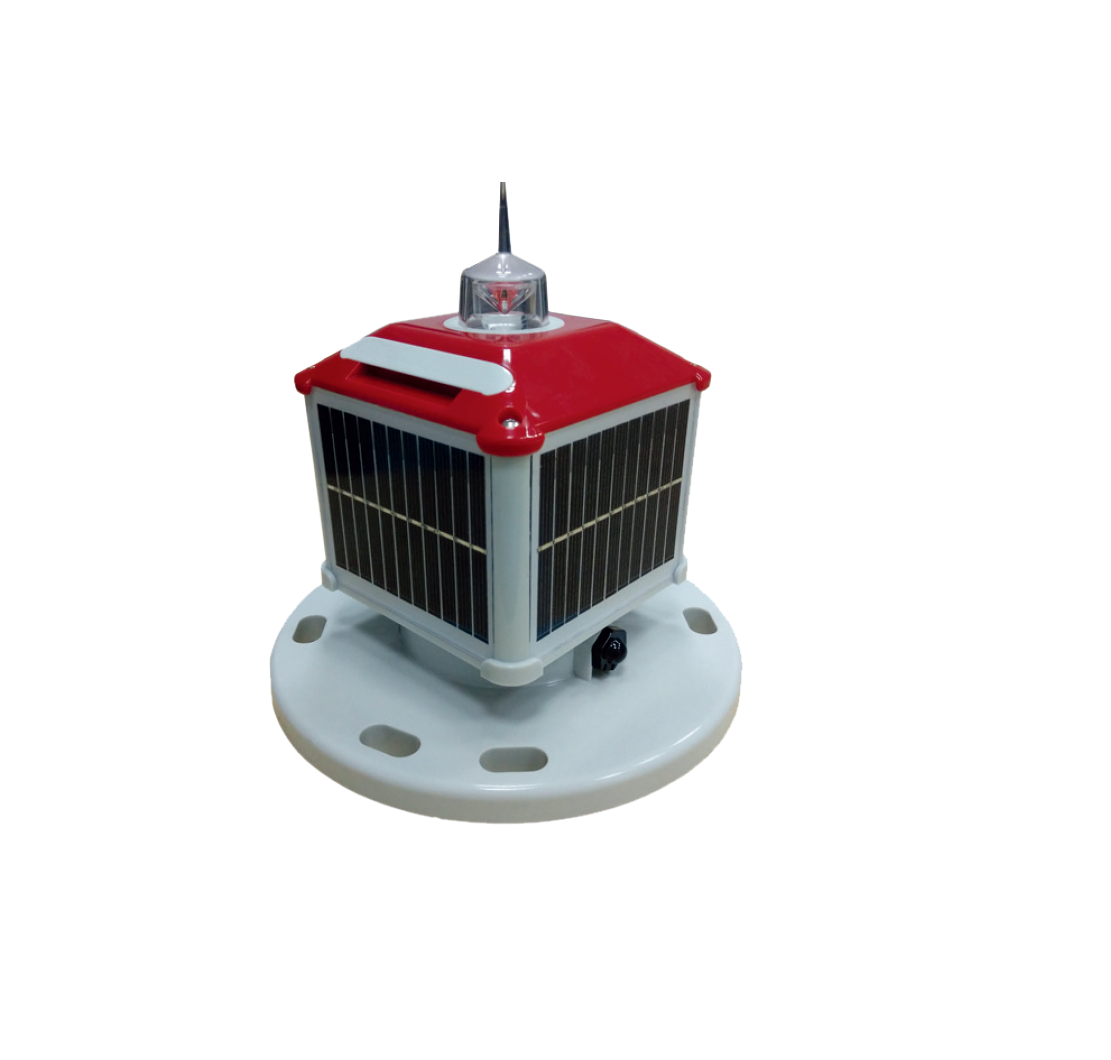

SOLAR X series is a self-contained lantern powered by solar energy and lithium battery with integrated structure design.
It has the characteristics of low power consumption, easy maintenance and aging resistance. It can be widely used in inland rivers, Coastal and harbor light buoys.
This series of lamps is composed of LED point light source, lens, solar panel and weather-resistant material base.
The GPS high-precision clock is used to realize the synchronous flash function;
The range is 1-5 nautical miles
The vertical divergence angle is 8.3±0.3 degrees and the horizontal divergence angle is 360 degrees.

Technical Data

Features
- Max Distance up to 5nm
- Long Life -LED Light Source
- Optional GPS synchronisation module
- 4 levels of luminous intensity adjustment to adapt to different range requirements.
- Available in all IALA approved colours
- 256 user selectable flash characters and selectable dayligt sensor
- Magnetic On/Off Switch for quick deployment and hassle free storage maintenance check
- User selectable power and flash character settings via DM Bluetooth 5.0 -Smart App (Android Base)
- Working hours lasting up to 20 days in bad weather (1:1 ratio of light to dark).
- Optional GNSS synchronized-conotrol flash function by GPS and BDS
- Ingress Protection: IP68
Selectable Range

(T=0.74)
- 1-5 nautical miles by DM Bluetooth -Smart App Setting
* 4-5nm according the selected IALA Flashing code

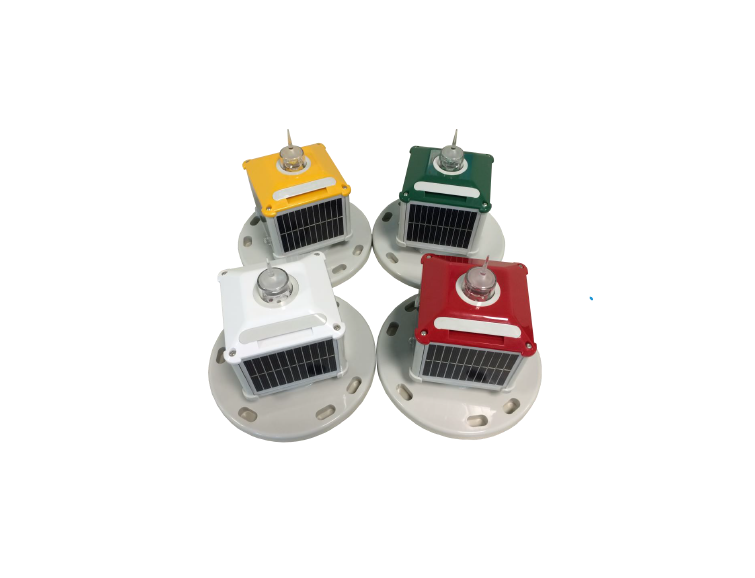

Available Colours

• Red

• Green

• Yellow

• White
Visibility

360° horizon (omnidirectional)
Vertical Divergence

8.3°±0.3
Flash Codes

Up to 256 codes IALA , field selectable
Synchronisation

Optional GNSS (GPS+BDS)
Sunswitch Threshold

Daylight Sensor

Default 300Lux (100~1000Lux adjustable)
Input Voltage

DC5V
Power settings

Adjustable from 1NM to 5NM
Solar Power

4W (4 x 1.0 W 5VDC ) Scratch-resistant Solar Panels
Battery Capacity

Standard Type NVA-P3714 :7.2V 14AH 100.8Wh Lithium-Ion Rechargeable Cell Battery (self-protection)
Control Protocol

Blue-tooch -5.0
Magnetron Switch

YES
Weight

2.2KG for Standard Version
Dimension

Dia 235mm x H: 225mm
Operation Temperature

-35°C to +60°C
Ingress Protection

IP 68
Housing materials

UV resistant molded polycarbonate
Carton Size :

L*W*H (310x290x278mm)
