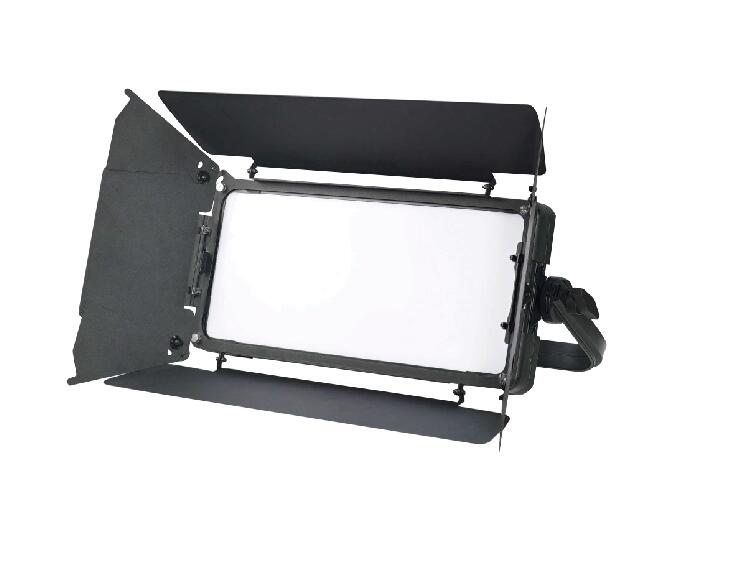

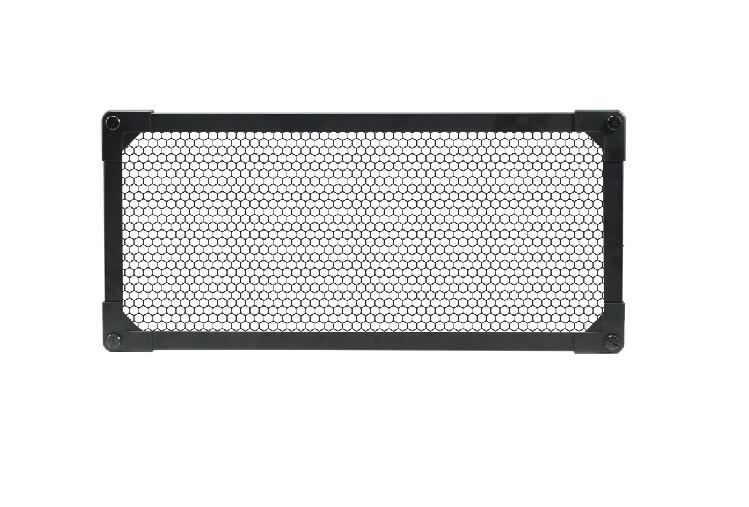

With outstanding floodlight and soft light.DM-F1000WW/CW/VW is widely applied to photographic studio, TV station, conference room, shopping mall available with mobile battery set. Optional accessories with cellular grid.
Luminaire Type/ 安裝方式
Tipo de luminaria
Surface Mounted and Adjustable Type
明裝可調安裝腳
Tipo montado en superficie y ajustable
Color -顏色-Color
3200±150K
5600±250K
Power Consumption Max
燈具最大功率
Consumo de energía Max
100W
DMX Channels
DMX 通道
Canales DMX
1/2A/2B/3 channels (DM-F1000CW/WW)
2/3A/3B/4/5/6 channels (DM-F1000VW)
Control Model /控制協議
Modelo de control
DMX,Master/Slave,Art-Net
Input Voltage / 輸入電壓
Voltaje de entrada
AC 100 ~ 240V, 50/60Hz

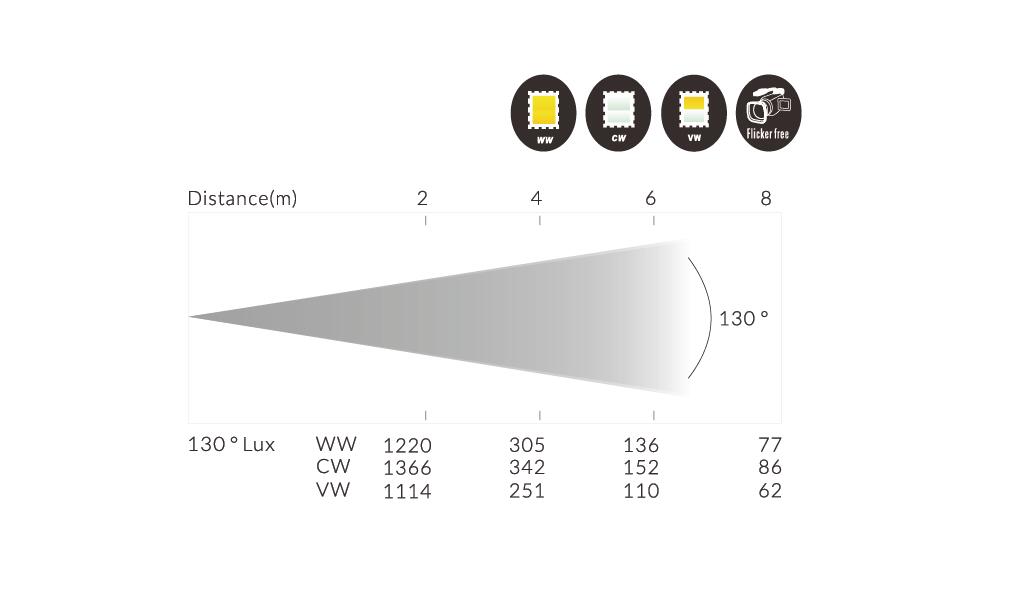

Beam Angle/光束角
ángulo de haz
130°
Light Source Brand/光源品牌
Fuente de luz de marca
240pcs CW LED @ DM-F1000CW
240pcs WW LED @ DM-F1000WW
240pcs CW+240pcs WW LED @ LP-F1000VW
LED Life/LED壽命
La vida del LED
>60,000 hours
Optical
光學
Optical
CRI: WW≥95, CW≥94, VW≥94
CQS: WW≥94, CW≥94, VW≥94
TLCI: WW≥95, CW≥95, VW≥95
Construction
結構
Construcción
Display: LCD display
Data In/Out: 5-pin XLR
Power In/Out: PowerCon in
Housing materials/外殼材料
Materiales de la carcasa
Die-cast aluminium
Housing Color/ 外殼顏色
Color de la carcasa
Matte Black
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-20 °C / +50 °C
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
Ingress Protection/ 防護等級
Protección de ingreso
IP20

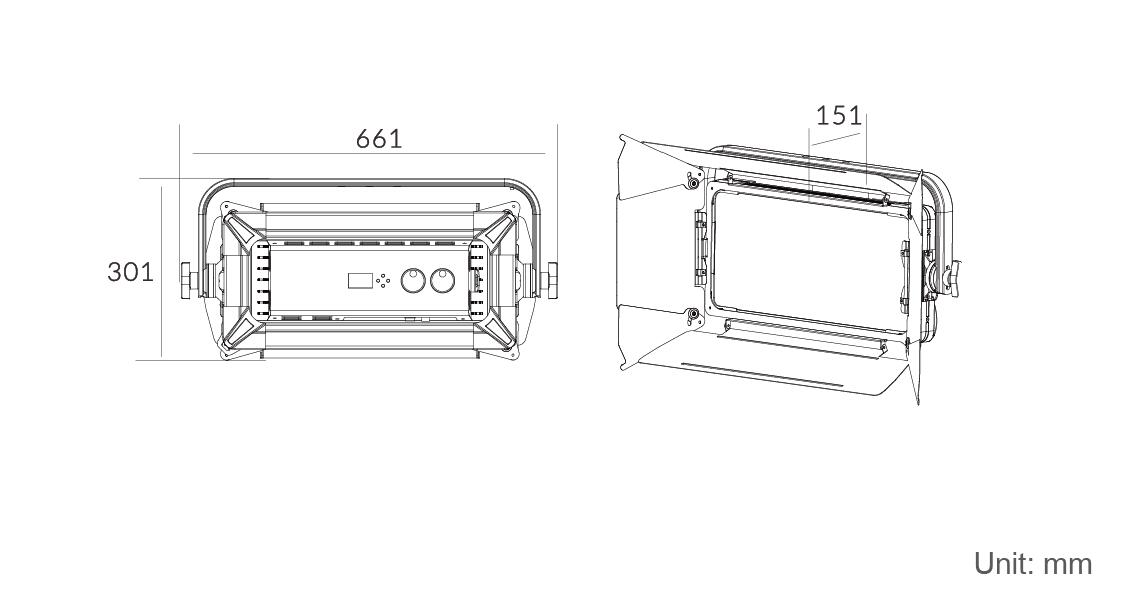

Dimension/尺寸
Dimensión
L:661 x W:301 x H:151mm
Environment/ 使用環境
Medio ambiente
Indoor / 室內 / Indoor
WEIGHT
重量
Peso
8kg
