Luminaire Type- 安裝方式 Tipo de luminaria

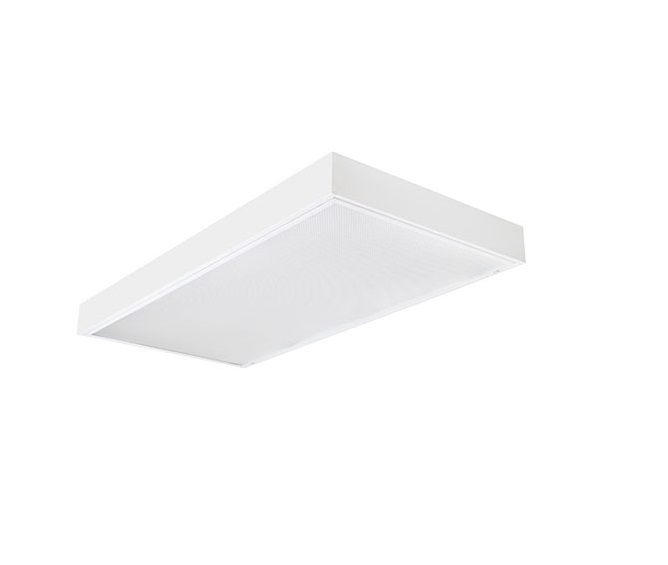

Surface Mount 明裝式燈具
Dimension-尺寸-Dimensión
Cut-off Dimension -開孔尺寸 Dimensión de corte
Input Voltage-輸入電壓-Voltaje de entrada
AC 220 -240V 50/60HZ
Power Consumption Max
燈具功率
Consumo de energía Max
75W Max Refer to Specification Code and LED Tube Power
75W Max 參考規格代碼和 LED 燈管功率
75 W máx. Consulte el código de especificación y la potencia del tubo LED
LED Driver Type
LED驅動款式
Tipo de controlador LED
Integrated-type LED Driver for DC LED T5 / T8 Application--Refer to LED driver specification 請參閱LED驅動器規格Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60HZ
2.1-10V Dimming Driver AC220-240V 50/60HZ for DC LED Tube
3. Dali 1-100% Dimming Driver AC220-240V 50/60HZ for DC LED Tube
4. DMX 1-100% Driver AC220-240V 50/60HZ for DC LED Tube
5. ZIGBEE Wireless Control (Remoted Driver ) AC220-240V 50/60HZ for DC LED Tube
6. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia
7. Microwave Sensor : 0-10V control / DALI / ZIBGEE
8. Daylight Sensor : 0-10V control / DALI / ZIBGEE
LED Driver Features Constant Current LED Driver:
驅動特性-恆流LED驅動器
Funciones del controlador de LED
POWER FACTOR : PF>0.90 or PF >0.95
TOTAL HARMONIC DISTORTION: THD< 20%
Refer to LED Driver data sheet
Control Protocol-控制協議
Protocolo de Control
1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Beam Angle 光束角 ángulo de haz
Refer to LED T5 tube data sheet
Photobiological safety-IEC 62471 / of Luminaire
光生物安全檢驗(ICE/EN 62471) 结果:
Seguridad fotobiológica-IEC 62471
• Low Risk Group 1 (RG1) Refer to LED T5 / T8 Specification
• 低風險組1 (RG1) 參閱LED T5 / T8規格
• Grupo de bajo riesgo 1 (RG1) Consulte la especificación LED T5 / T8
Housing materials-外殼材料
Materiales de la carcasa
Steel sheet with Prismatic PMMA diffuser or Opal Polycarboante Diffuser
鋼板外框棱柱形PMMA 擴散器燈罩或乳白PC 擴散器燈罩
Chapa de acero con difusor de PMMA Prismático o Difusor de Policarbonato Opal
Trim Housing Color 框外殼顏色
color de la carcasa
White coating RAL 9016 白色塗層RAL 9016 Recubrimiento blancoRAL 9016
Transmittance rate of diffuser
擴散板透過率
asa de transmitancia del difusor
Prismatic Diffuser: 80% 棱鏡擴散器：80% Difusor prismático: 80%
Opal Polycarboante Diffuser: 70% 乳白PC 擴散器燈罩: 70% Difusor de Policarbonato Opal: 70%
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-30 °C / +50 °C
Ingress Protection-防護等級 Protección de ingreso
IP20
IP54
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
Luminaires: IEC/ EN 60598-1 / EN 60598-2-1 / EN 62031 / EN 62493
LED Driver :IEC/EN 62471 / IEC 60598-2-22 / IEC 62031 /EN 55015 / EN 61000-3-2 / EN 61000-3-3 / EN 61547
LED T5 /T8 ::IEC/EN 62471 / IEC 60598-2-22 / IEC 62031 /EN 55015 / EN 61000-3-2 / EN 61000-3-3 / EN 61547 / IEC 62262 / IEC 60529 / IEC TR62778
Luminaries Performance : IEC 62722-1 / IEC 62722-2-1 FSD regulation PPA 105A (4th Rev). RoHS
