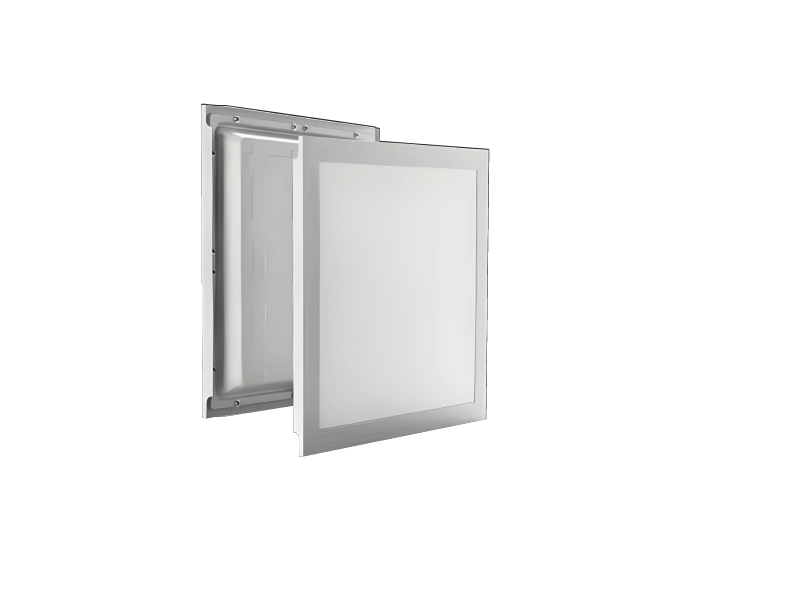

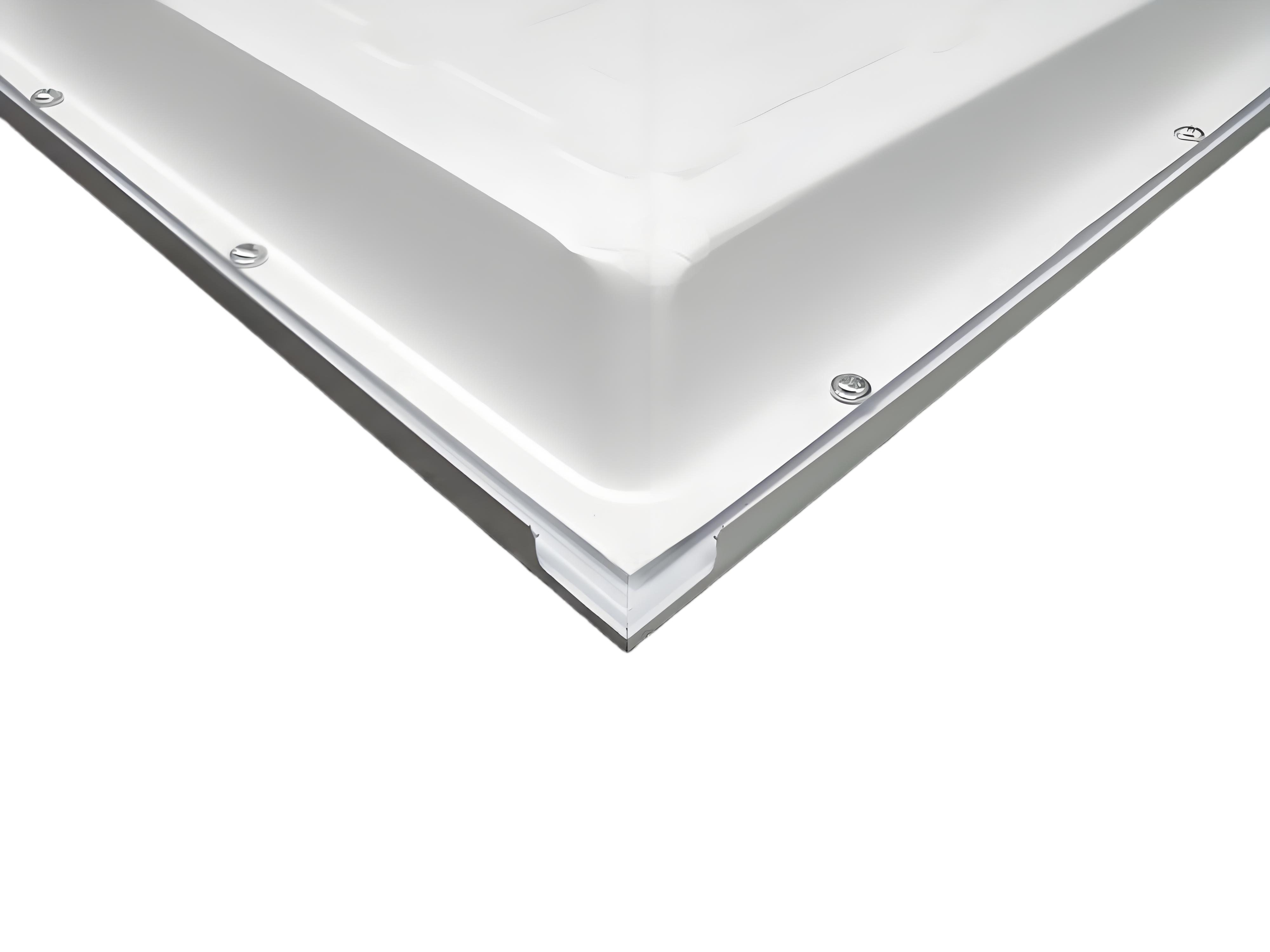

Tailored for Dampa ceiling mounted Diffused LED Luminaire with High Uniformity Opal Diffuser and Back-lite system to Low glare . White Painted Aluminium frame with reflective sheet (PET) and Opal diffuser. Fixed Ouptut LED Driver .CCT Adjustable (2700K-6500K) can be option.
Luminaire Type-安裝方式
Tipo de luminaria
Recessed & Surface & Suspended Mounted嵌入式, 明裝或吊裝
Empotrado y superficie y suspendido montado
Power Consumption with LED Driver
LED燈具包括LED驅動電源功率
Consumo de energía con controlador de LED
Input Voltage / 輸入電壓 Voltaje de entrada
220-240V/AC 50/60Hz (with remote driver)
LED Driver Type
LED驅動款式
Tipo de controlador LED
Remote-type LED Driver--Constant Current LED Driver
Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60HZ
3. 1-10V Dimming Driver AC220-240V 50/60HZ
4. Dali Dimming 1-100% Driver AC220-240V 50/60HZ
5. DMX Driver 1-100%AC220-240V 50/60HZ
6. RDM Driver 1-100% AC220-240V 50/60HZ
7. ZIGBEE Wireless Control (Remoted Driver ) AC220-240V 50/60HZ
8. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features Constant Current LED Driver:
驅動特性-恆流LED驅動器
Funciones del controlador de LED
POWER FACTOR : PF>0.90 @ Full Load
TOTAL HARMONIC DISTORTION: THD< 20%
Refer to LED Driver data sheet
Control Protocol/控制協議/Protocolo de Control
1-10V / Dali / Dali2
Light Source Brand-光源品牌-Fuente de luz de marca
SMD 4014 LED
"Lumen Maintenance LM-80 Reported by TM-21"@ 25°C
L70(10k) > 60,000 hrs
LED Life-LED壽命-La vida del LED
>60,000 hours
Color Temperature -色溫
Temperatura del color
3000K 4000K 5000K 6000K 6500K
Color Rendering Index-顯色指數
Índice de reproducción cromática
>80
>90
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM
標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
Beam Angle光束角ángulo de haz
110 °
Luminaire Efficacy 燈具效率
La eficacia de la luminaria
• 110 Lm/w(2700K) 110 Lm/w(3000K) 120 Lm/w(4000K)
• 120 Lm/w(5000K) 120 Lm/w(6000K) 120 Lm/w(6500K)
LED Source Luminous EfficacyLED光源光效
Fuente luminosa LED Eficacia
• 150 Lm/w(2700K) 150 Lm/w(3000K) 160 Lm/w(4000K)
• 160 Lm/w(5000K) 160 Lm/w(6000K) 160 Lm/w(6500K)
Housing materials 外殼材料
Materiales de la carcasa
Aluminum Alloy and Polystyrene with Opal Polycarnoate
鋁合金和乳白PC擴散器 PMMA（導光板）
Housing Color
外殼顏色
color de la carcasa
White Painted Aluminium frame and Opal
白色鋁框和乳白面
Ingress Protection-防護等級
Protección de ingreso
IP65
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-20 °C / +50 °C
Operating Humidity /工作濕度/Humedad de funcionamiento
0~100%, non-condensing-不結霜sin condensación
Dimension / Weight
尺寸/ 重量
Dimensión / Peso
• L: 300mm x W: 300mm / 1.2kg
• L: 600mm x W: 600mm 3.1kg
• L: 1200mm x W: 300mm 3.1kg
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471 (Risk Group 1)
LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;
IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
