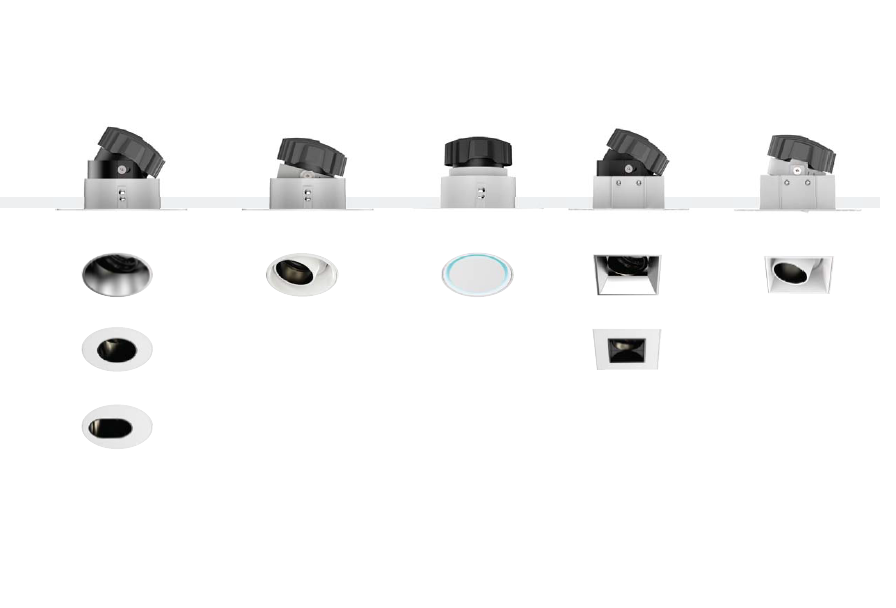

LED RECESSED LOW GLARE DOWN LIGHT. Housing: die-cast aluminium with PMMA Lens and anti-glare reflector to achieve UGR< 19.Deep recessed design achieves super eye comfort. Optimal lens technologies with narrow,medium and flood beam angles . Materials is complied with Hot Wire Testing: 850°C: The blue light risk group: (RG0 ) under IEC TR 62778 & IEC 62471 testing
Luminaire Type-安裝方式Tipo de luminaria
Recessed Mount Type嵌入式筒燈Empotrada Tipo Mount
Dimension-尺寸-Dimensión
Cut off Dimension-開孔尺寸-Cortar Dimensión
Refer to Technical Drawing 請參閱技術圖紙 Consulte el dibujo técnico
Input Voltage-輸入電壓-Voltaje de entrada
AC100-240V 50/60HZ
Power Consumption Max-燈具功率
Consumo de energía Max
LED Driver Type
LED驅動款式
Tipo de controlador LED
Remote-type LED Driver--Constant Current LED Driver: Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC 220-240V 50/60HZ
2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ
3. 0-10V Dimming Driver AC100-240V 50/60HZ
4. Dali Dimming Driver AC100-240V 50/60HZ
5. Zigbee Wireless Control Driver AC100-270V 50/60HZ
6. DMX Driver AC100-240V 50/60HZ
7. RDM Driver AC100-240V 50/60HZ
8. Emergency Backup >2 hours or >3 hours 應急電池/Copia de seguridad de emergencia
LED Driver Type LED驅動款式 Tipo de controlador LED Driver
POWER FACTOR : PF>0.9 @ Full Load TOTAL HARMONIC DISTORTION: THD< 20%

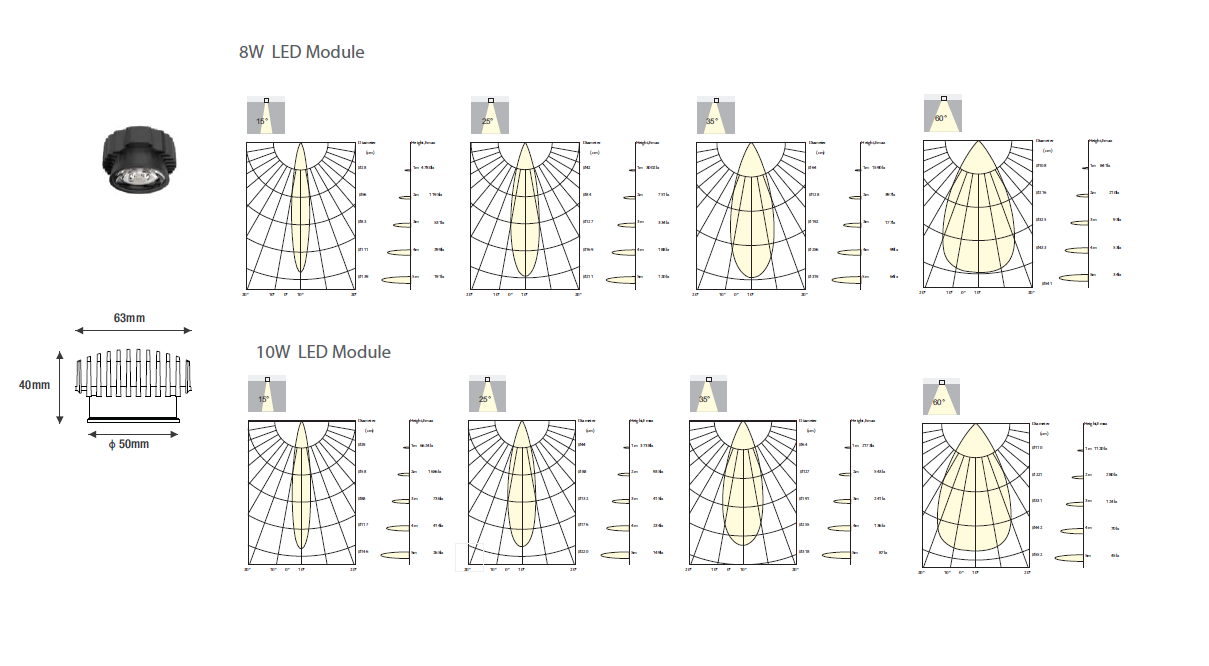

Beam Angle 光束角 /ángulo de haz
15° 25° 35° 60°
Light Source Brand-光源品牌-Fuente de luz de marca
JAPAN CITIZEN COB LED
"Lumen Maintenance LM-80 Reported by TM-21"@ 25°C
L90(10k) = 50,700 hrs L80(10k) > 63,500 hrs L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED
>60,000 hours
Color Temperature -色溫 Temperatura del color
2700K / 3000K / 4000K / 5000K / 6000K/ 6500K
Color Rendering Index-顯色指數
Índice de reproducción cromática
Chromaticity Tolerance (initial Macadam)
色度容差（初始Macadam）
Tolerancia de cromaticidad (Macadam inicial)
Standard Deviation Colour Matching < 3 SDCM
標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy燈具效率
La eficacia de la luminaria
90 Lm/w(2700K), 90 Lm/w(3000K), 100 Lm/w(4000K),
110Lm/w(5000K), 110 Lm/w(6000K), 110Lm/w(6500K)
LED Source Luminous Efficacy LED光源光效
Fuente luminosa LED Eficacia
140 Lm/w(2700K), 140 Lm/w(3000K), 150 Lm/w(4000K),
150Lm/w(5000K), 160 Lm/w(6000K), 160Lm/w(6500K)
Housing materials-外殼材料
Materiales de la carcasa
Die-cast aluminum and PMMA Lens
壓鑄鋁和PMMA 透鏡
Lente de aluminio fundido a presión y PMMA
Trim Color-框邊顏色-Estilo Color
Matte white / Matte black / Matte Grey 啞光白色 / 啞光黑色/ 亞光灰 Blanco mate / Matte black/Gris mat
Reflector Color-反光杯顏色-Reflector color
Matte Silver 啞銀Plata mate Black 黑色 Negro
White 白色 Blanco Gold 金色 Oro Refer to System introduction
Ingress Protection-防護等級
Protección de ingreso
IP20 IP44 refer to System introduction
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-30 °C / +50 °C
Comply Testing Standard
符合測試標準 Cumplir el estándar de prueba
LED Luminaires: IEC/EN 60598-1 ; IEC/EN 60598-2-2 ; IEC/ EN62493 ; IEC/EN 62301 ; IEC TR 62778 & IEC 62471 (RG0)
LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
