DENSO

D63~105mm 22W Max IP40

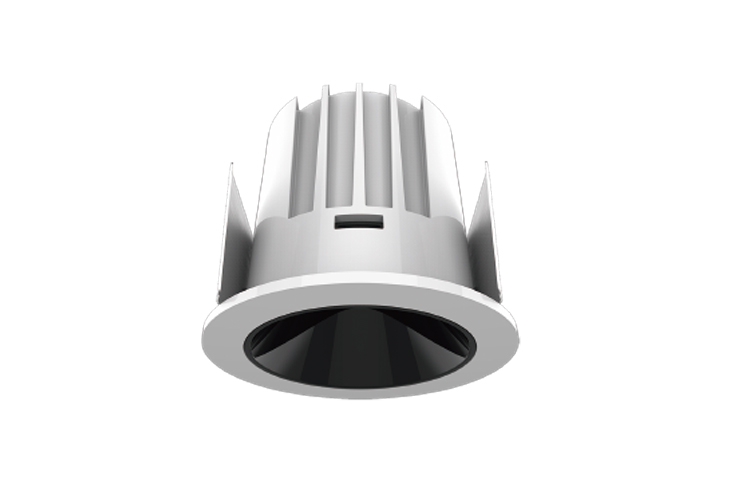

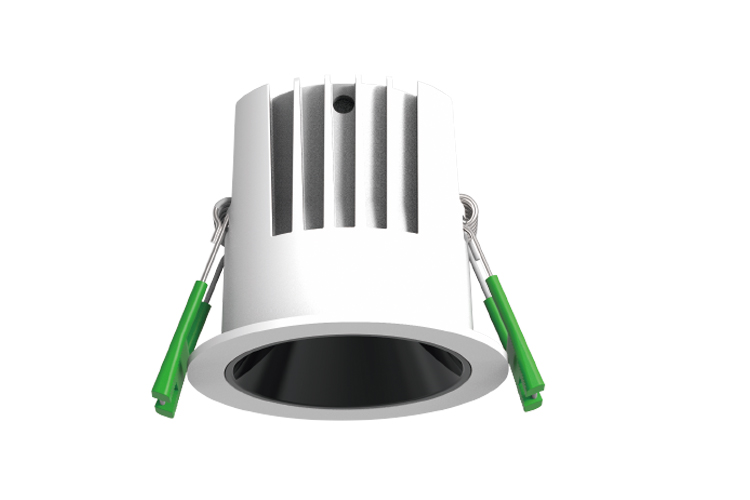

RECESSED SPOTLIGHTS

Housing: die-cast aluminium, powder-coated, designed as heat sink. Anti-glare reflector and diffusor system made of PC. LED module: high-power CREE LEDs Array, CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV , 0-10V, DALI, DMX and RDM LED constant current control gear. Deep recessed design achieves super eye comfort.Ingress Protection: IP 40.

Technical Data

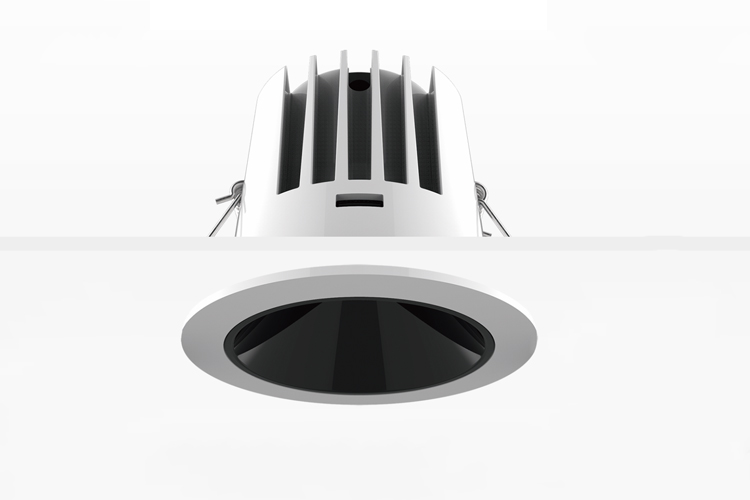

Luminaire Type-安裝方式Tipo de luminaria

Recessed Mount Type 嵌入式筒燈 Empotrada Tipo Mount

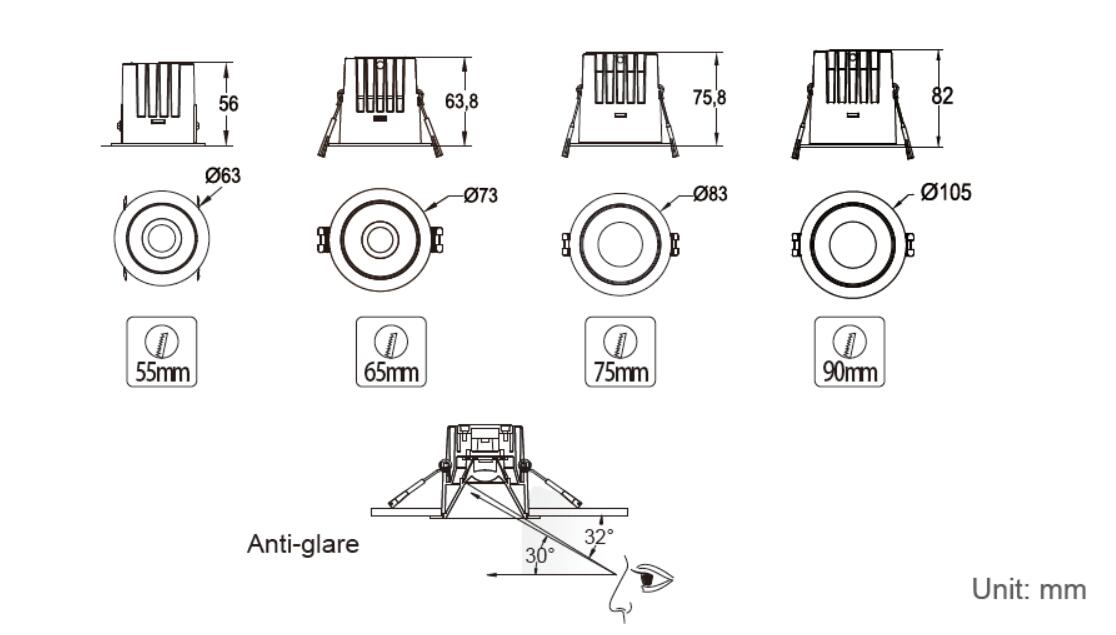

Dimension-尺寸-Dimensión
- DIA 63 x H:56 mm
- DIA 73 x H:63.8 mm
- DIA 83 x H:75.8 mm
- DIA 105 x H:82 mm
Cut off Dimension-開孔尺寸-Cortar Dimensión
- Dia 55 @ DIA 63 x H:56 mm
- Dia 65 @ DIA 73 x H:63.8 mm
- Dia 75 @ DIA 83 x H:75.8 mm
- Dia 90 @ DIA 105 x H:82 mm
QTY of LEDs-燈珠數量-CANT de LEDs

1 pcs CREE LED Array COB
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max
- 6W @ Dia 63 @ Dia 73 mm
- 9W @ Dia 63 @ Dia 73 @ Dia 83 mm
- 10W @ Dia 73 @ Dia 83 @ Dia 105 mm
- 12W @ Dia 73 @ Dia 83 @ Dia 105 mm
- 15W @ Dia 83 @ Dia 105 mm
- 16W @ Dia 105 mm
- 22W @ Dia 105 mm
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC220-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0-10V Dimming Driver  AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ (Dimming range from 0-100%)

6. RDM Driver  AC100-240V 50/60HZ

7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features

驅動特性 Funciones del controlador de LED

POWER FACTOR : PF>0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議

Protocolo de Control

1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

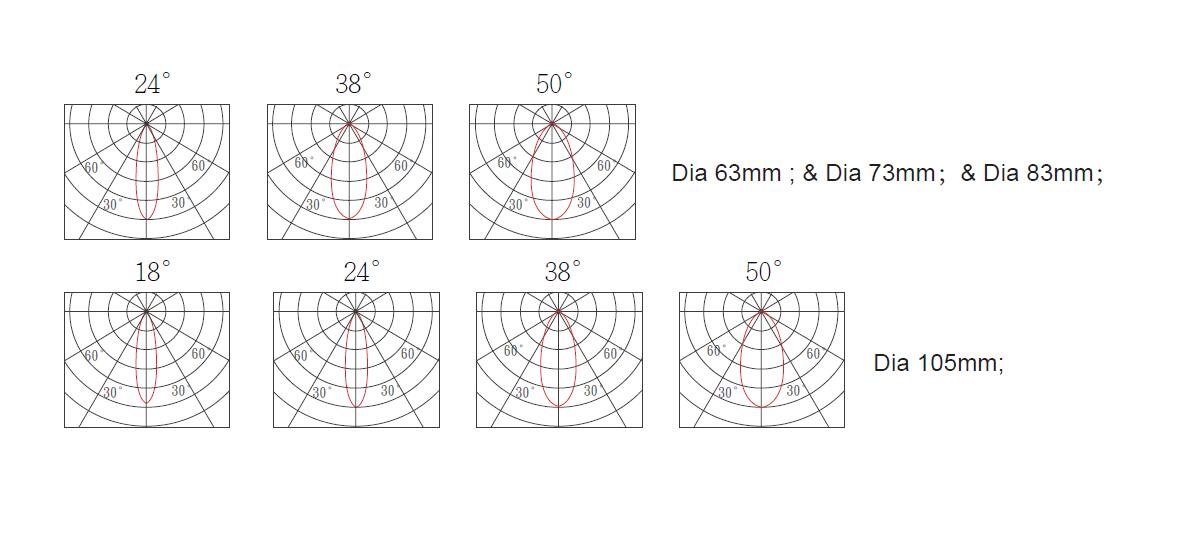

Beam Angle 光束角 ángulo de haz
- 18°
- 25°
- 38°
- 50°
Light Source Brand-光源品牌-Fuente de luz de marca

CREE- ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"

L90(10k) = 50,700 hrs L80(10k) > 63,500 hrs L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática
- > 80
- > 90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率

La eficacia de la luminaria
- 85 Lm/w(2700K),
- 90 Lm/w(3000K),
- 90 Lm/w(4000K),
- 95 Lm/w(5000K),
- 95 Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia
- 115 Lm/w(2700K),
- 120 Lm/w(3000K),
- 120 Lm/w(4000K),
- 125 Lm/w(5000K),
- 125 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminum and acrylic

壓鑄鋁和亞克力

Fundición de aluminio y acrílico
Trim Color-框邊顏色-Estilo Color

Matte white / Matte black

啞光白色 / 啞光黑色

Blanco mate / Matte black
Reflector Color-反光杯顏色-Reflector color

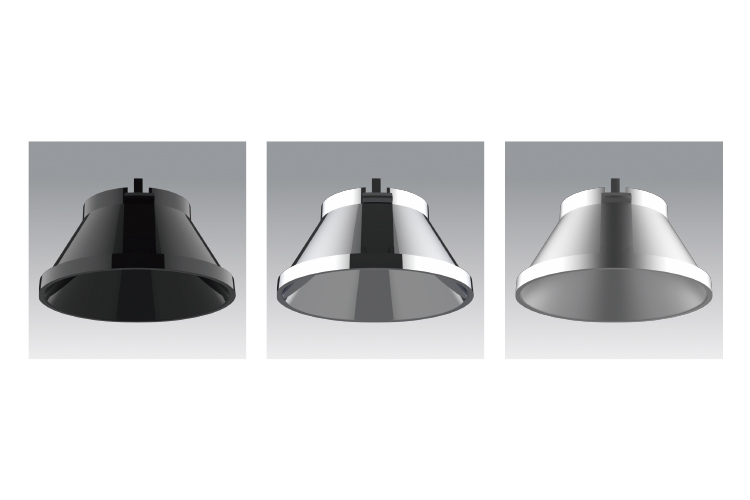

Titanium / Bright silver / Matte silver

鈦金 / 亮銀 / 啞光銀

Titanio / Plata brillante / Plata mate
Ingress Protection-防護等級

Protección de ingreso

IP40 - (IEC 60529)
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
