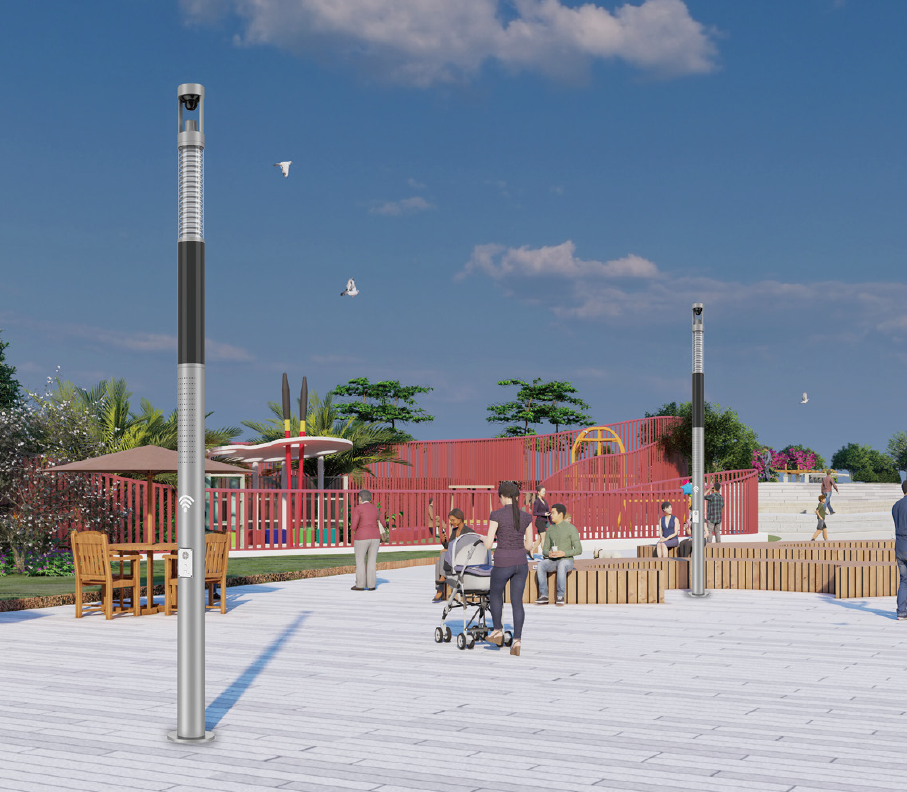

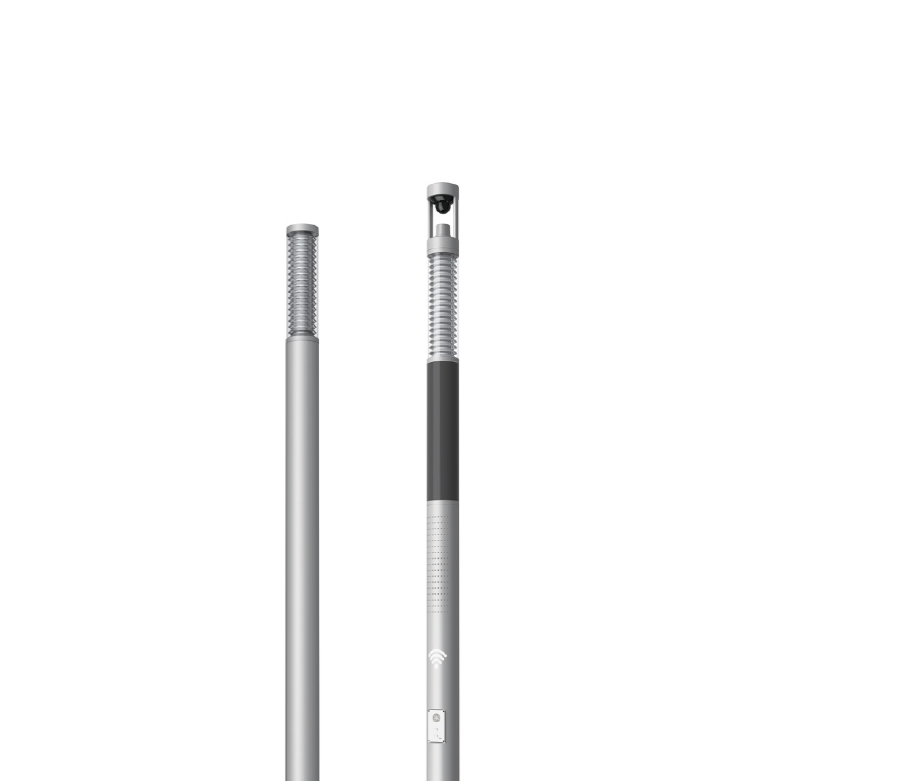

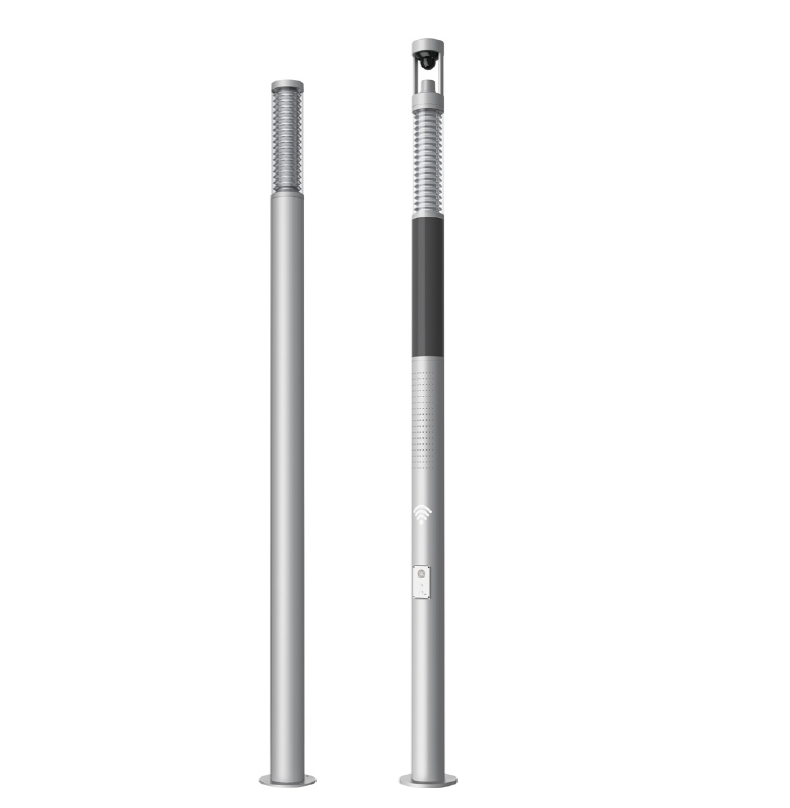

GODARD-MART POLE

30W-50W

LED Smart Garden Light IP66

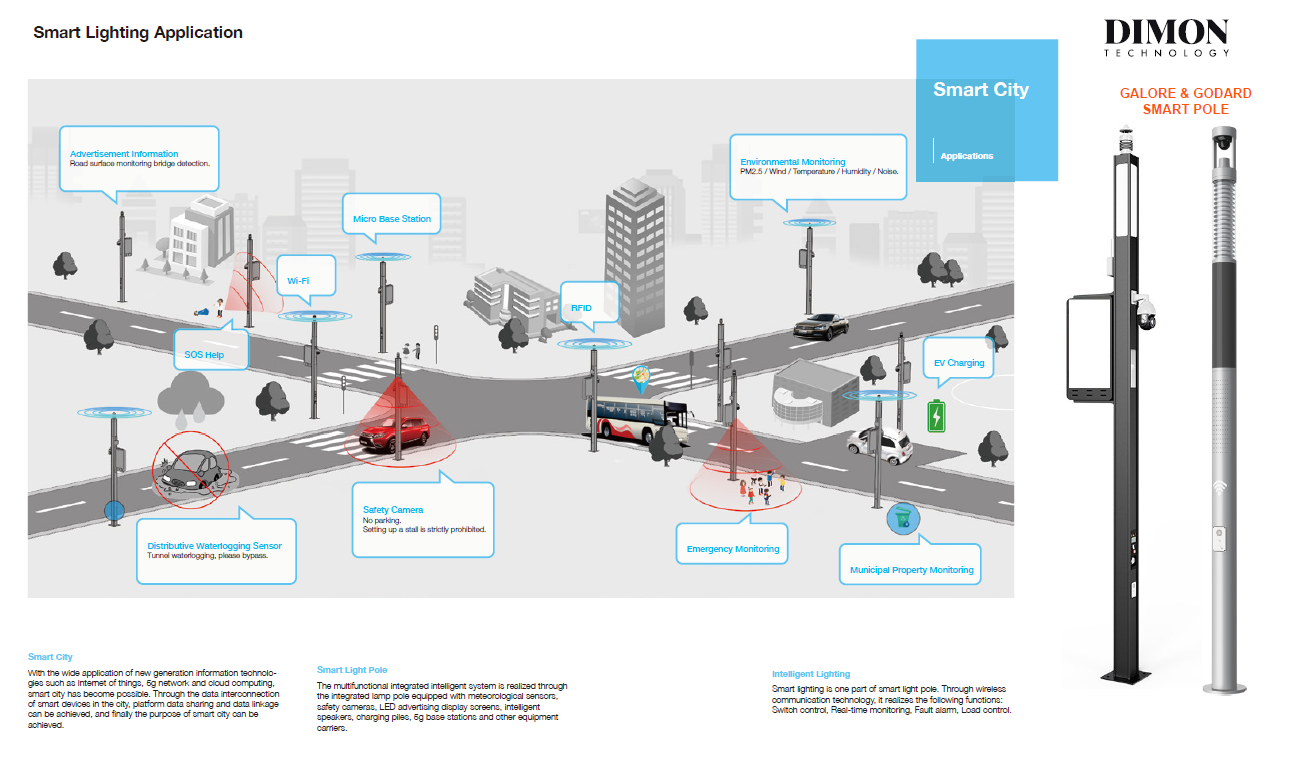

Smart Devices: METEOROLOGICAL SENSOR, WIRELESS INTERNET, CCTV, SPEAKER,INTELLIGENT CONTROLLER, SOS and EV CHARGING with remote management system by others
Die-casting aluminium top cover, extruded aluminaium column pole, with anti-UV PC transparent diffuser.
Integrated LED dimming driver : 0-10V/DALI/ Zigbee
Surge protection up to 20KV.
Surface anti-ultravilet pure polyester and corrosion resistance powder painting,

Technical Data

Selectable Smart Devices Accessories

可選智能設備配件

Accesorios de dispositivos inteligentes seleccionabl
- Meteorological Sensor :Humidity, air pressure, wind speed, wind direction, temperature, DB, PM2.5
- Daylight senser
- Wireless 2.4G/5G communication network for smart city applications
- CCTV
- SPEAKER
- Intelligent Controller / Processor-2.4 GHz signal like : Rola wireless / Zigbee wireless and so on
- SOS
- EV Professional charging station
Power Consumption with LED Driver

LED燈具包括LED驅動電源功率

Consumo de energía con controlador de LED

30W 40W 50W
Input Voltage / 輸入電壓

Voltaje de entrada

220~ 240VAC (50~60HZ)
Control Protocol/控制協議

Protocolo de Control

SW: ON/OFF Switch Driver AN: 1-10V Dimming Driver

DA: Dali Dimming Driver ZI: ZIGBEE Wireless Control

MS: Motion Sensor DS: Daylight Sensor
Power Factor / 功率因數/Factor de potencia

PF>0.95
Total Harmonic Distortion/總諧波失/Distorsión armónica total

THD<20%
Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

Up to 20KV.
Light Source Brand-光源品牌-Fuente de luz de marca

CREE
"Lumen Maintenance LM-80 Reported by TM-21"

L70 > 45,000 Hours
LED Life-LED壽命-La vida del LED

>50,000 hours
Color Temperature 色溫 Temperatura y color

2700K / 3000K / 4000K/ 5000K/ 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

>80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching 3 SCDM

標準偏差配色 3 SCDM

Coincidencia de color estándar Desviación

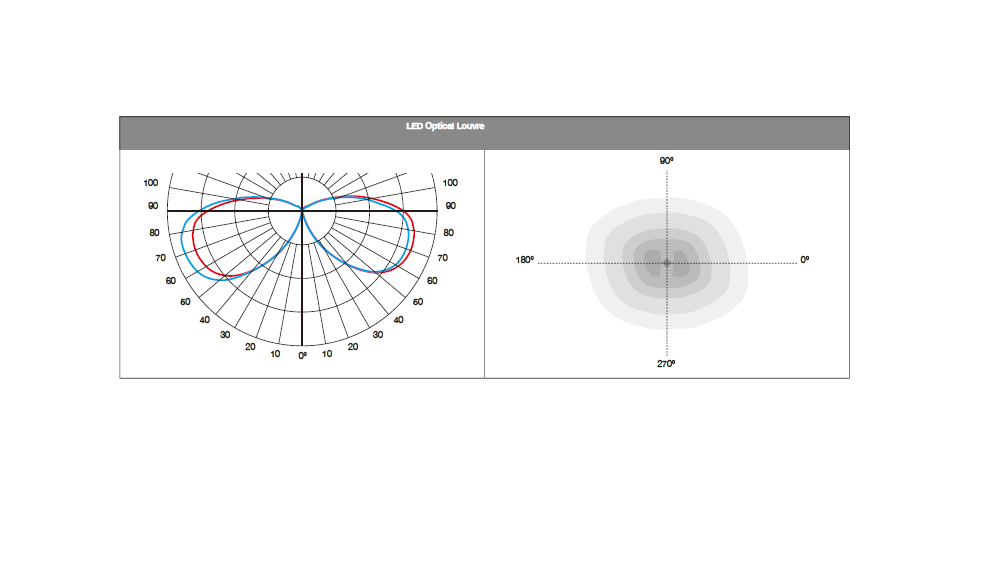

Beam Angle光束角ángulo de haz

Symmetric Angle
Luminaire Efficacy燈具效率

La eficacia de la luminaria

100m/w(2700K) 100m/w(3000K) 120m/w(40000K) 130m/w(5000K) 130m/w(6500K)
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

130m/w(2700K) 130m/w(3000K) 150m/w(40000K) 160m/w(5000K) 160m/w(6500K)
Housing materials 外殼材料

Materiales de la carcasa

Die-cast aluminum top cover, aluminum extruded column and transparent PMMA diffuser

壓鑄鋁頂蓋，鋁擠壓柱和抗紫外線透明PMMA擴散器

Cubierta superior de aluminio fundido a presión, columna de aluminio extruido y difusor de PMMA transparente anti UV
Housing Color 外殼顏色 color de la carcasa

White RAL 9003 / Black RAL 9005 / Gray RAL9006 / Dark Grey RAL 9023

RAL 9003 / 黑 RAL 9005 / 灰色 RAL9006 / 深灰 RAL 9023

arena RAL 9003 / Negro RAL 9005 / Gris RAL9006 / Gris oscuro RAL 9023
Ingress Protection-防護等級

Protección de ingreso

IP66
Mech impact protection機械衝擊保護

Protección contra impactos mecánicos

IK08
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación

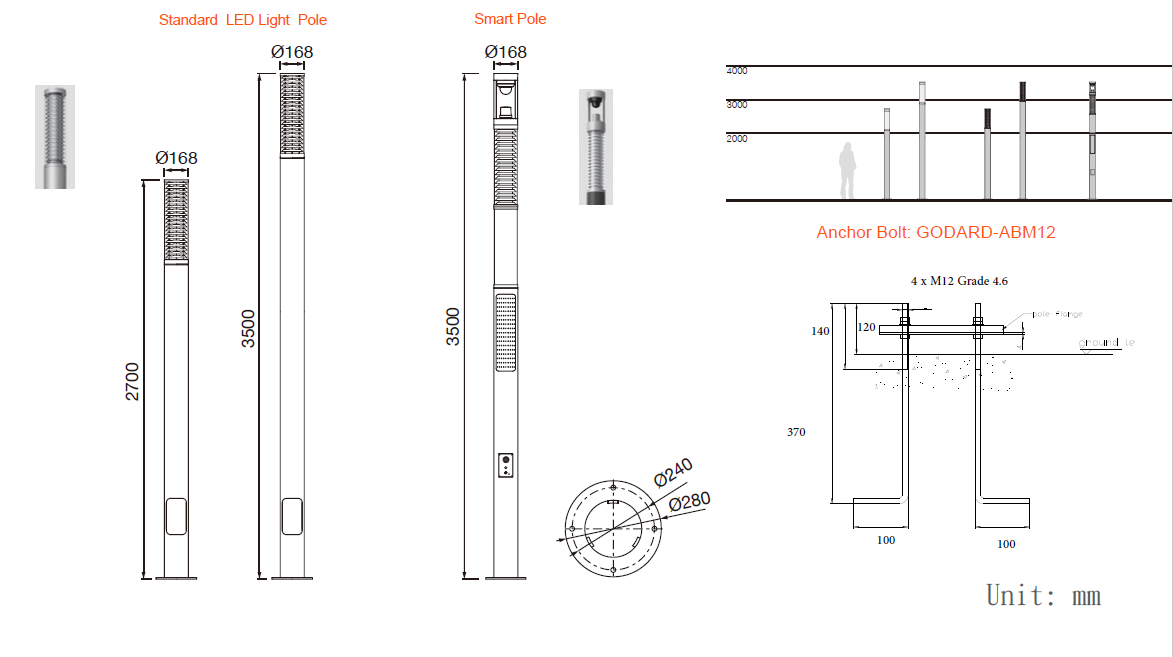

Dimension 尺寸 Dimensión

Standard LED Area Light : H: 2700mm / H: 3500mm

Smart LED Area Lgiht : H: 3500mm
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento

LED Luminaries: IEC/EN 60598-1 ; IEC/EN 60598-2-3; IEC TR 62778; IEC 62031

LED Driver: IEC 61347-1; IEC 61347-2-13; EN 55015; IEC 61000-3-2;IEC 61000-3-3;

IEC 61547;EN 62384
