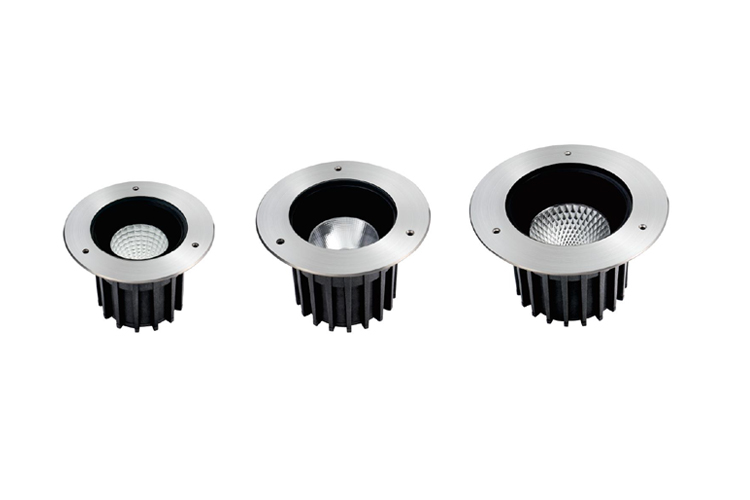

INTERY

D95 To D250mm 5W-25W Max IP67

INGROUND UP LIGHT

LED in-ground luminaires with small dimensions for flush-mounting installation.
The luminaire housing made of die-cast alumiumim and AISI 316 stainless steel
Cover with tempered glass and Anti-aging waterproof silicon gasket
Outer casing made of ABS material.
It’s as well a great alternative to urban furniture due to its IP67 protection rating and IK10.

Technical Data

Luminaire Type安裝方式Tipo de luminaria

Recessed In-Ground Type 內嵌式地埋燈 Empotrada en el suelo del Tipo
Power Consumption Max

燈具功率

Consumo de energía Max
Standard COB Version
- 5W @ Dia 95mm 10W @Dia 130mm 15W @ Dia 160 mm
- 20W @ Dia 180 mm 25W @ Dia 210 mm 30W @ Dia 250 mm

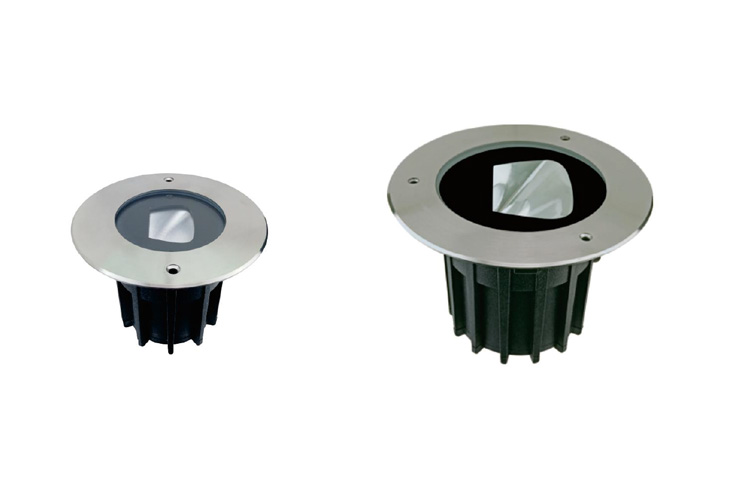

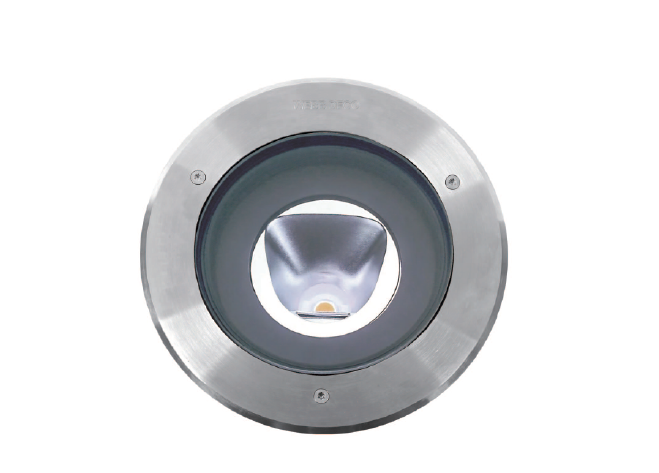

Asymmetric Angle
- 10W @ Dia 160 mm 15W @ Dia 180 mm
- 20W @ Dia 210 mm 25W @ Dia 250 mm
Input Voltage 輸入電壓

Voltaje de entrada
- AC100-240V @ MONO
- DC24V + DMX 512 @ MONO @ RGB or RGBW
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type  LED Driver--Refer to LED driver specification 請參閱LED驅動器規格 Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC100-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. Remote 0 -10V Dimming Driver  AC100-240V 50/60HZ

4. Remote Dali Dimming Driver AC100-240V 50/60HZ

5. Remote DMX Driver AC100-240V 50/60HZ

6. Remote DMX Driver AC100-240V 50/60HZ
Control Protocol控制協議Protocolo de Control

1-10V / Dali / DMX 512 / RDM

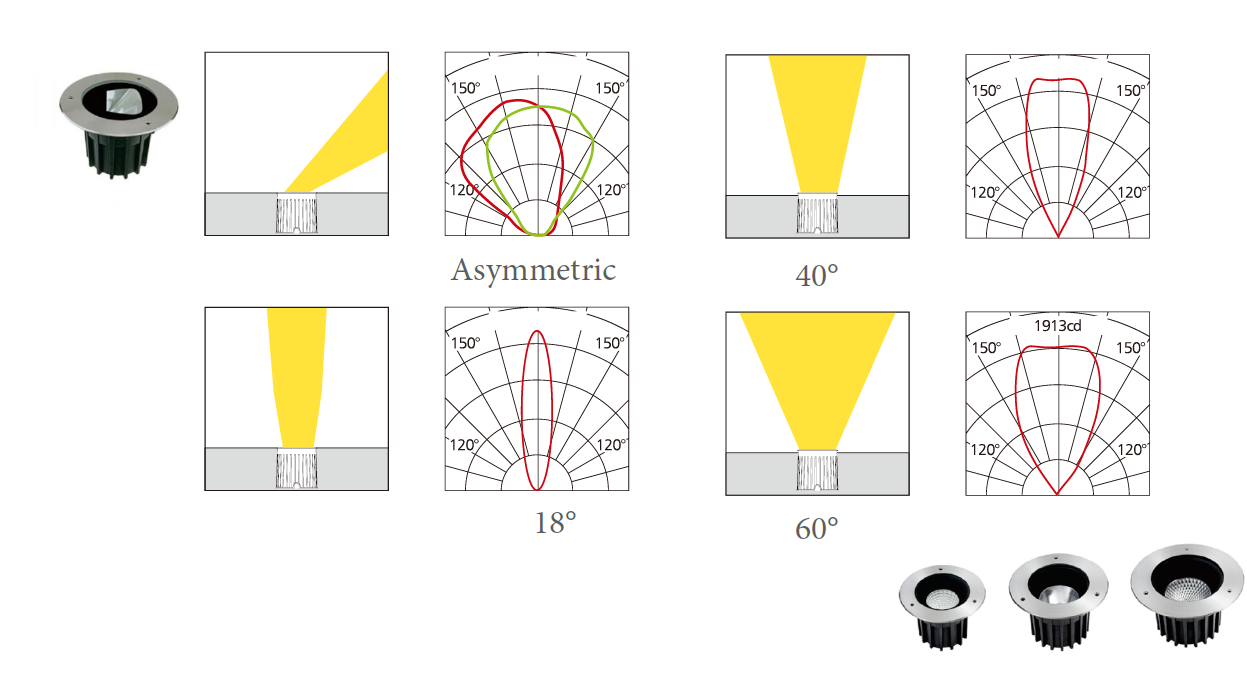

Beam Angle光束角ángulo de haz

18° 40° 60° and Asymmetric Angle
Light Source Brand/光源品牌

Fuente de luz de marca

CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"

L70(10k) > 60,000 hrs
LED Life/LED壽命 La vida del LED

>60,000 hours
Color Temperature / 色溫 /Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K / RGB / RGBW( 4000K or 5000K)
Color Rendering Index/顯色指數

Índice de reproducción cromática
- >80 for White Color LED
- >90 for White Color LED
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率

La eficacia de la luminaria
- 70 Lm/w(2700K), 70 Lm/w(3000K), 80 Lm/w(4000K),
- 80 Lm/w(5000K), 80 Lm/w(6500K), 50 Lm/w(RGB), 65 Lm/w (RGBW)
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia
- 120 Lm/w(2700K), 120 Lm/w(3000K), 130 Lm/w(4000K),
- 130Lm/w(5000K), 130 Lm/w(6500K), 100 Lm/w(RGB), 120lm/w (RGBW)
Housing materials/外殼材料

Materiales de la carcasa

Die cast aluminium , 8mm thick tempered glass wiht #316 Stainless Steel Cover

壓鑄鋁,8mm厚鋼化玻璃和#316不锈鋼面蓋

Aluminio fundido, vidrio templado de 8 mm de espesor con # 316 de la cubierta de acero inoxidable
Housing Color/ 外殼顏色

Color de la carcasa

#316 Stainless Steel Cover #316不锈鋼面蓋 # 316 de la cubierta de acero inoxidable
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Ingress Protection/ 防護等級

Protección de ingreso

IP67
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos

IK10

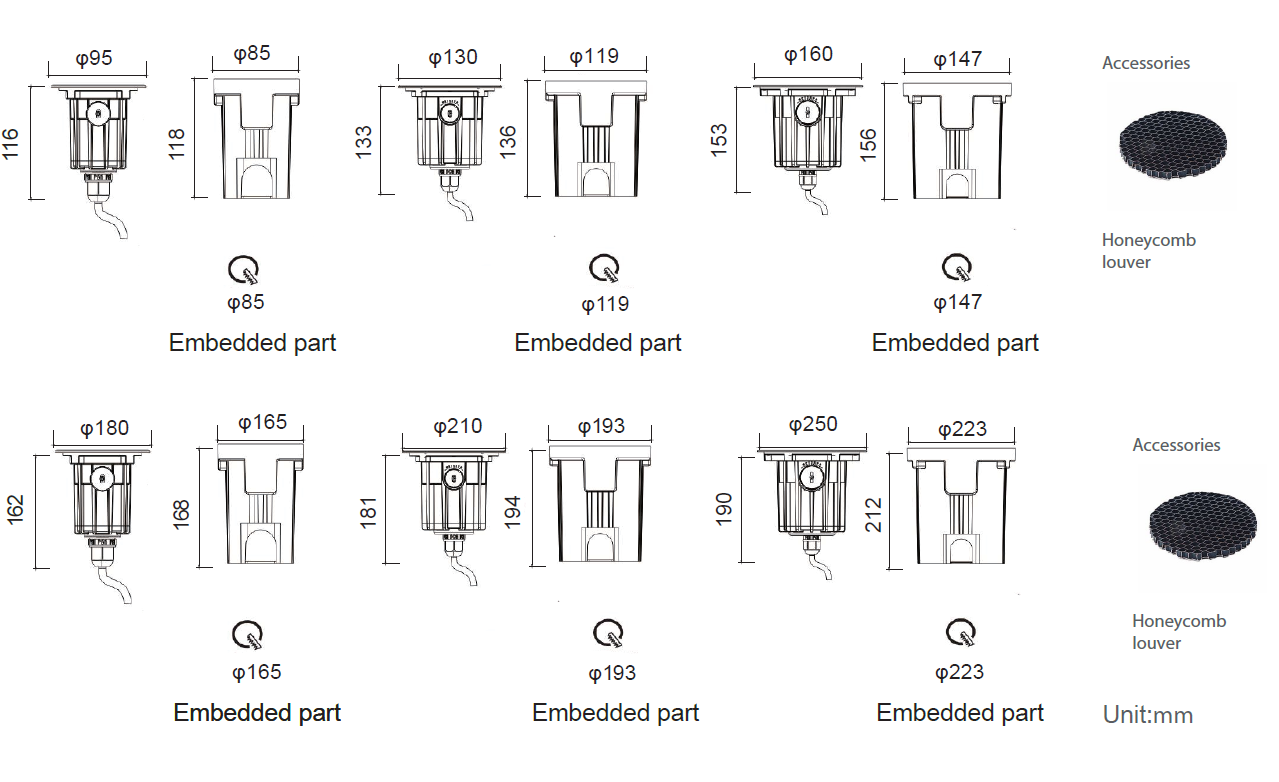

Dimension/尺寸 Dimensión

Refer to the Drawing 　請參考圖紙　　Consulte el dibujo
Comply Testing Standard 符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-13 / IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471 (Risk Group 1); RoHS TM21

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2; IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
