INTRAY

W41xH110mm 16W Max IP68 IK10

In-Ground Linear With IP68 protection

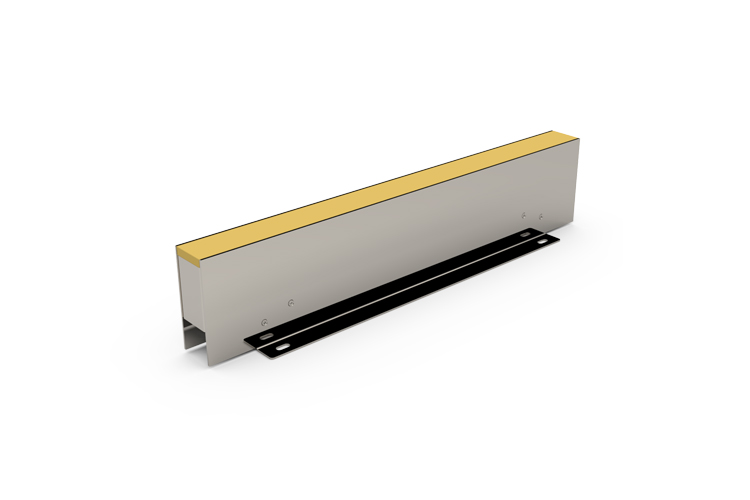

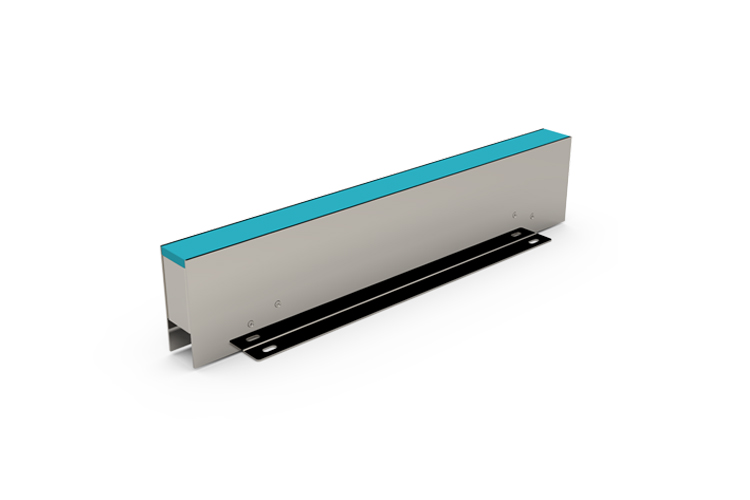

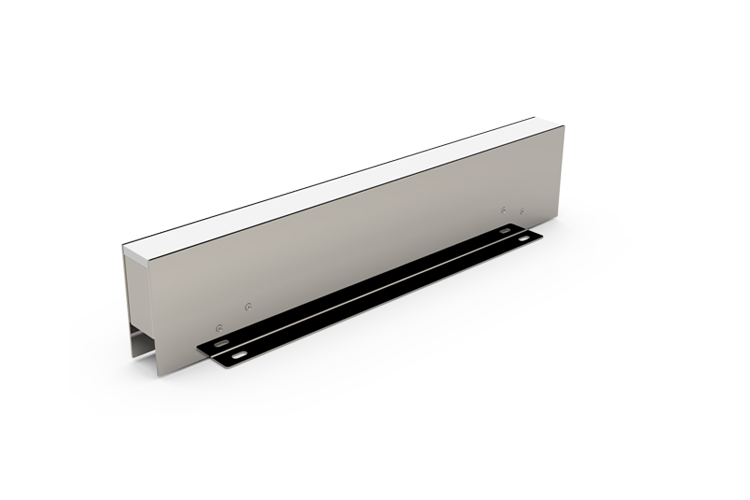

Dotless In-Ground Linear with IP68 protection is outdoor fixture with mono , RGB and RGBW color for façade application. It is able to be controlled by remote driver with 0-10V, Dali, DMX and RDM. This product suits perfectly to architectural contour lighting in buildings, ornamental light effects or integration instructors and facades. It’s as well a great alternative to urban furniture due to its IP68 and IK10 protection rating. Housing: 304# stainless steel with 15mm thickness white tempered glass.

Technical Data

Luminaire Type/ 安裝方式 Tipo de luminaria

Recessed In-Ground Type 內嵌式地埋燈 Empotrada en el suelo del Tipo
Color -顏色-Color
- RGBW (White: O: 2700K W: 3000K N: 4000K D:5000K C: 6500K)
- RGB
- Color Temperature Adjustment CTA ( 2700K to 6500K)
- MONO:2700K / 3000K / 4000K / 5000K / 6500K
Power Consumption Max 燈具最大功率

Consumo de energía Max
- 8W @ 600mm 16W @ 1200mm
- Tailor-made - 客制生產-Hecho a medida
Input Voltage / 輸入電 /Voltaje de entrada

DC24V
Pixels & DMX Channels //Meter

像素和DMX 通道/米

Píxeles y canales DMX // Metro

1Pixel (1 DMX Channel @ Mono; 3 DMX Channel @ RGB; 4 DMX Channel @ RGBW; 2 DMX Channel @CTA )
Control Protocol-控制協議

Protocolo de Control
- Remoted LED Driver for 1-10V / Dali
- Built- In DMX 512 / RDM
Color Range

顏色範圍

Gama de colores

16.7 Million additive RGB colors and White LED

1670萬RGB顏色配合白光LED

16.7 Millones de colores aditivos RGB; LED blanco
Mono, RGB or RGBW Color Resolution with Gamma correction

單色, RGB, RGBW顏色經過伽馬校正的分辨率

Resolución de color mono, RGB o RGBW con corrección gamma

16-bit gray scale control and Gamma correction, supports up to 65,536 gray scales for color depths

16位灰度控制，支持高達65,536個灰度級的顏色深度

control de escala de grises de 16 bits, soporta hasta 65.536 escalas de gris para profundidades de color

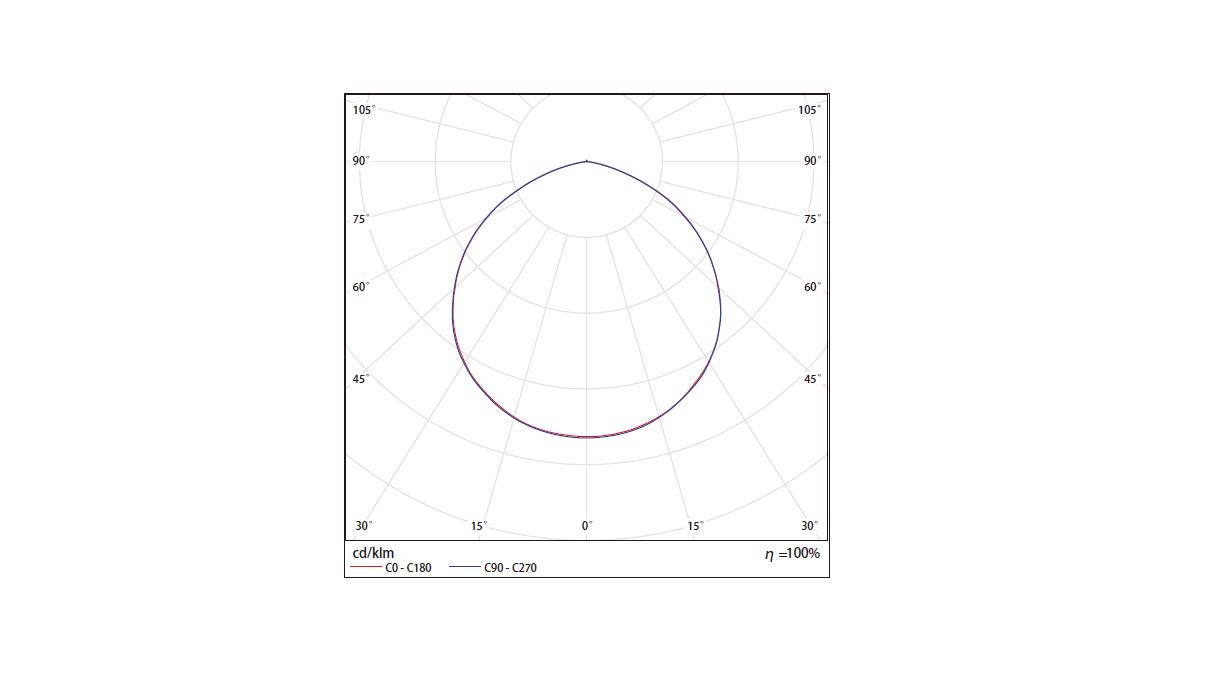

Beam Angle/光束角 ángulo de haz

110°
Light Source Brand/光源品牌

Fuente de luz de marca

CREE
Color Rendering Index-顯色指數

Índice de reproducción cromáca

>80 @ White LED >90 @ White LED
Lumen Maintenance Reported by TM-21

TM-21光衰壽命

Mantenimiento del lumen informado por TM-21

L90 > 40,700 hrs

L80 > 53,500 hrs

L70 > 53,500 hrs
LED Life/LED壽命 La vida del LED

>50,000 hours
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy-燈具效率

La eficacia de la luminaria
- 40lm/W @ RGBW 55 Lm/w(2700K) @ MONO 60 Lm/w(3000K) @ MONO
- 65 Lm/w(4000K) @ MONO 70 Lm/w(5000K) @ MONO 70 Lm/w(6500K) @ MONO
- 35 Lm/w @ RGB 65 Lm/w @ CTA
LED Source Luminous Efficacy-LED光源光效

Fuente luminosa LED Eficacia
- 80 Lm/W @ RGBW 120 Lm/w(2700K) @ MONO 120Lm/w(3000K) @ MONO
- 130 Lm/w(4000K) @ MONO 140 Lm/w(5000K) @ MONO 140 Lm/w(6500K) @ MONO
- 70 Lm/w @ RGB 120 Lm/w @ CTA
Housing materials/外殼材料

Materiales de la carcasa

304# stainless steel with 15mm thickness white tempered glass

304不鏽鋼燈體和15mm厚超白玻璃

Acero inoxidable 304 # con vidrio templado blanco de 15 mm de espesor
Ingress Protection/ 防護等級

Protección de ingreso

IP68
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos
IK10
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +60 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación

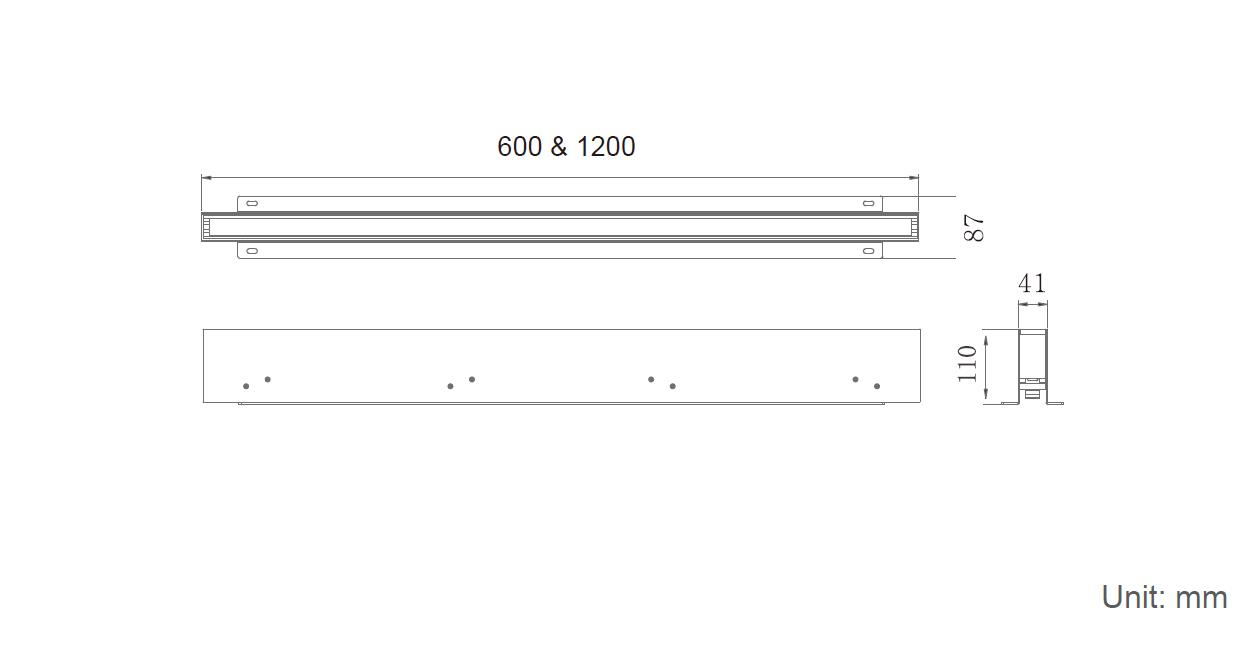

Dimension/尺寸Dimensión

(Lx W x H)
- 600 x 41 x 105 mm ( W: 87mm include mounting bracket )
- 1200 x 41 x 105 mm ( W: 87mm include mounting bracket )
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LVD Testing : EN 60598-1 / EN 60598-2-1 / EN62471 (RG1) / EN 62493 / EN 62031 / IEC 62262 Photometric data

EMC Testing : EN 55015 / EN 61547
