W:75 x H:71 x LXXXXmm

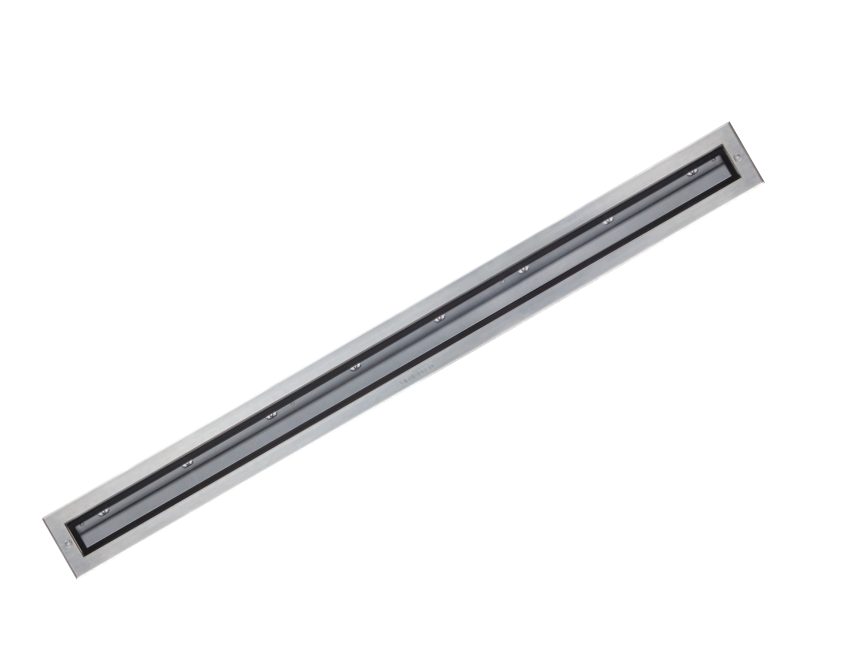

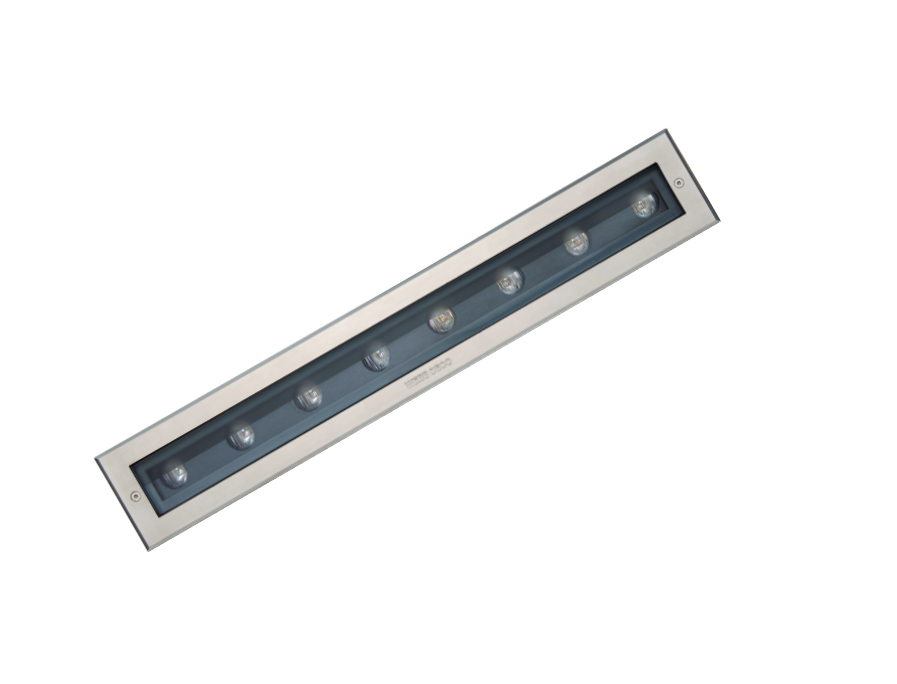

In-Ground Wallwasher Light with IP67 protection

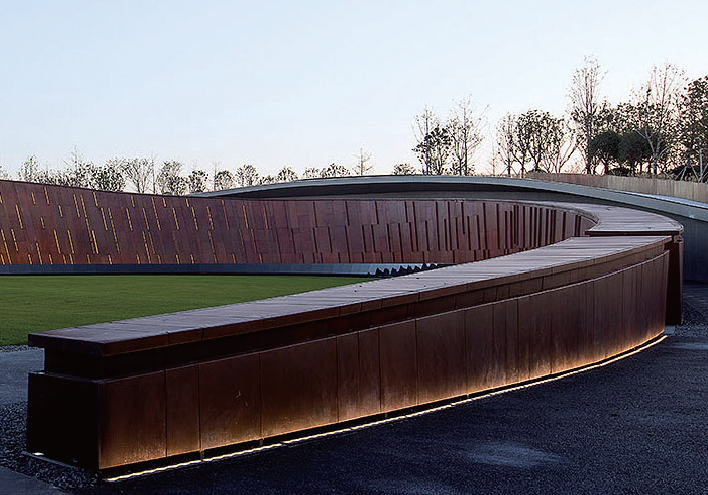

LED Wallwasher light is a indoor and outdoor fixture with Mono and RGB color for  façade application  . It is able to be controlled by 0-10V, Dali, DMX and RDM. This product suits perfectly to architectural contour lighting in buildings, ornamental colour effects or integration instructors and facades. Corrosion resistant aluminum housing and the end caps. 8mm clear safety glass. Anti-Aging waterproof silicone gasket. 316 stainless steel cover ring and screws with extrusion aluminum recessed box.

Technical Data

  • Luminaire Type/ 安裝方式

    Tipo de luminaria

    Recessed In-Ground Type / 內嵌式地埋燈

    Empotrada en el suelo del Tipo

  • Power Consumption Max

    燈具功率

    Consumo de energía Max

    • 10W @9 pcs High Power LEDs  L: 575 x W75: x H:100mm
    • 20W  @18 pcs High Power LEDs  L:1028 x W75: x H:100mm
    • Tailor-made - 客制生產-Hecho a medida

  • Input Voltage / 輸入電壓

    Voltaje de entrada

    • AC100-240V 50/60Hz
    • DC24V for (RGB +DMX512)

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Integrated-type LED Driver--Refer to LED driver specification

    請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC100-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 1-10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. DMX Driver AC100-240V 50/60HZ

    6. RDM Driver  AC100-240V 50/60HZ

  • LED Driver Features / 驅動特性

    Funciones del controlador de LED

    POWER FACTOR : PF>0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

    EFFICIENCY (Typ.): >90%

    MAX. No. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 40 units (circuit breaker of type C at 230VAC)

  • DMX Channel Per Luminaire

    燈具DMX

    Canal de DMX por luminaria-DMX

    • 1 DMX Channels  for MONO Color
    • 3 DMX Channels for RGB Color
    • Tailor-made - 客制生產-Hecho a medida

  • Control Protocol/控制協議

    Protocolo de Control

    1-10V / Dali/ DMX 512 / RDM

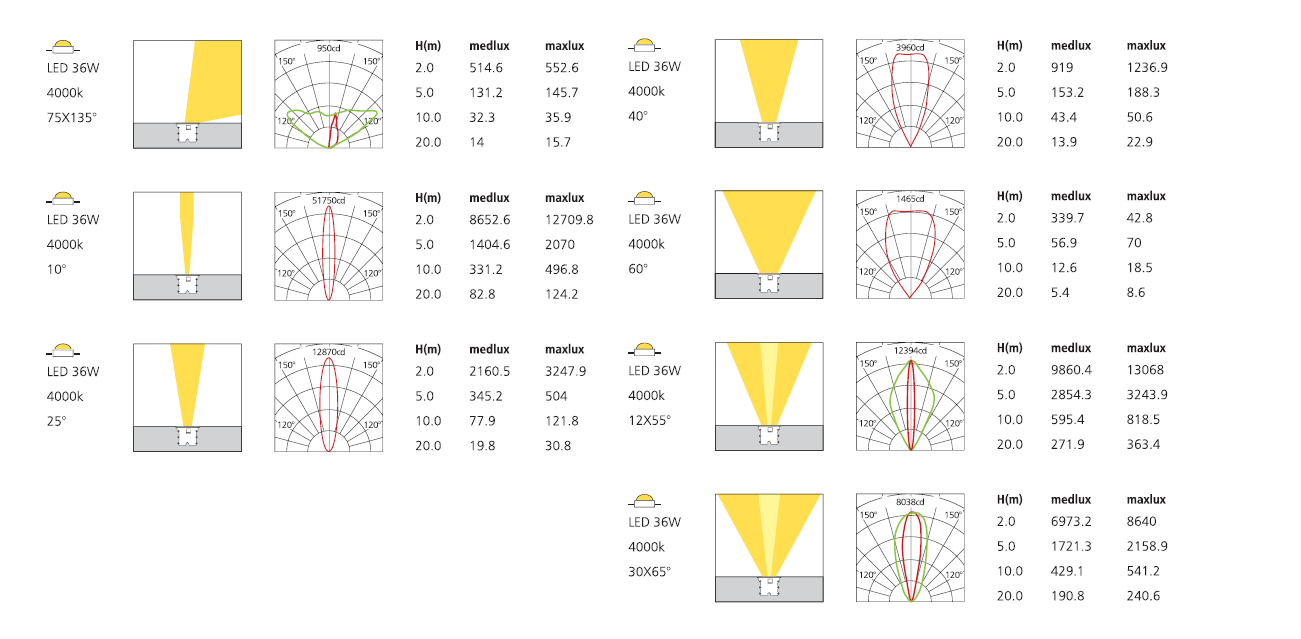

  • Beam Angle/光束角

    ángulo de haz

    Symmetric Angle-對稱發光角度-Ángulo simétrica

    • 15° (Lens with Clear Glass Diffusor)
    • 25° (Lens with Clear Glass Diffusor)
    • 40°(Lens with Clear Glass Diffusor)
    • 60°(Lens with Clear Glass Diffusor)
    • 12°x55° (Lens with Clear Glass Diffusor)
    • 30°x65°   (Lens with Clear Glass Diffusor)

    Assymetric beam angle : 75°x135°(Lens with Clear Glass Diffusor)

  • Light Source Brand/光源品牌

    Fuente de luz de marca

    CREE- ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"

     L90(10k) = 50,700 hrs / L80(10k) > 63,500 hrs /  L70(10k) > 63,500 hrs

  • LED Life/LED壽命 La vida del LED

    >60,000 hours

  • Color Temperature / 色溫

    Temperatura del color

    2700K / 3000K / 4000K/ 5000K/ 6500K

  • Color Rendering Index/顯色指數

    Índice de reproducción cromática



    >80@White Color

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 2 SCDM

    標準偏差配色 < 2 SCDM

    Coincidencia de color estándar Desviación

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    • 70lm/w(2700K) or (3000K)
    • 80lm/w(4000K)
    • 90lm/w(5000K) or (6500K)
    • 65lm/W@RGB

  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    • 100lm/w(2700K) or (3000K)
    • 105lm/w(4000K)
    • 120lm/w(5000K) or 120lm/w(6500K)
    • 85lm/W@RGB

  • Housing materials/外殼材料

    Materiales de la carcasa

    Aluminium Alloy and 8mm thick Tempered Glass -鋁合金和8毫米厚的鋼化玻璃

    Aleación de aluminio y vidrio templado de 8 mm de espesor.

  • Housing Color/ 外殼顏色

    Color de la carcasa

    • Stainless steel  SUS 316/不銹鋼SUS 316L面蓋//Cubierta SUS 316
    • Tailor-made/客制生產-Hecho a medida

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento



    -20 °C / +60 °C /  -4 °F / +124 °F



  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Ingress Protection/ 防護等級

    Protección de ingreso

    IP67

  • Dimension

    尺寸

    Dimensión

    • 10W @ L: 575 x W:75 x H:100mm
    • 20W  @ L:1028 x W:75 x H:100mm
    • Tailor-made-客制生產-Hecho a medida

  • Environment/ 使用環境

    Medio ambiente

    Outdoor /戶外/al aire libre

  • Net Weight/淨重/Peso Neto

    4.2 KG @ 9W 6.5KG @18W

  • Country of Origin 產地

    PRC 中國

  • Country of Design 設計國家

    United Kingdom 英國

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
WERCOO-10W-SW-S-30
WERCOO
-
Power Consumption
-
CONTROL TYPE
-
Beam Angle
-
Color Temperature / Color

Power Consumption

  • XXW
    Tailor-Made
  • 10W
    10W
  • 20W
    20W

CONTROL TYPE

  • SW
    100-240V AC ON/OFF
  • AN
    Analog 1-10V dimming
  • DA
    DALI diming
  • DMX
    DMX dimming +DC24V
  • RDM
    RDM Dimming+DC24V
  • EM
    Emergency Battery (Remote Type)

Beam Angle

  • ASW
    75°x135°
  • N
    10°
  • S
    25°
  • M
    40°
  • L
    60°
  • SN
    12°x55°
  • SW
    30°x65°

Color Temperature / Color

  • 30
    3000K
  • 27
    2700K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K
  • RGB
    RGB

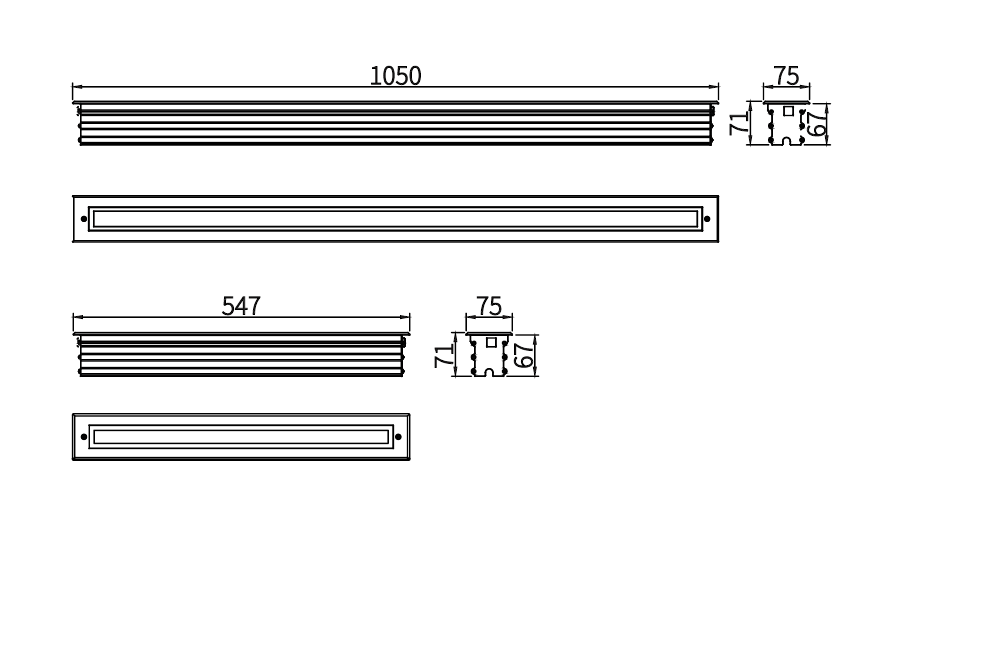

Technical Drawing
