STRAAP-LED MODULAR

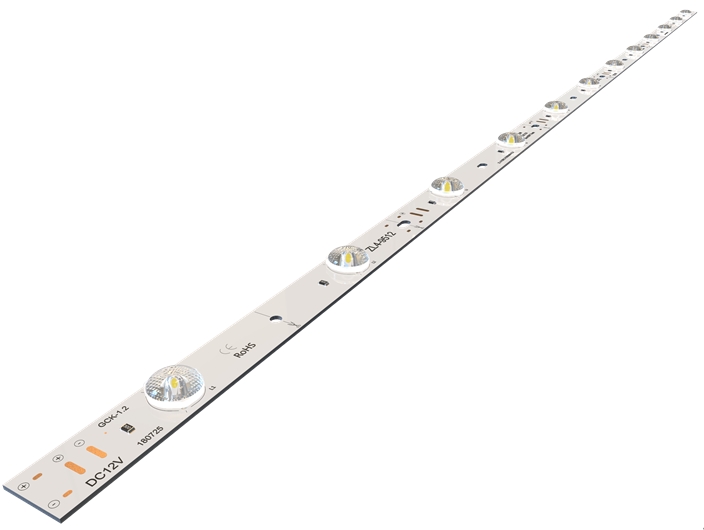

12LEDs 2835 SMD Light box bar

LED MODULE

The light source adopts high-quality 2835 large-size chip, with high brightness, long life and low attenuation;
Using a special secondary light distribution lens, it is suitable for light boxes no less than 3cm thick and produces uniform light;
Using aluminum substrate technology, heat dissipation is more direct and rapid;
Roller shutter style, easy to arrange, easy and neat installation;
The PCB has fixed holes for easy positioning;
The light strip supports one light and one cut, and can be cut arbitrarily according to requirements;

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Surface Mounted Type

明裝式燈具

Superficie Tipo Montado
Dimension-尺寸-Dimensión

Pitch -間距-Tono
- L:950 x W: 17 x H:6.2 mm
- 80mm
QTY of LEDs-燈珠數量-CANT de LEDs

12 pcs LEDs
Input Voltage-輸入電壓-Voltaje de entrada

DC12V
Power Consumption Max-燈具功率

Consumo de energía Max

12W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC220-240V 50/60Hz

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60Hz

3. 0 -10V Dimming Driver  AC100-240V 50/60Hz

4. Dali Dimming Driver AC100-240V 50/60Hz

5. DMX Driver AC100-240V 50/60Hz

6. RDM Driver  AC100-240V 50/60Hz
Control Protocol-控制協議

Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Beam Angle光束角ángulo de haz

170°
Light Source Brand-光源品牌-Fuente de luz de marca

SMD 2835 Epistar
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K

12000K

14000K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80 @ 2700K / 3000K / 4000K / 5000K / 6500K
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Flux 光通量

Flujo de luminarias

110 Lm/w(2700K), 110Lm/w(3000K), 120Lm/w(4000K),

130 Lm/w(5000K), 130 Lm/w(6500K),

130 Lm/w(1200K), 130 Lm/w(1400K),
Housing materials-外殼材料

Materiales de la carcasa

Aluminum PCB and PMMA Lens

鋁 PCB 和 PMMA 透鏡
Housing Color外殼顏色color de la carcasa

Milky乳白色Milky
Ingress Protection-防護等級

Protección de ingreso

IP20
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
