BOVE

BOVE

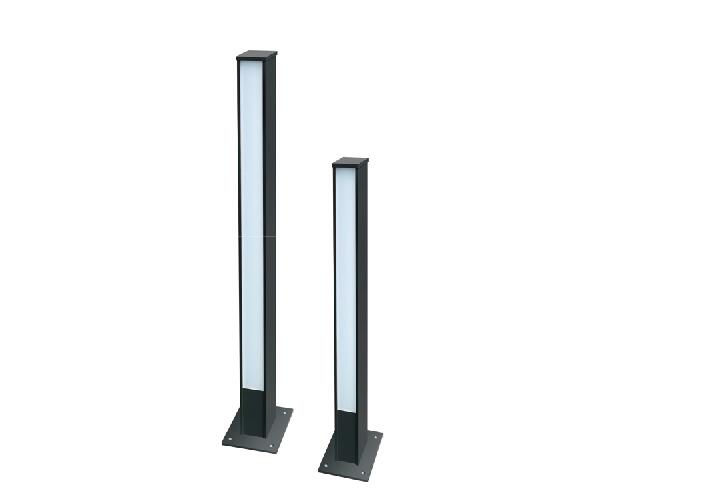

L82xW114xH780&1080 25W-40W
LED BOLLARDS LIGHT IP65

LED BOLLARDS Light with symmetrical light distribution and double side light.Die-casting aluminum body, extruded aluminum pole. Surface anti-ageing electrostatic spray processing. Remote-Type  ELV , 0-10V, DALI, DMX and RDM LED constant current control gear. LM-80 performance approval >50,000 hours. Anti-glare reflector lens system made of optical PMMA. Waterproof design with IP65 protection. For illuminating paths, streets, parking spaces and traffic-calmed areas.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    Surface Mounted Type

    明裝式燈具

    Superficie Tipo Montado

  • Dimension-尺寸-Dimensión

    L: 82 x W: 114 x H: 780 mm

    L: 82 x W: 114 x H: 1080 mm

    L: 160 x W: 210 mm (Mounting Base)



  • Power Consumption Max-燈具功率

    Consumo de energía Max

    25W

    40W

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC 100-240V 50/60Hz

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC100-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 220-240V 50/60HZ

    3. 0-10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

  • LED Driver Features

    驅動特性

    Funciones del controlador de LED

    POWER FACTOR : PF≧0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

    EFFICIENCY (Typ.): >90%

    MAX. No. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 40 units (circuit breaker of type C at 230VAC)

  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

  • Beam Angle

    光束角

    ángulo de haz



    360°



  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE - (Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk))

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    >80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria



    65 Lm/w(2700K),

    65 Lm/w(3000K),

    70 Lm/w(4000K),

    75 Lm/w(5000K),

    75 Lm/w(6500K),

  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia



    100 Lm/w(2700K),

    100 Lm/w(3000K),

    105 Lm/w(4000K),

    120 Lm/w(5000K),

    120 Lm/w(6500K)

  • Housing materials-外殼材料

    Materiales de la carcasa

    Aluminium and PMMA

    鋁和PMMA

    Aluminio y PMMA

  • Housing Color

    外殼顏色

    color de la carcasa



    Matte Black

    Matte White

    Dark Gray

    Customized finishing color

  • Ingress Protection-防護等級

    Protección de ingreso

    IP65 - (IEC 60529)

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Net Weight /Gross Weight

    淨重/毛重

    Peso Neto / Peso bruto

    5.6 kg @ 25W

    7.4 kg @ 40W

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-1 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
BOVE-25W-SW-40-MB-78
BOVE
-
Power Consumption
-
Remote LED Driver Type
-
Color Temperature
-
Housing Color
-
Fixture Type

Power Consumption

  • 25W
    25W
  • 40W
    40W

Remote LED Driver Type

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control
  • AN
    Analog 0-10V Dimming
  • DA
    DALI Dimming
  • ZI
    ZIGBEE Wireless Control

Color Temperature

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K

Housing Color

  • MB
    Matte Black
  • MW
    Matte White
  • DG
    Dark Gray
  • CC
    Customized Color

Fixture Type

  • 78
    Fixture height @780mm
  • 108
    Fixture height @1080mm

Technical Drawing
