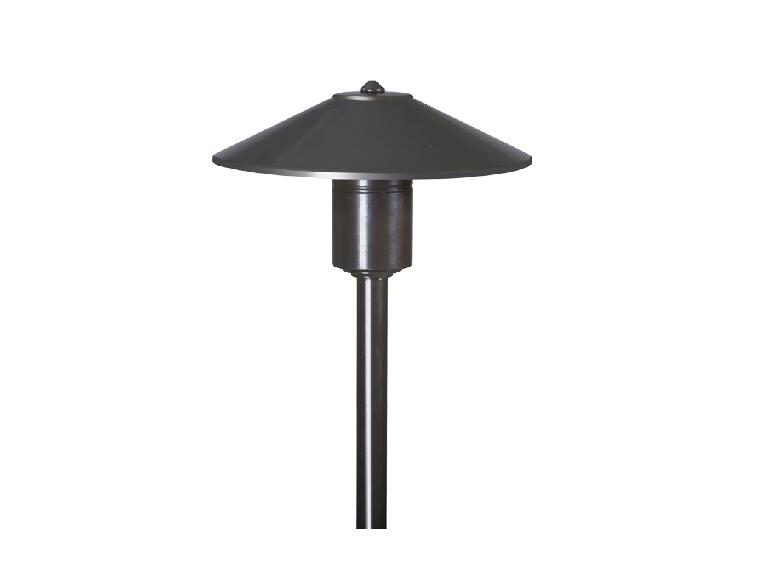

LARE

Dia.256xH837mm 8W IP65

LAWN Light IP65

Lawn light with symmetrical light distribution.Clear synthetic cover and internal lamellar reflector for brilliant directed light. Remote-Type ELV , 0-10V,DALI,DMX and RDM LED constant current control gear. LM-80 performance approve >50,000 hours. Anti-glare reflector Lens system made of optical PMMA. Waterproof design with IP65 protection.For illuminating paths, streets, parking spaces and traffic-calmed areas.

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Surface Mounted Type

明裝式燈具

Superficie Tipo Montado
Dimension-尺寸-Dimensión

DIA 256x H 837mm
Power Consumption Max-燈具功率

Consumo de energía Max

6W
Input Voltage-輸入電壓-Voltaje de entrada

24VDC
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC220-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 220-240V 50/60HZ

3. 1-10V Dimming Driver  AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ

6. RDM Driver  AC100-240V 50/60HZ

7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
Control Protocol-控制協議

Protocolo de Control

1-10V / Dali/ DMX 512 / RDM
Beam Angle

光束角

ángulo de haz

360°
Light Source Brand-光源品牌-Fuente de luz de marca

CREE
"Lumen Maintenance LM-80 Reported by TM-21"

1. L90(10k) = 50,700 hrs

2. L80(10k) > 63,500 hrs

3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K/ 5000K/ 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

>80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SCDM

標準偏差配色< 3 SCDM

Coincidencia de color estándar Desviación < 3 SCDM
Luminaire Efficacy

燈具效率

La eficacia de la luminaria

20lm/w(2700K),

20lm/w(3000K),

25lm/w(4000K),

30lm/w(5000K),

35lm/w(6500K)
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia

100lm/w(2700K),

100lm/w(3000K),

105m/w(4000K),

120lm/w(5000K),

120lm/w(6500K)
Housing materials-外殼材料

Materiales de la carcasa

Die cast aluminium and PMMA / 壓鑄鋁和PMMA

Die fundición de aluminio y PMMA
Housing Color

外殼顏色

color de la carcasa

Matte Black

啞光黑色

Negro mate
Ingress Protection-防護等級

Protección de ingreso

IP65
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
