LOBITY

50W Max IP65

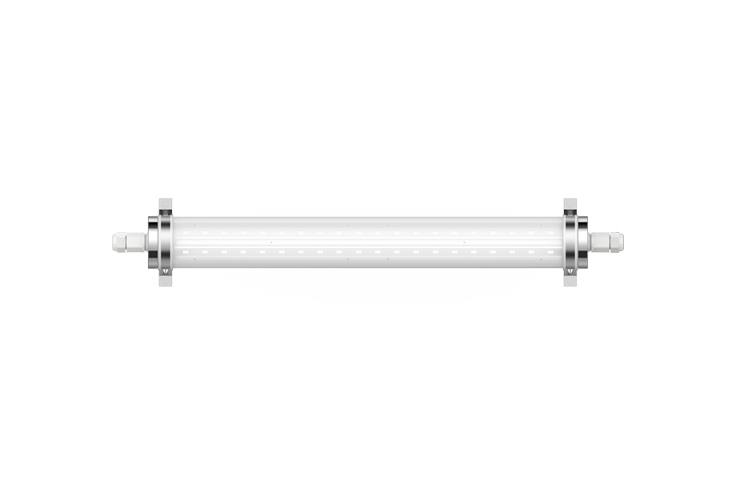

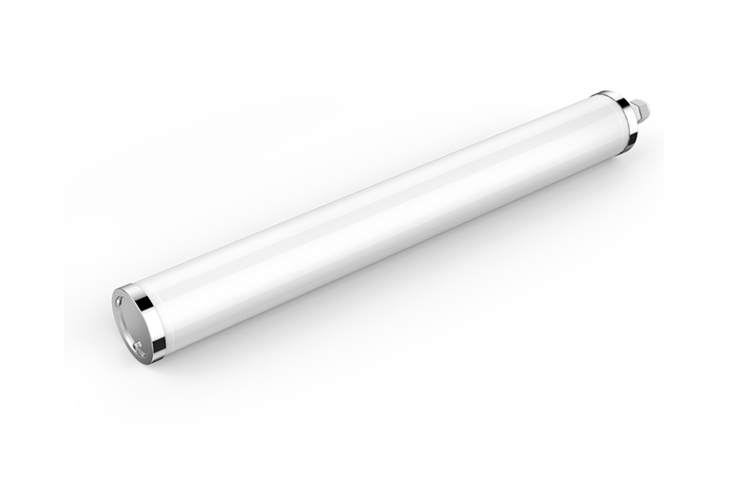

LED LINEAR PENDANT LIGHT

LED LINEAR PENDANT LIGHT is perfectly suited for harsh conditions in highly polluted environments where a high level of quality lighting is needed. Rated IP65 with an IK10 shock rating, the tubular light
is suit for water, dust, humidity, corrosion, and other harsh elementswith ease.

• Anti-ammonia
• High Lumen output
• Special-designed PC optics lens

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

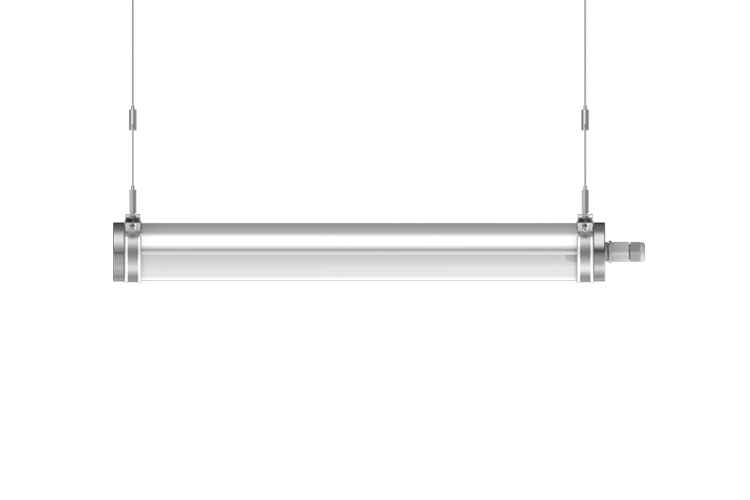

Pendant and Suface Mounted 吊裝 & 明裝

Colgante y montaje en superficie
Dimension-尺寸-Dimensión
- 120 x 84 x 600 mm
- 120 x 84 x 1128 mm
- 120 x 84 x 1390 mm
Power Consumption with LED Driver

LED燈具包括LED驅動電源功率

Consumo de energía con controlador de LED
- 20 W 40 W 50 W
Input Voltage / 輸入電壓

Voltaje de entrada

220-240V/AC 50/60Hz
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Constant Current LED Driver

Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC220-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0-10V Dimming Driver AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ

6. RDM Driver AC100-240V 50/60HZ

7. ZIGBEE Wireless Control (Remoted Driver ) AC100-240V 50/60HZ

8. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

1kV line-line 2kV line-earth
LED Driver Features Constant Current LED Driver:

驅動特性-恆流LED驅動器

Funciones del controlador de LED

POWER FACTOR : PF>0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol/控制協議/Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Light Source Brand-光源品牌-Fuente de luz de marca

CREE -( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"

1. L90(10k) = 50,700 hrs

2. L80(10k) > 63,500 hrs

3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

>80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Beam Angle

光束角

ángulo de haz
- 60°
- 90°
- 105° x 135°
Luminaire Efficacy燈具效率

La eficacia de la luminaria
- 140 Lm/w(3000K) 140 Lm/w(4000K) 1 45 Lm/w(5000K) 145 Lm/w(6500K)
LED Source Luminous Efficacy

LED光源光效Fuente luminosa LED Eficacia
- 160 Lm/w(3000K) 160 Lm/w(4000K) 170 Lm/w(5000K) 170 Lm/w(6500K)
Housing materials-外殼材料

Materiales de la carcasa

Stainless steel and Polycarbonate Optical Lens

不锈钢和聚碳酸酯光學鏡片

Lente óptica de acero inoxidable y policarbonato
Housing Color

外殼顏色

color de la carcasa

Stainless steel and Polycarbonate Optical Lens
Ingress Protection-防護等級

Protección de ingreso

IP65
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Net Weight

淨重

Peso Neto
- 1.10k±0.2kg @ 20W
- 1.62±0.2kg @ 40W
- 1.96±0.2kg @ 50W
Gross Weight

毛重

Peso bruto
- 19.32±0.2kg @ 12PCS/CTN @ 20W
- 19.97±0.2kg @ 9PCS/CTN @ 40W
- 16.24±0.2kg @ 6PCS/CTN @ 50W
Export Carton Size

包裝尺寸

Tamaño del cartón de exportación
- 867*445*340 mm @ 20W
- 1400*335*340 mm @ 40W
- 1660*335*235 mm @ 50W
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471 TM21

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2 IEC/EN 61000-3-3;IEC/EN61574;

EN 55015 ; IEC /EN 62384
