W:28mm 10W Max IP66
COLOR LINEAR

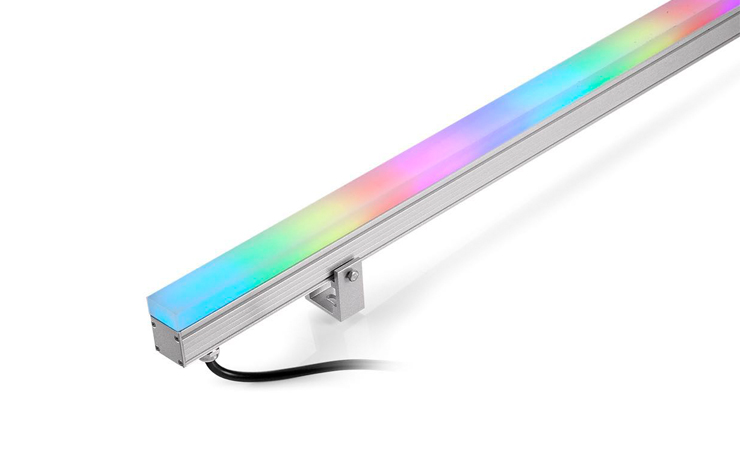

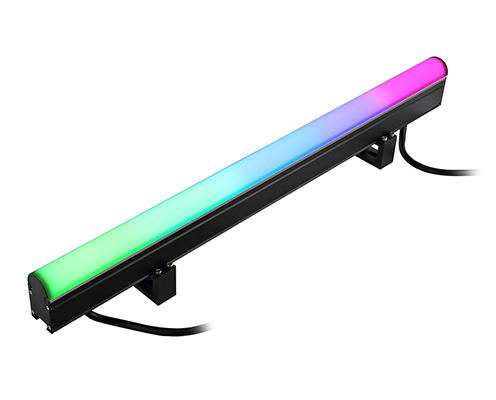

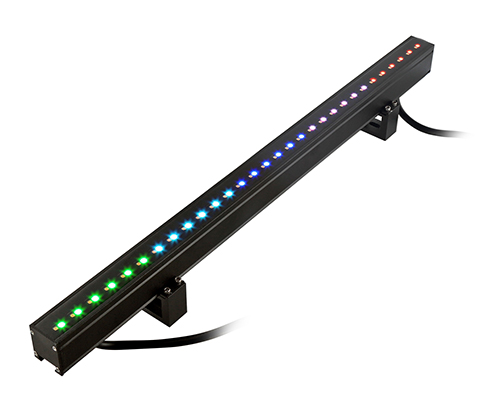

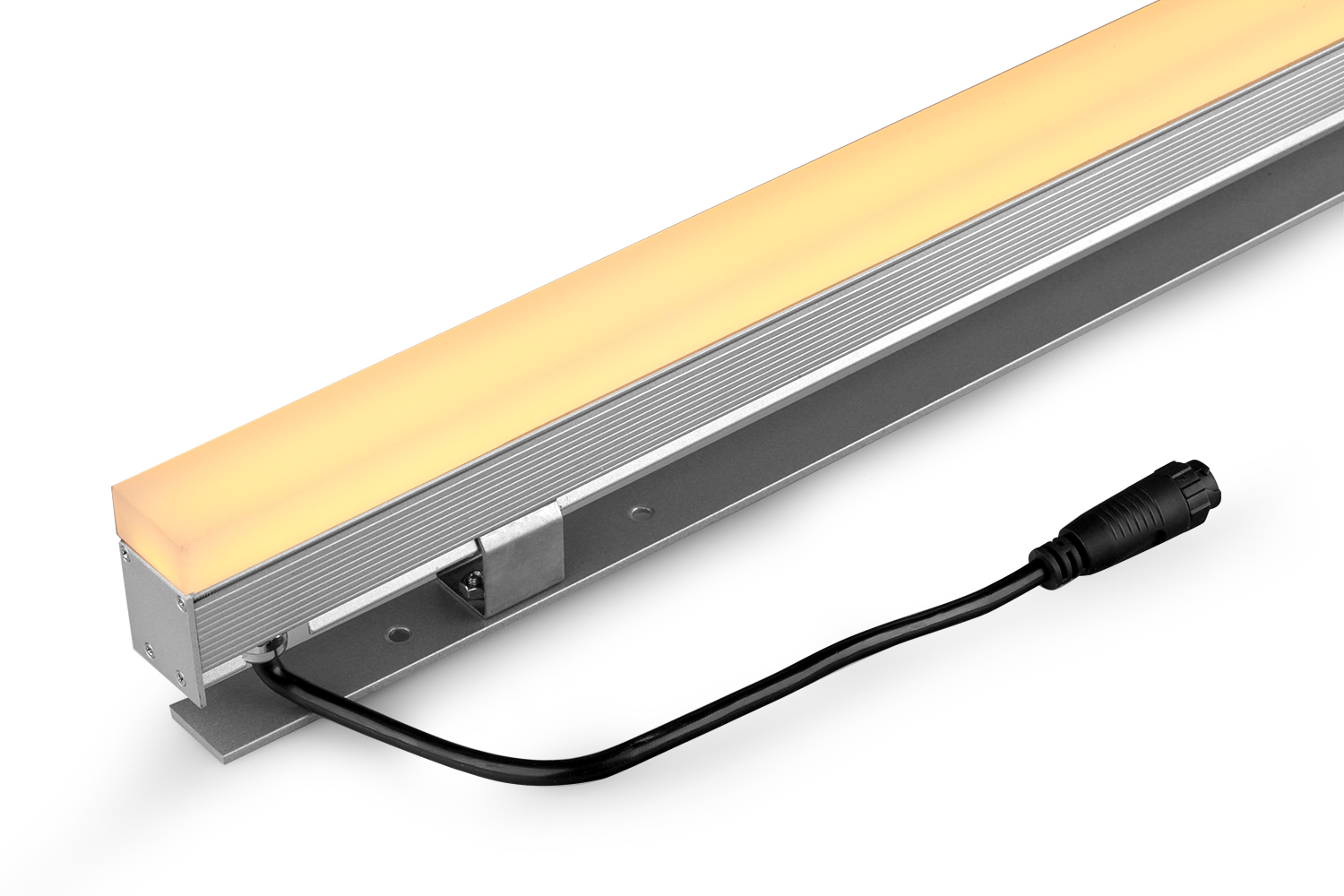

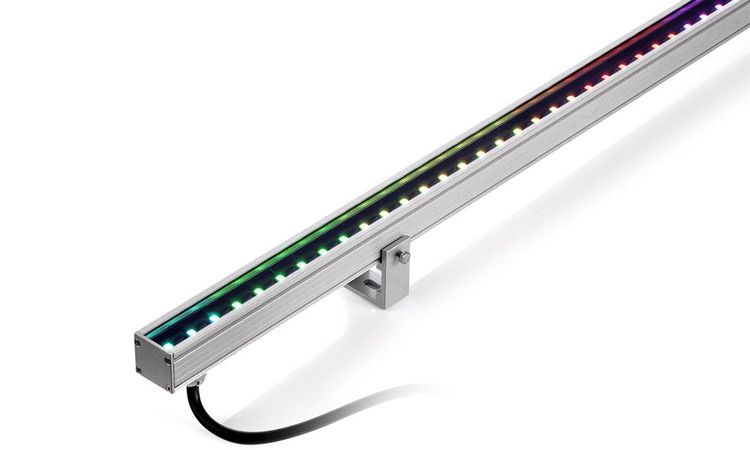

LED COLOR LINEAR is a indoor and outdoor fixture with RGBW or MONO color for media façade application. It is able to be controlled by DMX and RDM. Built-in 16-bit PWM embedded LED IC, featuring 16-bit gray scale control, supports up to 65,536 gray scales for color depths. The high visual refresh rate can facilitate CCD cameras and video cameras to capture the full video images in real time without flickers.

Technical Data

  • Luminaire Type/ 安裝方式

    Tipo de luminaria

    Surface Mount and Adjustable Type

    明裝可調安裝腳

    Tipo mount en superficie y ajustable

  • Color -顏色-Color

    • RGBO (Orange White: 2700K)
    • RGBW (Warm White: 3000K)
    • RGBN( Nature White: 4000K)
    • RGBD ( Day White: 5000K)
    • RGBC (Cool White:  6500K)
    • MONO:2700K / 3000K / 4000K / 5000K / 6500K
  • Power Consumption Max

    燈具最大功率

    Consumo de energía Max

    • 5W @ RGBW @  L: 500mm @ 30PCS LEDS
    • 10W @ RGBW @  L: 1000mm @ 60PCS LEDS
    • 5W @ MONO @  L: 500mm @ 30PCS LEDS
    • 10W @ MONO @  L: 1000mm @ 60PCS LEDS
    • Tailor-made - 客制生產-Hecho a medida



  • Pixels & DMX Channels

     像素和DMX 通道

    Píxeles y canales DMX



    5 PXL =20 DMX Channels @  L:500 mm

    10 PXL= 40 DMX Channels @  L:1000 mm

    1 PXL =4 DMX Channels @  One fixture

    Tailor-made - 客制生產-Hecho a medida

  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512 / RDM

  • Input Voltage / 輸入電壓

    Voltaje de entrada

    DC24V

  • Color Range

    顏色範圍

    Gama de colores

    16.7 Million additive RGB colors and White LED

    1670萬RGB顏色配合白光LED

    16.7 Millones de colores aditivos RGB; LED blanco

  • RGBW Color Resolution with Gamma correction

    RGBW顏色經過伽馬校正的分辨率

    Resolución de color RGB W con la corrección de gamma

    4 x 16-bit gray scale control and Gamma correction, supports up to 65,536 gray scales for color depths

    4 x 16位灰度控制,支持高達65,536個灰度級的顏色深度

    4 x control de escala de grises de 16 bits, soporta hasta 65.536 escalas de gris para profundidades de color



  • Beam Angle/光束角

    ángulo de haz

    • 110° @ Type A
    • 110° x 150°  @ Type B&C
  • Light Source Brand/光源品牌

    Fuente de luz de marca

    NICHIA - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • LED Life/LED壽命

    La vida del LED

    >50,000 hours

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy-燈具效率

    La eficacia de la luminaria

    • 40 Lm/w @ RGBO @ Full Load
    • 40 Lm/w @ RGBW @ Full Load
    • 50 Lm/w @ RGBN @ Full Load
    • 55 Lm/w @ RGBD @ Full Load
    • 55 Lm/w @ RGBC @ Full Load
    • 70 Lm/w(2700K) @ MONO
    • 70 Lm/w(3000K) @ MONO
    • 75 Lm/w(4000K) @ MONO
    • 80 Lm/w(5000K) @ MONO
    • 80  Lm/w(6500K) @ MONO
  • LED Source Luminous Efficacy-LED光源光效

    Fuente luminosa LED Eficacia

    • 50 Lm/w @ RGBO @ Full Load
    • 50 Lm/w @ RGBW @ Full Load
    • 60 Lm/w @ RGBN @ Full Load
    • 70 Lm/w @ RGBD @ Full Load
    • 70 Lm/w @ RGBC @ Full Load
    • 100 Lm/w(2700K) @MONO
    • 100 Lm/w(3000K) @MONO
    • 105 Lm/w(4000K) @MONO
    • 120 Lm/w(5000K) @MONO
    • 120 Lm/w(6500K) @MONO
  • Housing materials/外殼材料

    Materiales de la carcasa

    Aluminium Alloy -鋁合金

    Aleación de aluminio

  • Trim Housing Color/ 邊框殼顏色



    Anodised Aluminium Titanium 陽極氧化鋁鈦

    Anodised Aluminium Black 陽極氧化鋁黑

    Aluminio anodizado Negro

    Tailor-made/客制生產-Hecho a medida

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento



    -20 °C / +60 °C



  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Ingress Protection/ 防護等級

    Protección de ingreso

    IP66 - (IEC 60529)

  • Dimension/尺寸

    Dimensión

    • TYPE A: W28 x H56 x L1000 mm (With bracket)
    • TYPE B: W28 x H67 x L1000 mm (With bracket)
    • TYPE C: W28 x H69 x L1000 mm (With bracket)
  • Environment/ 使用環境

    Medio ambiente

    Outdoor /戶外/al aire libre

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-3 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1  / IEC 61347-2-13 6 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
LACKE-10W-RGBN-10P-AT-A-DMX
LACKE
-
Power Consumption
-
Color Tempreture
-
PIXELS
-
House Color
-
FIXTURE TYPE
-
Control Type

Power Consumption

  • 5W
    5W@L:500mm
  • 10W
    10W@L:1000mm
  • XXW
    Tailor-Made

Color Tempreture

  • RGBO
    RGBO(2700K)
  • RGBW
    RGBW(3000K)
  • RGBN
    RGBN(4000K)
  • RGBD
    RGBD(5000K)
  • RGBC
    RGBC(6500K)
  • 27
    2700K@MONO
  • 30
    3000K@MONO
  • 40
    4000K@MONO
  • 50
    5000K@MONO
  • 65
    6500K@MONO

PIXELS

  • 1P
    1 Pixel / One Fixture
  • 10P
    10 Pixels / Meter
  • TP
    Tailor-Made

House Color

  • AB
    Anodised Aluminium Black
  • AT
    Anodised Aluminium Titanium

FIXTURE TYPE

  • A
    Fixture Type A
  • B
    Fixture Type B
  • C
    Fixture Type C

Control Type

  • DMX
    DMX
  • RDM
    RDM
  • SW
    ON/OFF Switch DC24V
  • AN
    Analog 0-10V Dimming
  • DA
    DALI Dimming

Technical Drawing

Accessories

  • MANYA
  • SLADE
  • CORE-DMX SPLITER
  • HLG-320H
