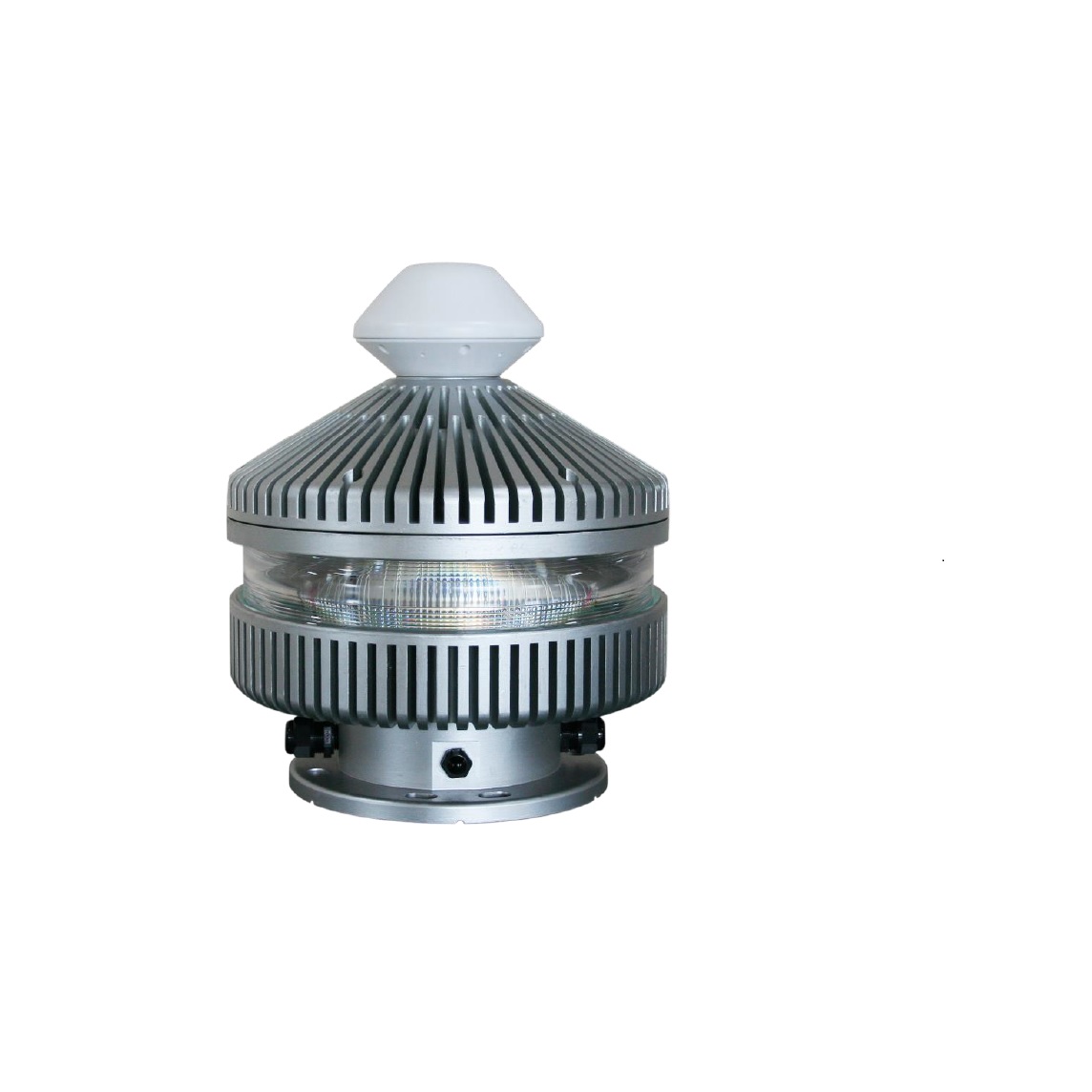

PACIFIC- X-15NM

10-15NM-Selfcontained Marine Lartern
Maximum range 15nm

User selectable power and flash character settings via DM Bluetooth-Smart App (Android Base)

Max Distance up to 15nm

It can be widely used in inland rivers, Coastal and harbor light buoys.

This series of lamps is composed of LED point light source, lens, solar panel and weather-resistant material base.

The lamp can easily realize the remote measurement and control of the  lantern through the NB-IoT or 4G communication method with DIMON Marine Monitoring system App.

The GPS high-precision clock is used to realize the synchronous flash function;

the maximum range is 15 nautical miles, the vertical divergence angle is 2.5 degrees, and the horizontal divergence angle is 360 degrees.

Technical Data

  • Features

    Long Life -LED Light Source

    Optional GPS synchronisation module

    15 levels of luminous intensity adjustment to adapt to different range requirements.

    Available in all IALA approved colours

    256 user selectable flash characters and selectable dayligt sensor

    User selectable power and flash character settings via BLUE-Tooth 5.0 up to 80meter

    Optional Control protocol : NB-IoT for Long Distance Wireless control

    Optional  GNSS synchronized-conotrol  flash function  by GPS or   BDS

    Optional 4G wireless DIMON Monitoring system for comprehensive fault alarm and status monitoring.

    Ingress Protection: IP67

  • Selectable Range

    (T=0.74)

    10-15 nautical miles selectable

  • Available Colours

    • Red
    • Green
    • Yellow
    • White

  • Visibility

    360° horizon (omnidirectional)360°

  • Vertical Divergence

    2.5°

  • Flash Codes

    Up to 256 codes IALA , field selectable

  • Synchronisation

     GPS-Global Positioning System

    or

     BDS-BeiDou Navigation Satellite

  • Daylight (Lux)  Sensor



    Default 300Lux   (100~1000Lux adjustable)

  • POWER

    LED Lamp Input Voltage



    300W

    DC24V

  • Control Protocol Selection:

    • BLUE Tooth 5.0 up to 80meter for IALA Flasing Code, Lux Sensor and Distance setting. Settting and Monitoring by DM Bluetooth -Smart App Setting
    • AIS
    • 4G Wireless control system: Overvoltage and Undervoltage, Fault, Position offset report by PC IOT Software

  • Net Weight

    18KG

  • Dimension

    Dia 320mm x H:383 mm

  • Operating Temperature Range

    -30° to +60°C

  • Ingress Protection

    IP 67

  • Housing materials

    UV resistant molded polycarbonate

  • Certification

Specification Code

Example Product Code:
PACIFIC- X-15NM-R-GPS
PACIFIC--X-15NM
-
Color
-
Synchronisation
-
Control

Color

  • R
    Red
  • G
    Green
  • Y
    Yellow
  • W
    White

Synchronisation

  • GPS
    GPS
  • BSD
    BDS-BeiDou Navigation Satellite

Control

  • AIS
    AIS
  • 4G
    4G Wireless control system
