Slim BAWATY Waterproof Batten

For LED T5 and T8
Waterproof Batten IP66

Well design for resistant Dust and Moisture resistance and waterproof.

Anti-UV  Light Grey Glass fibre reinforced polyester (FRP)and and high transmission Anti-UV Clear polycarbonate diffuser.

Silicone-sponge Gasket , stainless steel toggles and stainless-steel Quick fix bracket. Ingress-protected to a level of IP66.

Comply with Hot Wire Testing: 850°C.

Technical Data

  • Luminaire Type / 安裝方式 / Tipo de luminaria

    Pendent mounted Type / Surface mounted Type / Wall Mounted Type

    吊裝燈具 / 吸頂式燈具 / 壁掛式燈具

    Pendent  tipo  / Surface mounted / Tipo montado en la pared

  • Dimension / 尺寸 / Dimensión

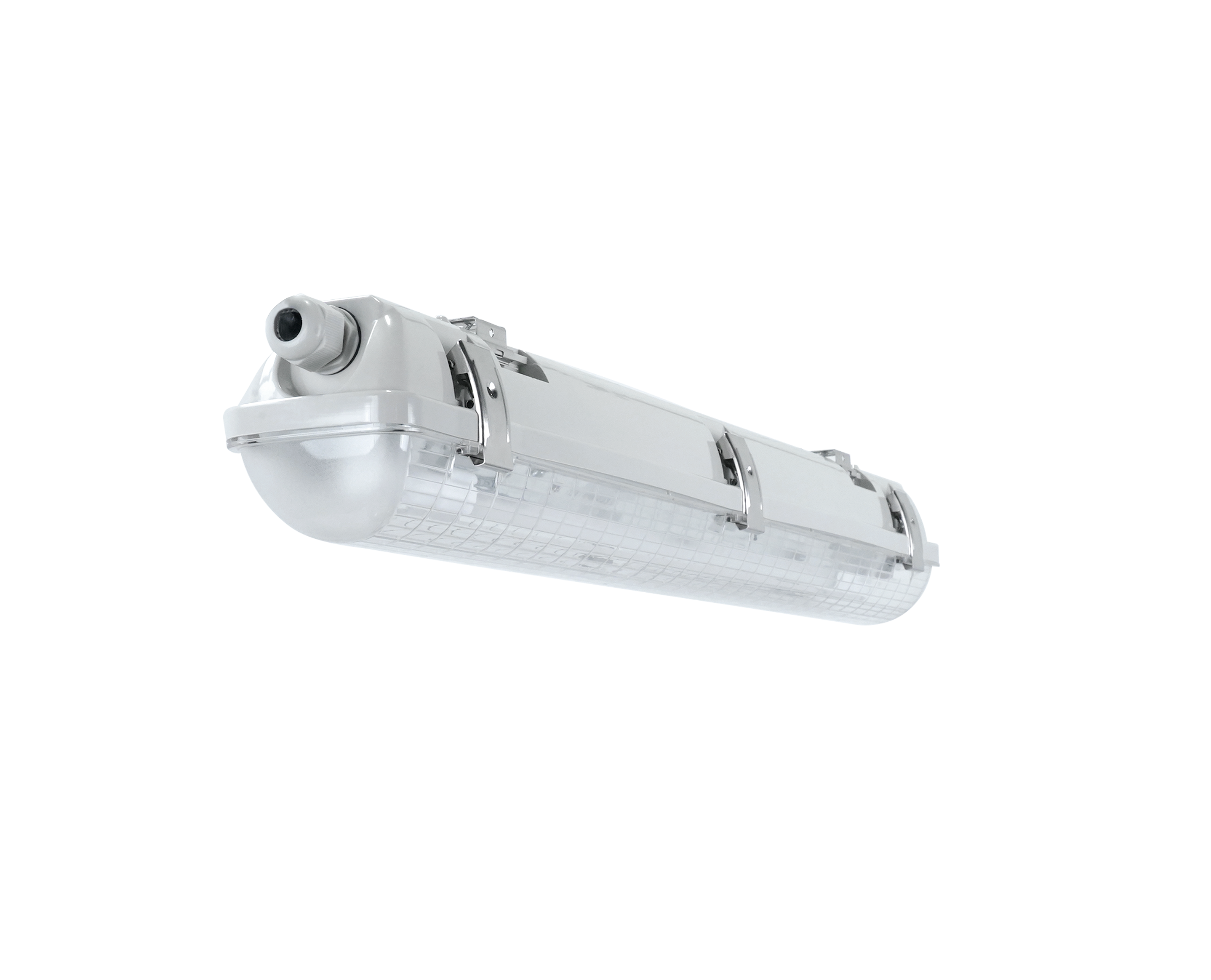

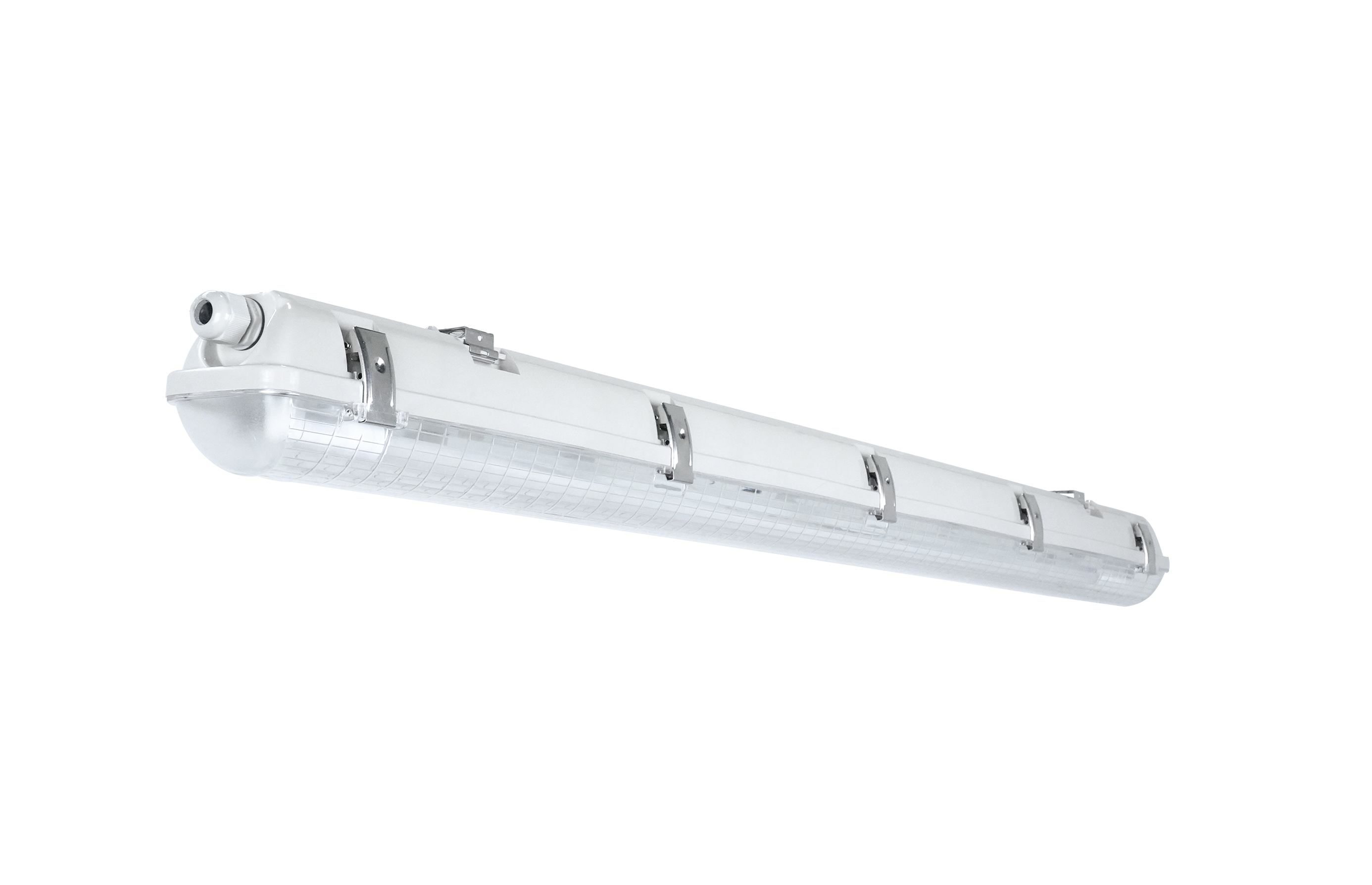

    Single Tube Batten LED T5 or LED T8

    W:90 x H:92 x L:655 mm        W:90 x H:92 x L:1265 mm        W:90 x H:92 x L:1565 mm



    Twin Tube  Batten LED T5 or LED T8

    W:130 x H:92 x L:655 mm        W:130 x H:92 x L:1265 mm        W:130 x H:92 x L:1565 mm

  • Input Voltage / 輸入電壓 / Voltaje de entrada

    AC220 -240V 50/60HZ

  • Power Consumption / 燈具功率

    Consumo de energía Max

    Single Tube Batten  LED T5  or LED T8

    2feet : 7W  - 1 pcs x  7W LED T5  or LED T8           8W  - 1 pcs x 8W LED T5  or LED T8

    2feet : 9W  - 1 pcs x  9W LED T5  or LED T8          10W - 1 pcs x 10W  LED T5  or LED T8

    4feet : 12W  - 1 pcs x 12W  LED T5  or LED T8      14W  - 1 pcs x 14W  LED T5  or LED T8

    4feet : 16W  - 1 pcs x 16W  LED T5  or LED T8      18W  - 1 pcs x  18W LED T5  or LED T8

    4feet : 20W   - 1 pcs x 20W  LED T5  or LED T8

    5feet : 22W  - 1 pcs x  22W  LED T5  or LED T8      25W   - 1 pcs x 25W  LED T5  or LED T8

    5feet : 28W  - 1 pcs x 28W LED T5  or LED T8        30W   - 1 pcs x 30W  LED T5  or LED T8



    Twin Tube Batten  LED T5  or LED T8

    2feet : 14W  - 2 pcs x 7W LED T5  or LED T8        16W  - 2 pcs x 8W LED T5  or LED T8

    2feet : 18W  - 2 pcs x  9W LED T5  or LED T8        20W -  2 pcs x 10W  LED T5  or LED T8

    4feet : 24W  - 2 pcs x 12W  LED T5  or LED T8      28W  - 2 pcs x 14W  LED T5  or LED T8

    4feet : 32W  - 2 pcs x 16W  LED T5  or LED T8      36W  - 2 pcs x  18W LED T5  or LED T8

    4feet : 40W   - 2 pcs x 20W  LED T5  or LED T8

    5feet : 44W  - 2 pcs x  22W  LED T5  or LED T8      50W   - 2 pcs x 25W  LED T5  or LED T8

    5feet : 56W  - 2 pcs x 28W LED T5  or LED T8        60W   - 2 pcs x 30W  LED T5  or LED T8

  • LED Driver Type / LED驅動款式

    Tipo de controlador LED

    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC220-240V 50/60HZ

    2. 1-10V Dimming Driver  AC220-240V 50/60HZ  for DC LED Tube

    3. DALI Dimming Driver AC220-240V 50/60HZ  for DC LED Tube

    4. ZIGBEE Wireless Control (Remoted Driver ) AC220-240V 50/60HZ for DC LED Tube

    5. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia

    6. Microwave Sensor ON/OFF

  • Control Protocol / 控制協議

    Protocolo de Control

    1-10V / DALI / ZIGBEE Wireless

  • Beam Angle / 光束角 / ángulo de haz

    Refer to LED T5 / T8 tube data sheet

  • Photobiological safety (IEC 62471)

    光生物安全檢驗(ICE 62471)

    Seguridad fotobiológica (IEC 62471)

    Low Risk Group 1 (RG1) Refer to LED T5 / T8 Specification

    低風險組1 (RG1) 參閱LED T5 / T8規格

    Grupo de bajo riesgo 1 (RG1) Consulte la especificación LED T5 / T8

  • Housing materials / 外殼材料

    Materiales de la carcasa

    Anti-UV Glass fibre reinforced polyester (GRP) and Polycarbonate Clear Diffuser

    Silicone Gasket, Stainless Steel Toggles and  Stainless-Steel Quick fix bracket

    抗紫外線玻璃纖維增強聚酯 (GRP)和透明擴散器

    矽膠墊片，不銹鋼扣和不銹鋼快速固定夾

    Difusor transparente de policarbonato y poliéster reforzado con fibra de vidrio (FRP) anti-UV.

    Junta de silicona, palancas de acero inoxidable y soporte de fijación rápida de acero inoxidable.

  • Housing Color / 外殼顏色

    color de la carcasa

    Light Grey body and Clear diffuser

    淺灰色主體和透明擴散器

    Cuerpo gris claro y difusor transparente

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / + 40 °C

  • Operating Humidity / 工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing / 不結霜

    sin condensación

  • Ingress Protection / 防護等級 / Protección de ingreso

    IP66

  • Mech impact protection / 機械衝擊保護

    Protección contra impactos mecánicos

    IK10

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC/ EN 60598-1 /  EN 60598-2-1 /  EN 62031 / EN 62493 / IEC/EN 62471 / IEC 60598-2-22 /  IEC 62031 /EN 55015 /  EN 61000-3-2 / EN 61000-3-3 /  EN 61547  / IEC 62262 /  IEC 60529 / IEC TR62778

    Luminaries Performance : IEC 62722-1 / IEC 62722-2-1   FSD regulation PPA 104A (4th Rev). RoHS

  • Certification / 認證 / Certificación

Specification Code

Example Product Code:
BAWATY-32W
SLIM-BAWATY-WATERPROOF-BATTEN
-
POWER
-
CONTROL TYPE

POWER

  • 7W
    1 pcs x 2 feet 7W LED T5 or LED T8
  • 8W
    1 pcs x 2 feet 8W LED T5 or LED T8
  • 9W
    1 pcs x 2 feet 9W LED T5 or LED T8
  • 10W
    1 pcs x 2 feet 10W LED T5 or LED T8
  • 14W
    1 pcs x 4 feet 14W LED T5 or LED T8
  • 14W
    1 pcs x 4 feet 14W LED T5 or LED T8
  • 16W
    1 pcs x 4 feet 16W LED T5 or LED T8
  • 18W
    1 pcs x 4 feet 18W LED T5 or LED T8
  • 20W
    1 pcs x 4 feet 20W LED T5 or LED T8
  • 22W
    1 pcs x 5 feet 22W LED T5 or LED T8
  • 25W
    1 pcs x 5 feet 25W LED T5 or LED T8
  • 28W
    1 pcs x 5 feet 28W LED T5 or LED T8
  • 30W
    1 pcs x 5 feet 30W LED T5 or LED T8
  • 14W
    2 pcs x 2 feet 7W LED T5 or LED T8
  • 16W
    2 pcs x 2 feet 8W LED T5 or LED T8
  • 18W
    2 pcs x 2 feet 9W LED T5 or LED T8
  • 20W
    2 pcs x 2 feet 10W LED T5 or LED T8
  • 24W
    2 pcs x 4 feet 12W LED T5 or LED T8
  • 28W
    2 pcs x 4 feet 14W LED T5 or LED T8
  • 32W
    2 pcs x 4 feet 16W LED T5 or LED T8
  • 36W
    2 pcs x 4 feet 18W LED T5 or LED T8
  • 40W
    2 pcs x 4 feet 20W LED T5 or LED T8
  • 44W
    2 pcs x 5 feet 22W LED T5 or LED T8
  • 50W
    2 pcs x 5 feet 25W LED T5 or LED T8
  • 56W
    2 pcs x 5 feet 28W LED T5 or LED T8
  • 60W
    2 pcs x 5 feet 30W LED T5 or LED T8

CONTROL TYPE

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control
  • AN
    1-10V Dimming
  • DA
    DALI Dimming
  • DMX
    DMX Dimming
  • RDM
    RDM Dimming
  • EM
    Emergency Battery
  • ZI
    ZIGBEE Wireless Control
