DEGSOLA

Dia 86mm - Dia183mm 7W-35W

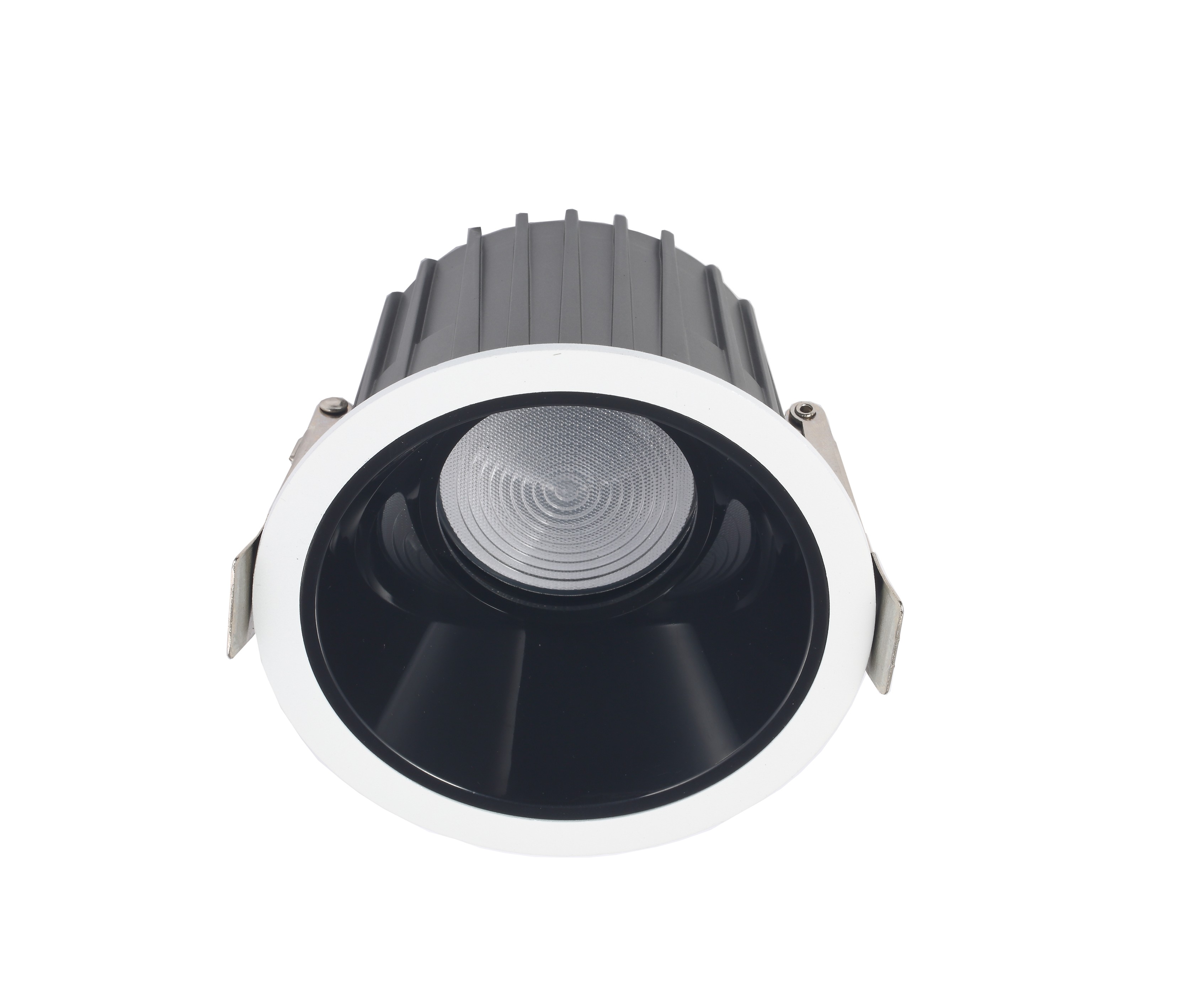

LED Recessed Mount Down Light

This downlight is a deep reflector design, it adopts a high-lumen efficiency COB LED.

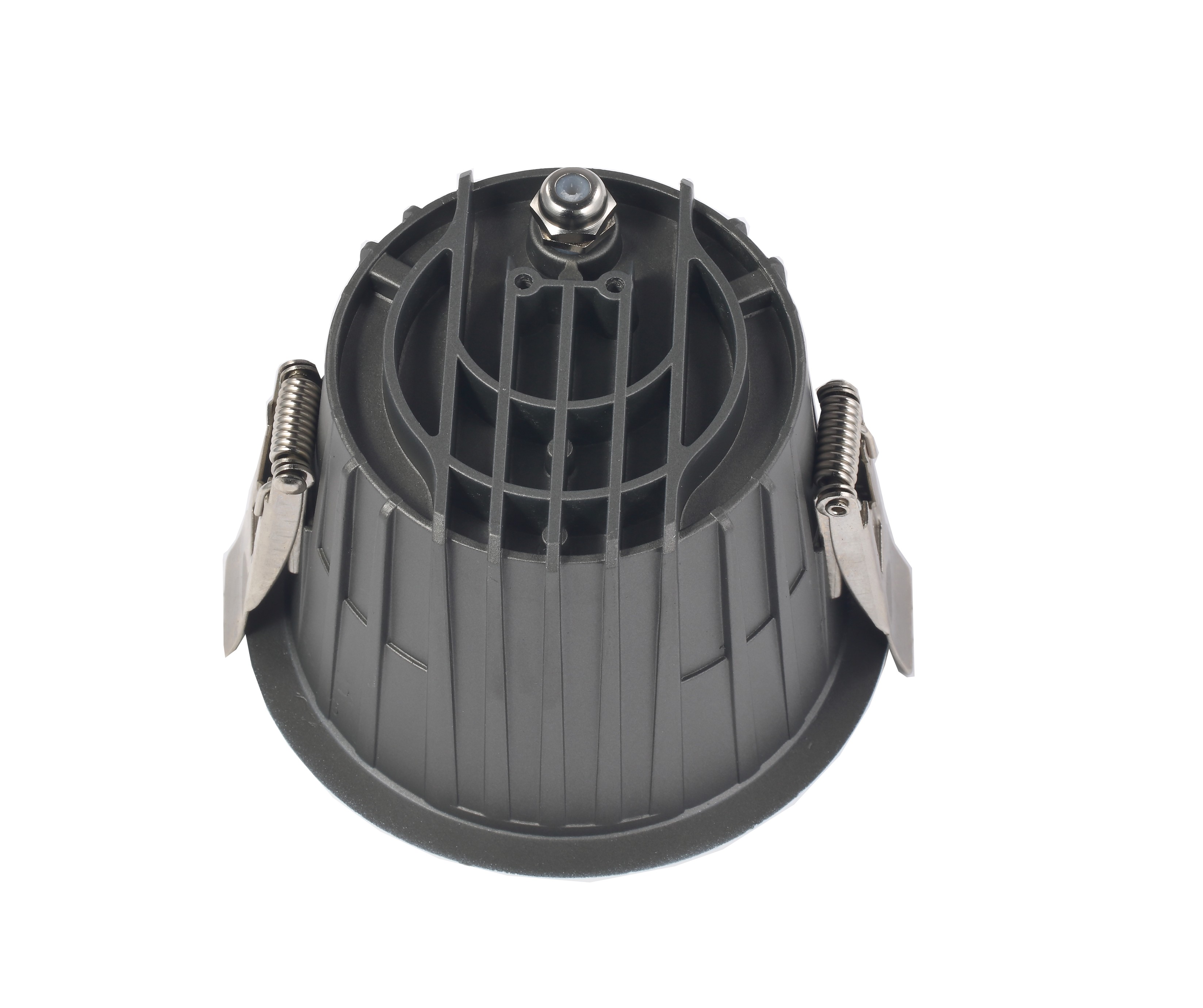

ADC12 Aluminum profile provides excellent thermal dissipation.

Isolated driver solution both in dimmable and non-dimmable version.

Application Areas: It is designed for general lighting applications in offices, supermarkets, shops, schools, hotels, etc. It is also widely used for public areas, such as stairways, lobbies, reception, corridors, etc

Technical Data

Installation method / 安裝方式
Método de instalación

Recessed Mount Type / 嵌入式

Tipo de montaje empotrado
Dimension / 尺寸 / Dimensión

Cut off Dimension / 開孔尺寸 / Cortar Dimensión

Dia: 86mm x H: 65mm Cut: 75mm

Dia: 109mm x H: 74mm Cut: 95mm

Dia: 134mm x H: 95mm Cut: 120mm

Dia: 157mm x H: 110mm Cut: 150mm

Dia: 183mm x H: 124mm Cut: 175mm
Input Voltage / 輸入電壓 / Voltaje de entrada

AC220-240V 50/60Hz
Power Consumption / 燈具功率

Consumo de energía

Dia: 86mm @ 7W 8W 9W

Dia: 109mm @ 10W 12W 14W

Dia: 134mm @ 15W 18W 22W

Dia: 157mm @ 20W 25W 28W

Dia: 183mm @ 28W 30W 35W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Constant Current LED Driver: Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC 220-240V 50/60HZ

2. 1-10V Dimming Driver (1%-100%) AC220-240V 50/60HZ

3. DALI Dimming Driver(1%-100%) AC220-240V 50/60HZ

4. Zigbee Wireless Control Driver AC100-270V 50/60HZ

5. Emergency Backup >2 hours or >3 hours @ < 12 charger hours
LED Driver Features

驅動特性

Funciones del controlador de LED

Power Factor > 0.9

Total Harmonic Distortion: <20%
Control Protocol / 控制協議 / Protocolo de Control

1-10V / DALI / ZIGBEE Wireless Control
Beam Angle / 光束角 / ángulo de haz

24° 45°
Light Source Brand / 光源品牌 / Fuente de luz de marca

CREE / Osam
Lumen Maintenance LM-80 Reported by TM-21

L70 > 50,000 hrs
LED Life / LED壽命 / La vida del LED

>100,000 hours
Color Temperature / 色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index / 顯色指數

Índice de reproducción cromática

> 80
Chromaticity Tolerance (initial Macadam) / 色度容差（初始Macadam）

Tolerancia de cromaticidad (Macadam inicial)

Standard Deviation Colour Matching < 3 SDCM / 標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy / 燈具效率

La eficacia de la luminaria

90 Lm/w (2700K), 100 Lm/w (3000K), 105 Lm/w (4000K),

105 Lm/w (5000K), 105 Lm/w (6500K)
LED Source Luminous Efficacy / LED光源光效

Fuente luminosa LED Eficacia

130Lm/w(2700K), 140 Lm/w(3000K), 150 Lm/w(4000K),

150 Lm/w(5000K), 150 Lm/w(6500K)
Housing materials / 外殼材料

Materiales de la carcasa

Die-cast aluminum housing, PMMA Lens and Polycarbonate Reflector

壓鑄鋁外殼、PMMA 透鏡和聚碳酸酯反射器

Carcasa de aluminio fundido a presión, lente de PMMA y reflector de policarbonato.

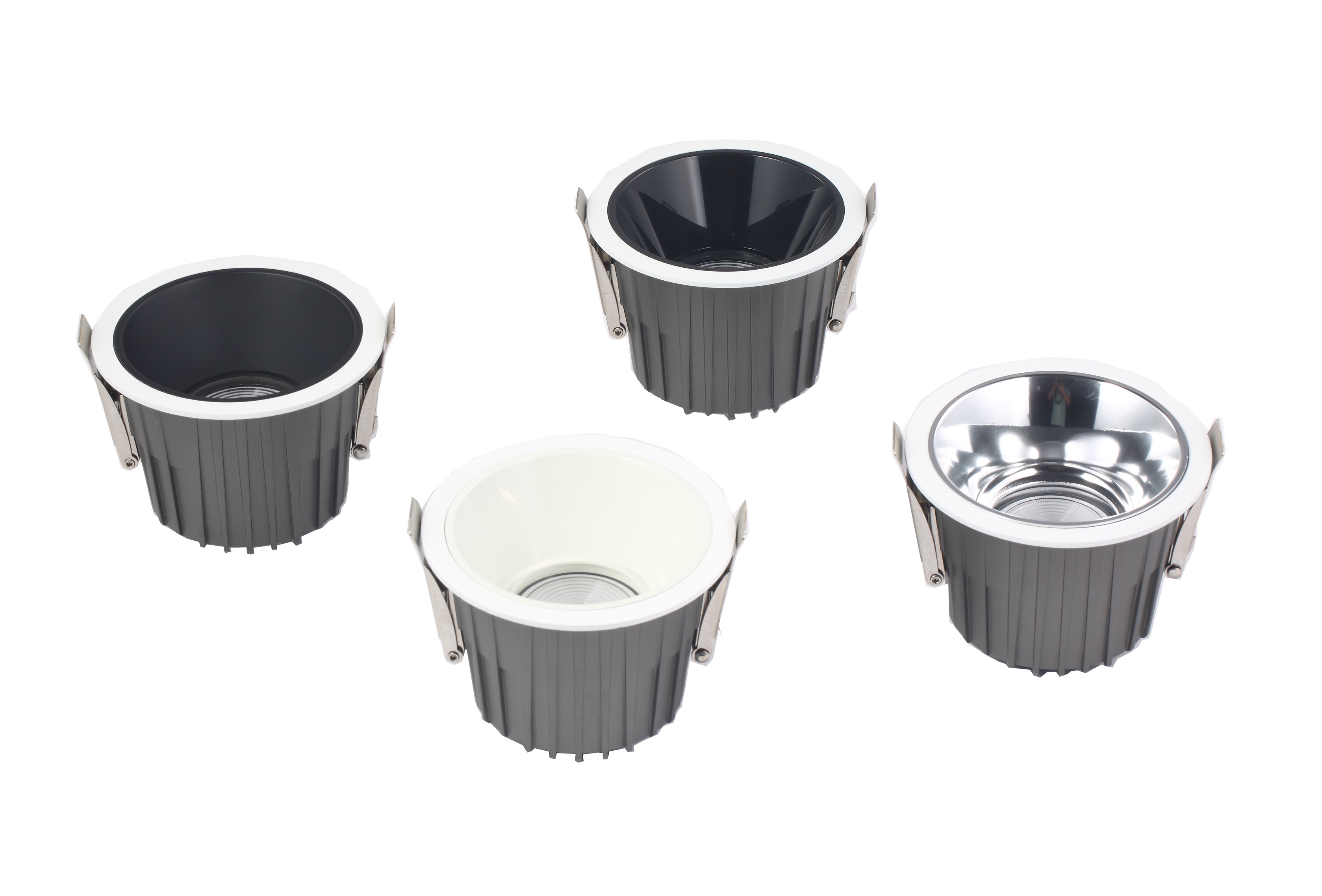

Reflector Color / 反光杯顏色 / Color del reflector

Bright White / Bright Black / Matte Black / Bright Silver

亮白 / 亮黑 / 啞黑 / 亮銀

Blanco brillante / Negro brillante / Negro mate / Plata brillante
Trim Color / 框邊顏色 / Estilo Color

Powder Coating :Matte white

粉末塗料：啞光白色

Recubrimiento en Polvo: Blanco mate
Accessories / 配件 / Accesorios
Honeycomb Louver / No

Honeycomb reduce luminosity by >30%
Ingress Protection / 防護等級

Protección de ingreso

IP20

IP54
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C To +50 °C
Operating Humidity / 工作濕度

Humedad de funcionamiento

0~90%, non-condensing / 不結霜

sin condensación
Comply Testing Standard / 符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC/EN60598-1 ; EN60598-2-1 ;IEC/EN 62031 ;IEC/EN 62493;IEC TR62778 ; IEC62471; RoHS

LED Driver: EN 55015 / EN 61000-3-2 / EN 61347-1 / EN 61347-2-13 / EN 61547 / EN 62384
