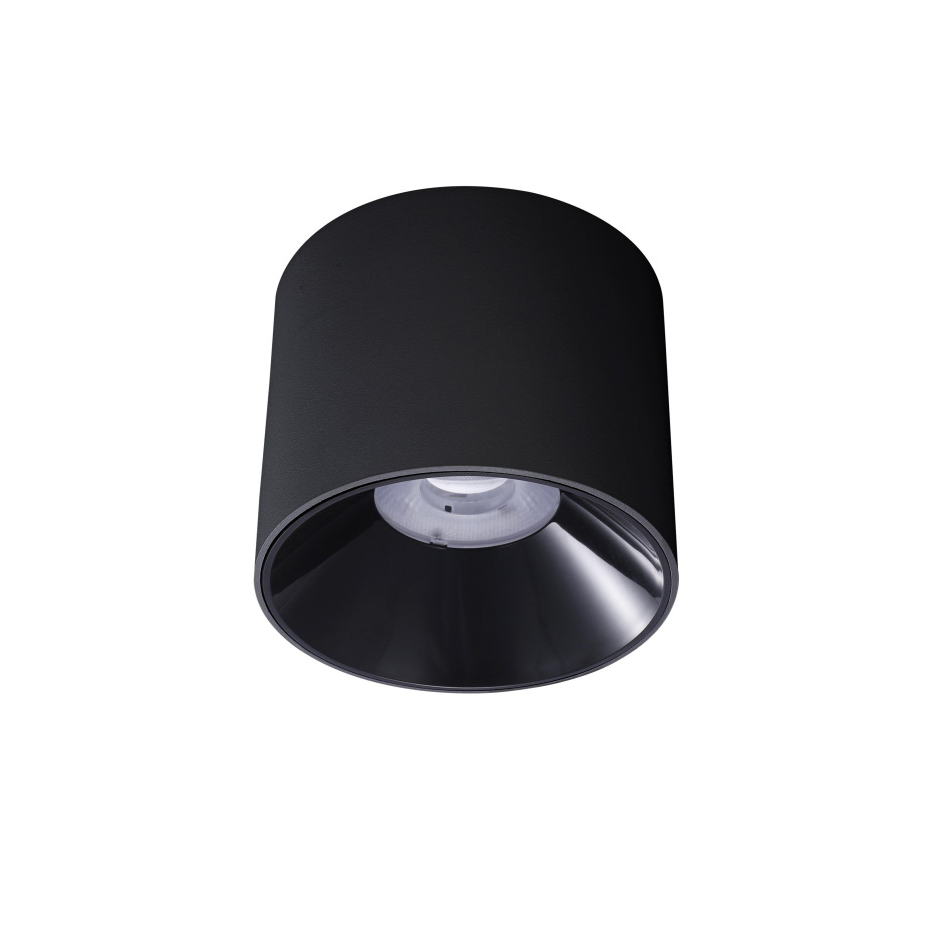

DETON

Dia100, Dia120 & Dia 150mm Max.28W

Surface Mounted Downlight IP20

The integrated design and high-cost performance.
Finished color: Black / White.
100mm,120mm & 150mm diameter for option.
Internal flicker-free driver
Triac dimming is available.
Application Areas: It is designed for general lighting applications in hotels, homes, offices, shops, etc. It is also widely used for public areas such as stairways, lobbies, reception, corridors, etc.

Technical Data

Luminaire Type / 安裝方式 / Tipo de luminaria

Surface Mounted / 明裝式 / Superficie Tipo Montado
Dimension / 尺寸 / Dimensión

Dia 100 x H: 140mm

Dia 120 x H: 150mm

Dia 150 x H: 160mm
LED Type / LED種類 / Lámpara LED

COB
Power Consumption / 燈具功率

Consumo de energía

8W 10W 15W @ Dia100 x H:140mm

8W 15W 20W @ Dia120 x H:150mm

20W 25W 28W @ Dia150 x H:160mm
Input Voltage / 輸入電壓 / Voltaje de entrada

AC 220-240V 50/60HZ
LED Driver Type / LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver-Refer to LED driver specification

請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC220-240V 50/60HZ

2. 0-10V Dimmable Driver AC220-240V 50/60HZ

3. DALI Dimmable Driver AC220-240V 50/60HZ

4. Emergency Battery Backup >2 hours or >3 hours
LED Driver Features / 驅動特性

Funciones del controlador de LED

Power Factor > 0.9

Total Harmonic Distortion: <20%
Control Protocol / 控制協議

Protocolo de Control

0-10V / DALI / ZIGBEE Wireless
Beam Angle / 光束角 / ángulo de haz

15° 24° 36° 50°
Light Source Brand / 光源品牌 / Fuente de luz de marca

CREE / Osram / Bridgelux
Lumen Maintenance LM-80 Reported by TM-21

L70 > 54,000 hrs
LED Life / LED壽命 / La vida del LED

>100,000 hours
Color Temperature / 色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index / 顯色指數

Índice de reproducción cromática

> 80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy / 燈具效率

La eficacia de la luminaria

90 LM/W (2700K), 90 LM/W (3000K), 100 LM/W((4000K),

100 LM/W (5000K), 100 LM/W (6500K)

Remarks: Honeycomb louver will reduce luminosity by >30%
LED Source Luminous Efficacy / LED光源光效

Fuente luminosa LED Eficacia

130 LM/W (2700K), 140 LM/W (3000K), 150 LM/W (4000K),

150 LM/W (5000K), 150 LM/W (6500K)
Housing materials / 外殼材料

Materiales de la carcasa

Die-cast aluminum housing, PMMA Lens and Polycarbonate Reflector

壓鑄鋁外殼、PMMA 透鏡和聚碳酸酯反射器

Carcasa de aluminio fundido a presión, lente de PMMA y reflector de policarbonato.
Housing Color / 外殼顏色

color de la carcasa

Powder Coating :Matte white / Matte Black

粉末塗料：啞光白色 / 啞光黑色

Recubrimiento en Polvo: Blanco mate / Negro mate
Accessories / 配件 / Accesorios
Honeycomb Louver / No
Reflector Color / 反光杯顏色 / Reflector color

Bright White / Bright Black / Matte White / Matte Black

亮白 / 亮黑 / 啞白 / 啞黑

Blanco brillante / Negro brillante / Blanco mate / Negro mate
Ingress Protection / 防護等級

Protección de ingreso

IP20
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +40 °C
Operating Humidity / 工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC/EN 60598-1 ; IEC/EN 60598-2-1 ; IEC/ EN62493 ; IEC/EN 62301 ; IEC TR 62778 & IEC 62471 (RG0)

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
