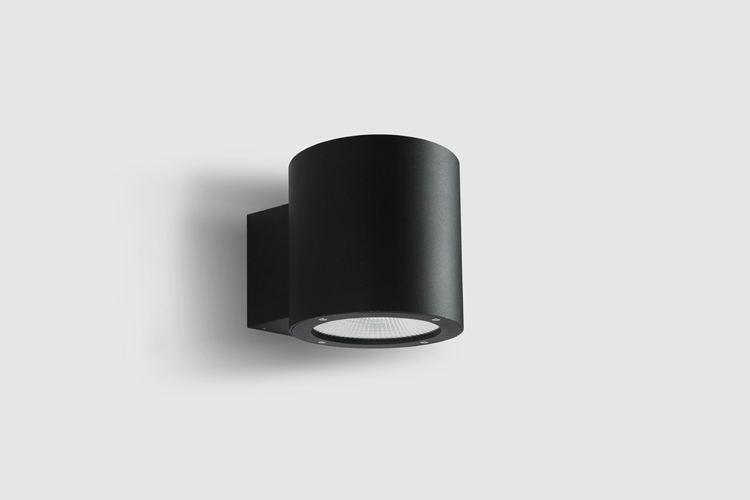

WALENA-SS

Dia80mm Dia100mm Dia150mm & Dia200mm

Up and Down Wall Light

LED OUTDOOR WALL LIGHT

Housing: Extrusion aluminium housing with corrosion -resistance powder coating and die-cast aluminium housing.
Anti-glare and high purity anodized aluminum reflector to distribute comfortable light
Tempered and safe glass and Screw-Less installation
Ingress Protection: IP66 and Mech impact protection: IK08
LED module: high-power CREE LEDs Array, CRI>80 or >95, LM-80 performance approval >50,000 hours.
Integrated 0-10V, DALI constant current LED Driver

Technical Data

Installation method / 安裝方式

Método de instalación

Wall Mounted / 壁掛式燈具

Montado en la pared
Dimension / 尺寸 / Dimensión

Dia 80 x H 100mm Dia 80 x H 150mm Dia 80 x H 200mm

Dia 100 x H 100mm Dia 100 x H 150mm Dia 100 x H 200mm

Dia 150 x H 150mm Dia 150 x H 200mm Dia 150 x H 300mm

Dia 150 x H 150mm Dia 150 x H 200mm Dia 150 x H 300mm Dia 150 x H 400mm

Dia 200 x H 200mm Dia 200 x H 300mm Dia 200 x H 400mm Dia 200 x H 600mm
Input Voltage / 輸入電壓 / Voltaje de entrada

AC 220-240V 50/60HZ
Power Consumption / 燈具功率

Consumo de energía

Down Light or Up Light:

Dia 80mm @ 5W 8W 10W

Dia 100mm @ 5W 8W 10W 15W

Dia 150mm @ 15W 20W 25W 30W 35W 40W

Dia 200mm @ 30W 35W 40W 45W 50W

Down Light or Up Light:

Dia 80mm & Dia 100mm @ 10W 16W

Dia 150mm @ 30W 40W 50W 60W 70W 80W

Dia 200mm @ 60W 70W 80W 90W 100W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC220-240V 50/60HZ

2. 0/1 -10V Dimming Driver AC220-240V 50/60HZ

3. DALI Dimming Driver AC220-240V 50/60HZ

4. Remote Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池
LED Driver Features / 驅動特性

Funciones del controlador de LED

Power Factor: >0.9

Total Harmonic Distortion: <20%
Beam Angle / 光束角 / ángulo de haz

12° 24° 36° 60°
Light Source Brand / 光源品牌

Fuente de luz de marca

CREE / Bridgelux
Photobiological safety IEC 62471

光生物安全檢驗 IEC 62471

Seguridad fotobiológica IEC 62471

Risk Group 1 (RG1)

1 類危險（低危）

Grupo de riesgo 1
Lumen Maintenance LM-80 Reported by TM-21

L70 > 54,000 hrs
LED Life / LED壽命 / La vida del LED

>100,000 hours
Color Temperature / 色溫

Temperatura del color

3000K / 4000K / 5000K / 6500K
Color Rendering Index / 顯色指數

Índice de reproducción cromática
- > 80
- > 90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy / 燈具效率

La eficacia de la luminaria

CRI80: 90 LM/W (3000K) 95 LM/W (4000K) 100 LM/W (5000K) 100 LM/W (6500K)

CRI90: 80 LM/W (3000K) 85 LM/W (4000K) 90 LM/W (5000K) 90 LM/W (6500K)
LED Source Luminous Efficacy / LED光源光效

Fuente luminosa LED Eficacia

CRI80: 130 LM/W (3000K) 140 LM/W (4000K) 150 LM/W (5000K) 150 LM/W (6500K)

CRI90: 125 LM/W (3000K) 130 LM/W (4000K) 135 LM/W (5000K) 135 LM/W (6500K)
Housing Materials / 外殼材料

Materiales de la carcasa

Die-cast aluminum housing, Aluminum reflector and Tempered glass diffuser

壓鑄鋁外殼、鋁反射器和強化玻璃擴散器

Carcasa de aluminio fundido a presión, reflector de aluminio y difusor de vidrio templado.
Housing Color / 外殼顏色

color de la carcasa

Matte Black RAL 9005 / Matte White RAL 9003 / Matte Gray RAL 9006

RAL 9005 / 啞光白色燈身 RAL9003 / 啞光灰色燈身 RAL 9006

Matte Black RAL 9005 / Matte Blanco RAL 9003 / Gris Mate RAL 9006
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / + 40 °C
Operating Humidity / 工作濕度

Humedad de funcionamiento

0~90%, non-condensing / 不結霜

sin condensación
Ingress Protection / 防護等級

Protección de ingreso

IP66
Mech impact protection / 機械衝擊保護

Protección contra impactos mecánicos

IK08
Comply Testing Standard 符合測試標準

Cumplir el estándar de prueba

LED Luminaries: EN 60598-1;EN 60598-2-1; IEC TR62778 IEC62471 ; IEC 62031; RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015
